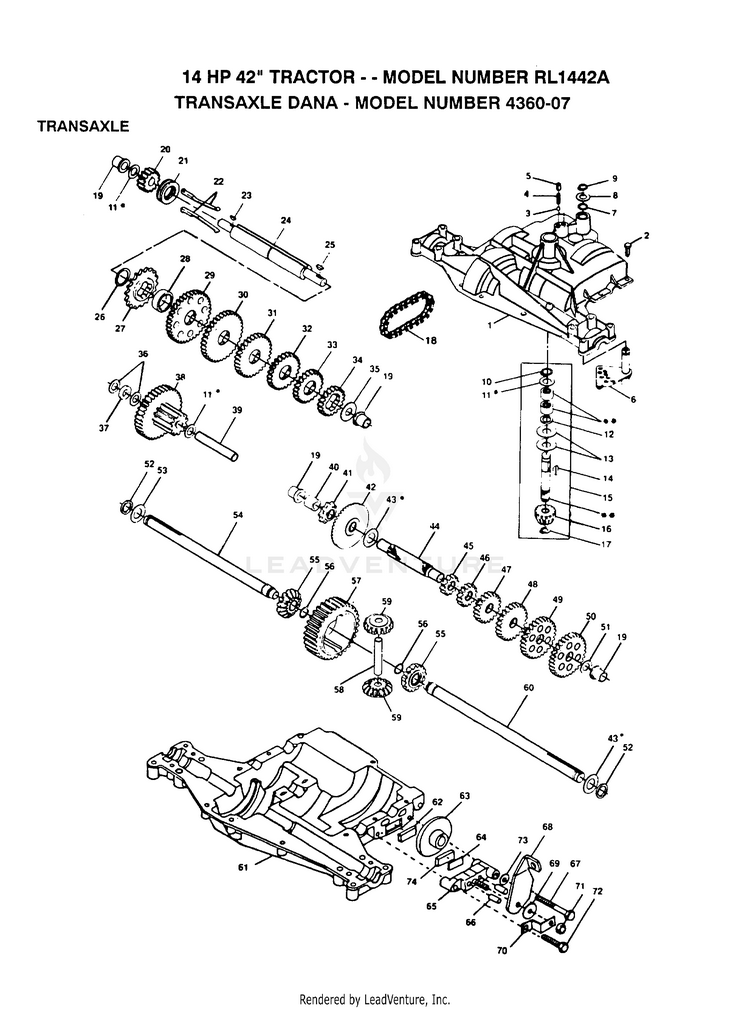

Husqvarna RL1442A (1992) Tractor

Model: RL1442A (1992)

Back To Assemblies

Save Part Not Listed?
product name

TRANSAXLE

...
...
1
HOUSING UPPER HUS-3865
...
2
SCREW HUS-1919
...
3
BALL DETENT HUS-1151
...
4
SPRING, DETENT HUS-3626
...
5
SCREW, SET HUS-3623
...
6
ASSY SHIFTER HUS-4336
...
7
O-RING HUS-3884
...
8
WASHER PLAIN HUS-3885
...
xx
WASHER PLAIN HUS-3886
...
xx
WASHER PLAIN HUS-3887
...
xx
WASHER PLAIN HUS-3888
...
xx
WASHER PLAIN HUS-3889
...
xx
WASHER PLAIN HUS-3121
...
xx
WASHER PLAIN HUS-3890
...
9
RING RETAINING HUS-1100
...
10
RING RETAINING HUS-1099
...
11
WASHER PLAIN HUS-1959
...
xx
WASHER PLAIN HUS-1441
...
xx
WASHER, PLAIN .632 X 1.00 X .026 HUS-1423
...
xx
WASHER PLAIN HUS-1082
...
xx
WASHER PLAIN HUS-1424
...
xx
WASHER PLAIN HUS-1068
...
xx
WASHER PLAIN HUS-1425
...
xx
WASHER PLAIN HUS-1358
...
xx
WASHER, PLAIN .632 X 1.00 X .060 HUS-1145
...
xx
WASHER PLAIN HUS-1319
...
12
O-RING HUS-3312
...
13
WASHER, PLAIN .632 X 1.38 X .046 HUS-3876
...
14
KEY WOODRUFF #9 HUS-1374
...
15
ASSY KIT INPUT SHAFT HUS-4134
...
16
PINION, BEVEL, 14 TEETH HUS-3590
...
17
RING, RETAINING HUS-3624
...
18
CHAIN, 24 PITCHES HUS-3625
...
19
BEARING, FLANGE HUS-1542
...
20
GEAR SPUR, 14 TEETH HUS-3773
...
21
COLLAR CLUTCH HUS-3631
...
22
KEY CLUTCH HUS-3828
...
23
KEY WOODRUFF #3 HUS-1369
...
24
SHAFT INTERMEDIATE HUS-3883
...
25
KEY, WOODRUFF, #61 HUS-1375
...
26
RING, RETAINING HUS-3627
...
27
SPROCKET, 18 TEETH HUS-3830
...
28
SPACER HUS-3841
...
29
GEAR, SPUR, 37 TEETH HUS-3786
...
30
GEAR, SPUR, 35 TEETH HUS-3785
...
31
GEAR, SPUR, 30 TEETH HUS-3867
...
32
GEAR, SPUR, 25 TEETH HUS-3783
...
33
GEAR, SPUR, 22 TEETH HUS-3869
...
34
GEAR SPUR HUS-3741
...
35
WASHER, PLAIN .640 X 1.37 X .061 HUS-3628
...
36
WASHER, PLAIN .632 X 1.00 X .026 HUS-1423
...
37
SPACER .630 X 1.00 X .169 HUS-3422
...
38
ASSY GEAR COMB 12&35 TEETH HUS-4286
...
39
SHAFT IDLER HUS-3877
...
40
SPACER .635 X .875 X .755 HUS-3901
...
41
SPROCKET, 9 TEETH HUS-3645
...
42
GEAR, BEVEL, 42 TEETH HUS-3853
...
43
WASHER PLAIN HUS-3749
...
xx
WASHER PLAIN HUS-3652
...
xx
WASHER PLAIN HUS-3693
...
xx
WASHER PLAIN HUS-3653
...
xx
WASHER PLAIN HUS-3408
...
xx
WASHER PLAIN HUS-3732
...
xx
WASHER, PLAIN .758 X 1.25 X .031 HUS-3184
...
xx
WASHER PLAIN HUS-3733
...
xx
WASHER PLAIN HUS-3198
...
xx
WASHER PLAIN HUS-3734
...
xx
WASHER PLAIN HUS-3735
...
xx
WASHER PLAIN HUS-3736
...
xx
WASHER PLAIN HUS-3180
...
44
SHAFT, DRIVE HUS-3882
...
45
GEAR, SPUR, 12 TEETH HUS-3646
...
46
GEAR SPUR, 15 TEETH HUS-3707
...
47
GEAR, SPUR, 20 TEETH HUS-3866
...
48
GEAR, SPUR, 25 TEETH HUS-3719
...
49
GEAR, SPUR, 28 TEETH HUS-3868
...
50
GEAR, SPUR, 31 TEETH HUS-3683
...
51
WASHER, PLAIN .632 X 1.00 X .060 HUS-1145
...
52
SEAL FELT HUS-3191
...
53
WASHER PLAIN HUS-3180
...
54
AXLE LEFT HAND HUS-3880
...
55
GEAR, MITER, 15 TEETH HUS-3780
...
56
RING, RETAINING HUS-3656
...
57
GEAR, SPUR, 32 TEETH HUS-3839
...
58
SHAFT, CROSS HUS-3919
...
59
GEAR, MITER, 15 TEETH HUS-3781
...
60
AXLE, R.H. HUS-3881
...
61
HOUSING LOWER HUS-3864
...
62
PUCK, FRICTION HUS-3920
...
63
DISC, BRAKE HUS-3276
...
64
SPACER HUS-3758
...
65
JAW, BRAKE HUS-3916
...
66
PIN, DOWEL HUS-3843
...
67
SCREW TAPPING HUS-3915
...
68
LEVER, ACTUATING HUS-3768
...
69
WASHER, PLAIN .321 X 1.00 X .055 HUS-3760
...
70
BRACKET, ANTI-ROTATION HUS-3917
...
71
LOCKNUT 5/16-24 HUS-3847
...
72
SCREW TAPPING HUS-3724
...
73
WASHER PLAIN HUS-3906
...
74
PUCK, FRICTION HUS-3907
...
75
GREASE HUS-4300
