product name

Husqvarna RL1238D (1992) Tractor

Model: RL1238D (1992)

Back To Assemblies

Save Part Not Listed?
product name

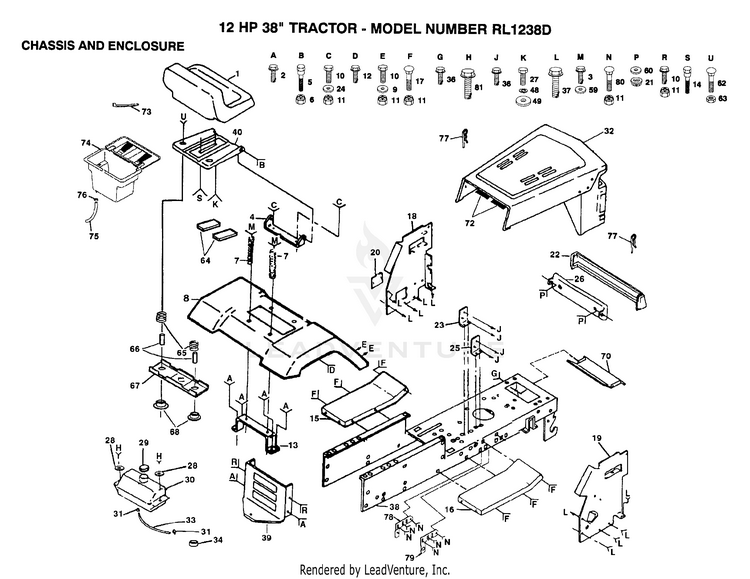

CHASSIS AND ENCLOSURES

...
...
1
SUB= 140119 HUS-127423X
...
2
SCREW HUS-17490612
...
3
SCREW GTV HUS-17490616
...
4
SUB= 140551 HUS-126656X
...
5
SUB= 139888 HUS-105529X
...
6
SUB= 73690500 HUS-73680500
...
7
SPRING COMPRESSIO HUS-124181X
...
8
FENDER HUS-109872X419
...
9
WASHER HUS-19131312
...
10
SUB= 74780612 HUS-74760612
...
11
SUB= 73690600 HUS-73680600
...
12
SCREW LT HUS-17490608
...
13
SUB= 136619 HUS-109873X
...
14
"BOLT,SHOULDER" HUS-127018X
...
15
FOOTREST LH HUS-105476X419
...
16
FOOTREST HUS-105475X419
...
17
BOLT HUS-72110606
...
18
DASH PANEL LH HUS-135464
...
19
SUB= 155934X010 HUS-124031X
...
20
COVER ACCESS HUS-121794X
...
21
PAL NUT LT HUS-108067X
...
22
SUB= 133954 HUS-133805
...
23
SWITCH BRACKET HUS-130890
...
24
WASHER HUS-19131210
...
25
BRACKET LT HUS-108236X
...
26
SUB= 918132257 HUS-132257
...
27
BOLT HUS-74780814
...
28
WASHER HUS-19091416
...
29
SUB= 158990 HUS-123549X
...
30
TANK.FUEL.LT. HUS-109202X
...
31
HOSE CLAMP HUS-123487X
...
32
HOOD/GRILL ASM HUS-133956X419
...
33
FUEL LINE T HUS-8548R
...
34
SUB= 532124028 HUS-124028X
...
35
SCREW HUS-17490612
...
36
SCREW HUS-17021008
...
37
SCREW LT HUS-17490608
...
38
SUB= 145501 HUS-135034
...
39
DRAWBAR LT/YT HUS-127866
...
40
SUB= 155925 HUS-131451
...
48
LOCKWASHER HUS-10040800
...
49
WASHER HUS-19171912
...
59
WASHER HUS-19131614
...
60
WASHER PM HUS-19091216
...
62
SUB= 872050411 HUS-72050411
...
63
SUB= 73900400 HUS-123976X
...
64
STRIP FORM HUS-121251X
...
65
SPRING HUS-121250X
...
66
SPACER SPLIT HUS-121249X
...
67
BRKT SWITCH HUS-121246X
...
68
BUSHING HUS-121248X
...
70
HEAT SHIELD HUS-128953
...
72
SUB= 532126938 HUS-126938X
...
73
WIRE TIE HUS-7192 J
...
74
SUB= 156417 HUS-129965
...
75
SUB= 109238X HUS-105687X
...
76
HOSE CLAMP T HUS-109596X
...
77
SPRING.RETAINER HUS-4921H
...
78
BRKT ASM PIVOT LH HUS-134618
...
79
BRKT ASM PIVOT RH HUS-134617
...
80
BOLT HUS-72140606
...
81
SCREW HEX CRT HUS-17490412
