Husqvarna RL1136A (1993) Tractor

Model: RL1136A (1993)

Back To Assemblies

Save Part Not Listed?
product name

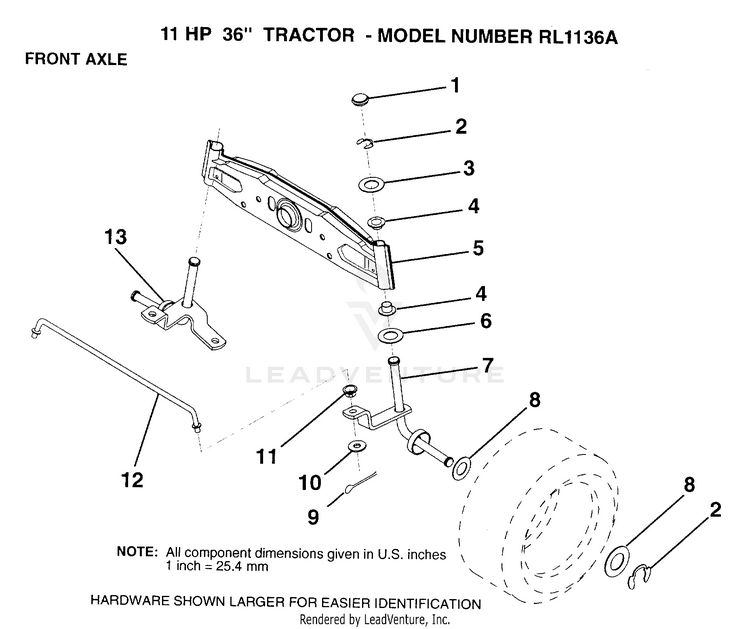

FRONT AXLE

...
...
1
CAP HUS-121232X
...
2
RING HUS-12000029
...
3
WASHER HUS-121748X
...
4
NYLINER HUS-121922X
...
5
AXLE FRONT HUS-121914X
...
6
WASHER .T HUS-6266H
...
7
SPINDLE RH HUS-121919X
...
8
WASHER HUS-121749X
...
9
COTTER PIN HUS-76020412
...
10
WASHER HUS-19131316
...
11
BUSHING.DRAGLINK HUS-126847X
...
12
ROD TIE HUS-121924X
...
13
SPINDLE LH HUS-121916X
Schematic Image Zoomed
