Husqvarna RL10L36C (1994) Tractor

Model: RL10L36C (1994)

Back To Assemblies

Save Part Not Listed?
product name

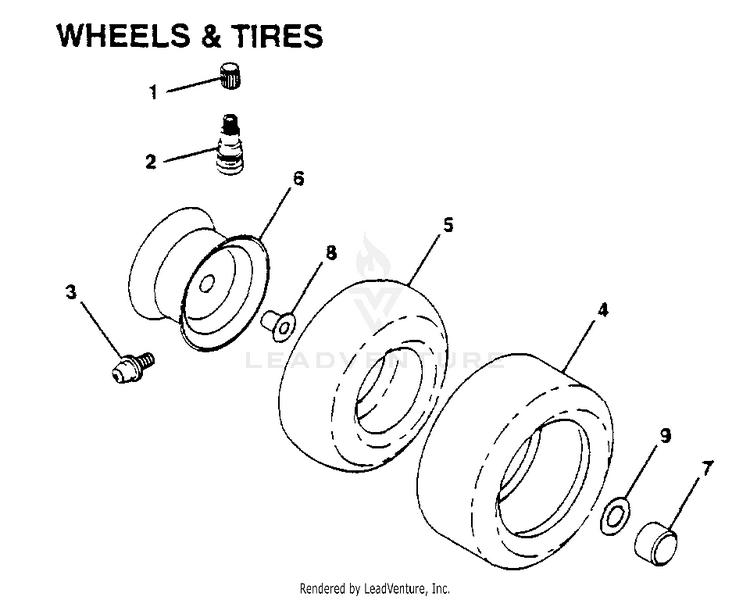

WHEELS AND TIRES

...
...
1
VALVE CAP HUS-59192
...
2
VALVE STEM LT HUS-65139
...
3
FITTING LT HUS-278H
...
4
SUB= 123410X HUS-124142X
...
4A
SUB= 122075X HUS-124143X
...
5
TUBE.5.3/4.5/6 HUS-59904
...
6
SUB= 137237X427 HUS-122394X427
...
6A
"RIM ASM REAR 8""" HUS-140325X427
...
7
HUB CAP HUS-104757X
...
8
"FLANGE, BEARING" HUS-9040H
...
9
WASHER HUS-121748X
