product name

Husqvarna RL10L36A (1992) Tractor

Model: RL10L36A (1992)

Back To Assemblies

Save Part Not Listed?
product name

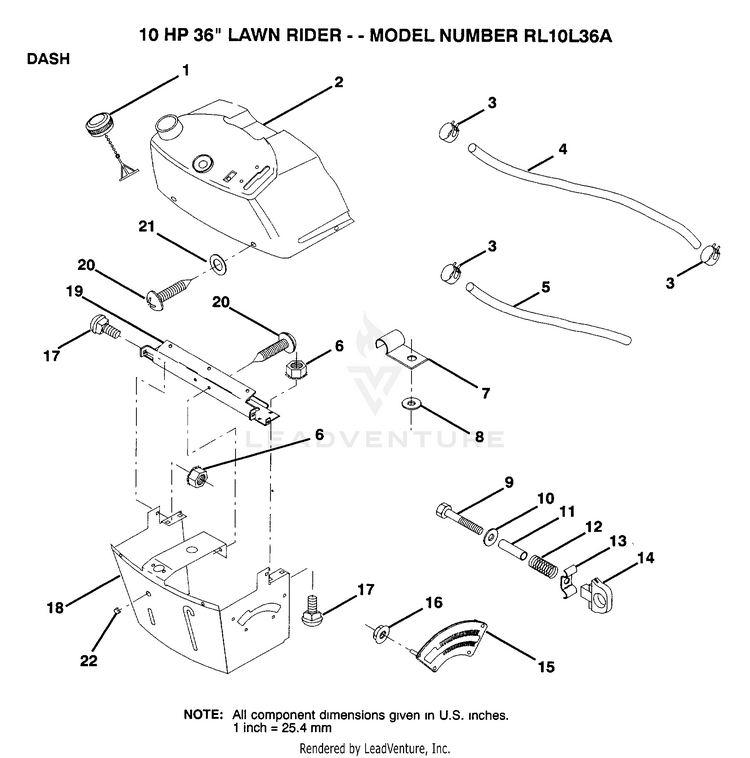

DASH

...
...
1
SUB= 141523 HUS-122015X
...
2
SUB= 138393 HUS-130913
...
3
HOSE CLAMP HUS-123487X
...
4
SUB= 295J HUS-8544R
...
5
FUEL LINE T HUS-8548R
...
6
NUT HUS-73510400
...
7
CLIP T HUS-2751R
...
8
WASHER PM HUS-19091216
...
9
BOLT HUS-74760428
...
10
WASHER HUS-19091413
...
11
SPACER SPLIT HUS-121249X
...
12
SPRING M HUS-3720R
...
13
"KNOB,HGT RETAINER" HUS-126450X
...
14
KNOB HUS-126115X
...
15
ADJ QUARDRANT HEIGHT HUS-122023
...
16
NUT HUS-124346X
...
17
BOLT HUS-72110404
...
18
SUPT ASSY DASH HUS-130745
...
19
CROSS BRACE HUS-134744
...
20
SUB= 818000408 HUS-18000408
...
21
WASHER HUS-19090816
...
22
PLUG DOME HUS-134014
