Husqvarna RL1036AR (1999 & Before) Tractor

Model: RL1036AR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

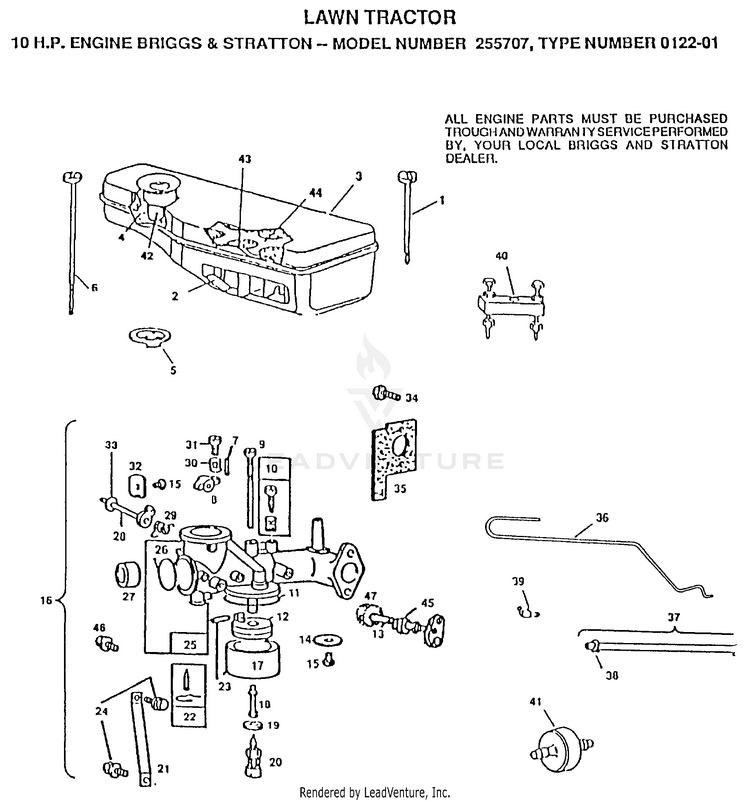

10HP ENGINE/B&S

...
...
1
SCREW HUS-93323
...
2
SUPPORT, AIR CLEANER ELEMENT HUS-280118
...
3
CLEANER ASSY, AIR HUS-391786
...
4
ELEMENT, AIR CLEANER HUS-270843
...
5
GASKET, AIR CLEANER HUS-270853
...
6
SCREW HUS-93622
...
7
PIN, THROTTLE STOP HUS-93043
...
8
STOP, THROTTLE HUS-211712
...
9
NOZZLE CARBURETOR HUS-299740
...
10
VALVE ASSEMBLY, CARBURETOR IDLE SCREW, SEMS HUS-292681
...
11
GASKET, FLOAT BOWL HUS-270511
...
12
FLOAT, CARBURETOR HUS-299707
...
13
SHAFT & LEVER, THROTTLE HUS-491006
...
14
VALVE, THROTTLE HUS-222433
...
15
SCREW HUS-93499
...
16
CARBURETOR ASSY HUS-491562
...
17
BOWL, FLOAT HUS-221995
...
18
SCREW HUS-231323
...
19
WASHER HUS-222014
...
20
VALVE, NEEDLE HUS-396568
...
21
BRACKET, CARBURETOR HUS-222311
...
22
VALVE, FUEL INLET HUS-394681
...
23
PIN, FLOAT HINGE HUS-230896
...
24
SCREW HUS-93572
...
25
BODY ASSY, CARBURETOR HUS-391787
...
26
PLUG WELSH HUS-221997
...
27
VENTURI - CARBURETOR HUS-213115
...
28
SHAFT & LEVER, CHOKE HUS-390684
...
29
SPRING, CHOKE RETURN HUS-261116
...
30
SPRING, THROTTLE ADJUSTMENT HUS-26157
...
31
SCREW, MACHINE, FILLISTER HEAD HUS-91920
...
32
VALVE, CHOKE HUS-222010
...
33
WASHER, FOAM HUS-270382
...
34
SCREW, SEMS, CARBURETOR MOUNTING HUS-93357
...
35
GASKET, CARBURETOR HUS-270872
...
36
LINK, CHOKE HUS-261610
...
37
HOSE (CUT TO SUIT) HUS-393815
...
38
CLAMP, HOSE, GREEN HUS-93053
...
39
CONNECTOR, FUEL PIPE HUS-67218
...
40
PULLER, FLYWHEEL HUS-19203
...
41
FILTER, FUEL HUS-298090
...
42
CUP, AIR CLEANER SUPPORT HUS-222380
...
43
SPACER, AIR CLEANER HUS-222495
...
44
SCREEN, AIR CLEANER HUS-222382
...
45
SEAL, THROTTLE SHAFT HUS-398970
...
46
SCREW, SEMS, HEX HEAD HUS-93543
...
47
WASHER, THROTTLE SHAFT, FOAM HUS-271853
...
xx
CARBURETOR OVERHAUL KIT HUS-394698
...
xx
GASKET SET HUS-393411
