Husqvarna RIDER 15V2 AWD - 965200801 (2008-01) Riding Mower

Model: RIDER 15V2 AWD - 965200801 (2008-01)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
5
Washer HUS-735216400
...
13
HEAT PROTECTOR HUS-544248301
...
10
NEEDS DESCRIPTION HUS-544335702
...
19
GASKET HUS-535414236
...
1
MOTOR HUS-535451901
...
14
BOLT HUS-506597401
...
7
PIPE HUS-535447901
...
9
CLAMP ASSY EXHAUST HUS-501152201
...
16
PLUG HUS-535414460
...
3
SCREW HUS-725245951
...
4
WASHER BRB 8.4X17 HUS-734116401
...
18
JOINT HUS-535414416
...
12
CLAMP ASSY EXHAUST HUS-501152201
...
17
HUS-531001190
...
2
SCREW HUS-725245751
...
6
LOCKNUT M8 HUS-732211801
...
8
PIPE KAWASAKI HUS-544013301
...
11
SCREW HUS-725236461
...
15
SPRINGWASHER HUS-506839401

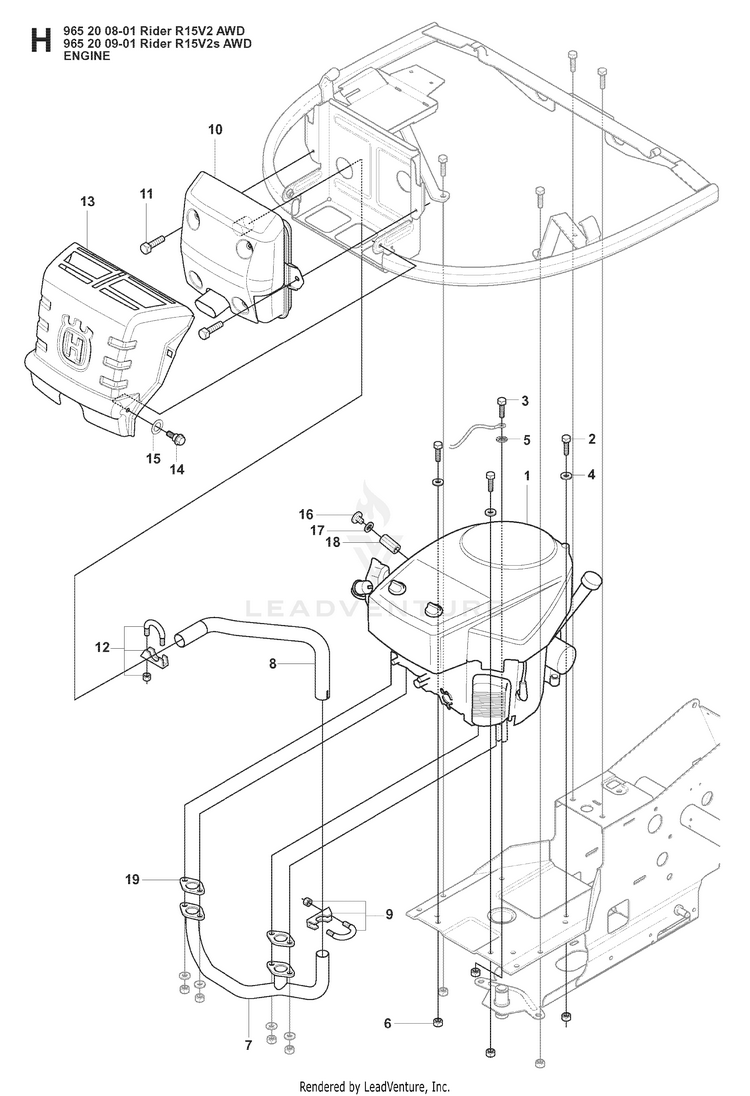

Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
