Husqvarna RIDER 15V2 AWD - 965200801 (2008-01) Riding Mower

Model: RIDER 15V2 AWD - 965200801 (2008-01)

Back To Assemblies

Save Part Not Listed?
product name

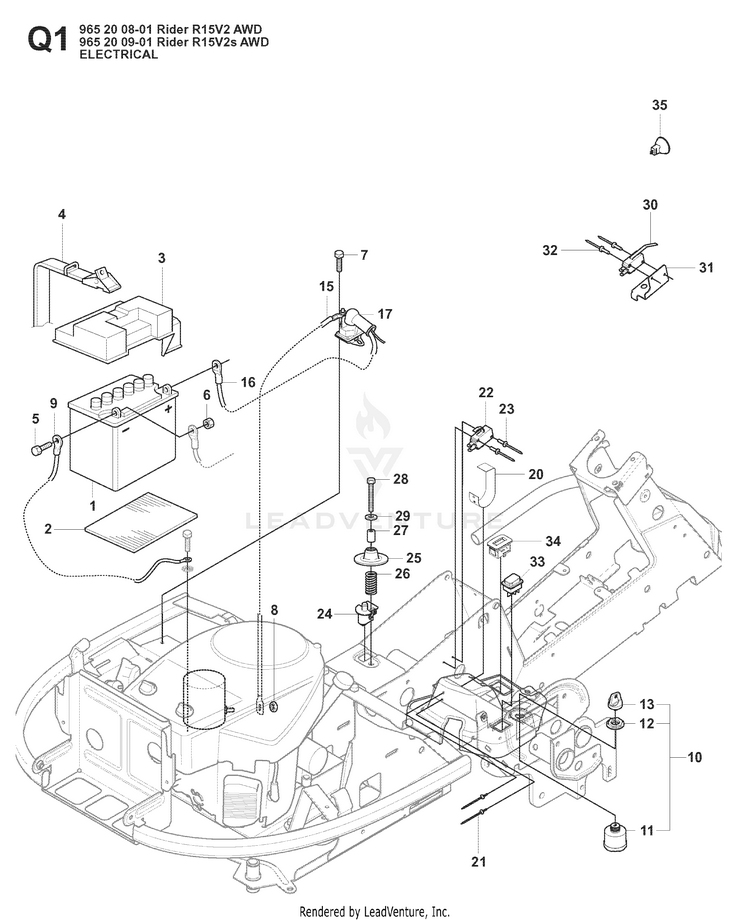

ELECTRICAL 2

...
...
30
MICRO SWITCH HUS-574316101
...
25
WASHER HUS-506909701
...
20
SPRING HUS-506909301
...
27
SPACER TUBE HUS-506909902
...
5
SCREW HUS-725237071
...
29
WASHER BRB 8.4X17 HUS-734116401
...
32
RIVET HUS-544440701
...
8
NUT HUS-506899801
...
26
SPRING HUS-544441201
...
22
SWITCH HUS-574316001
...
33
NEEDS DESCRIPTION HUS-502655701
...
2
MAT HUS-535441101
...
1
BATTERY HUS-531031071
...
24
SWITCH HUS-506909601
...
21
Rivet HUS-722783902
...
28
SCREW HUS-725246351
...
4
BELT HUS-506836802
...
7
SCREW HUS-725236461
...
10
IGNITION SWITCH HUS-544442101
...
34
NEEDS DESCRIPTION HUS-502653001
...
3
Cover HUS-506809901
...
17
RELAY HUS-544439801
...
31
BRACKET HUS-544415701
...
16
RP CABLE HUS-544926101
...
23
RIVET HUS-544440701
...
12
NUT HUS-544442301
...
11
IGNITION SWITCH HUS-544442201
...
13
IGNITION KEY HUS-544442401
...
6
NUT HUS-731231601
...
9
CABLE HUS-544967601
...
15
CABLE HUS-544928601
