Husqvarna RIDER 15V2 AWD - 965200801 (2008-01) Riding Mower

Model: RIDER 15V2 AWD - 965200801 (2008-01)

Back To Assemblies

Save Part Not Listed?
product name

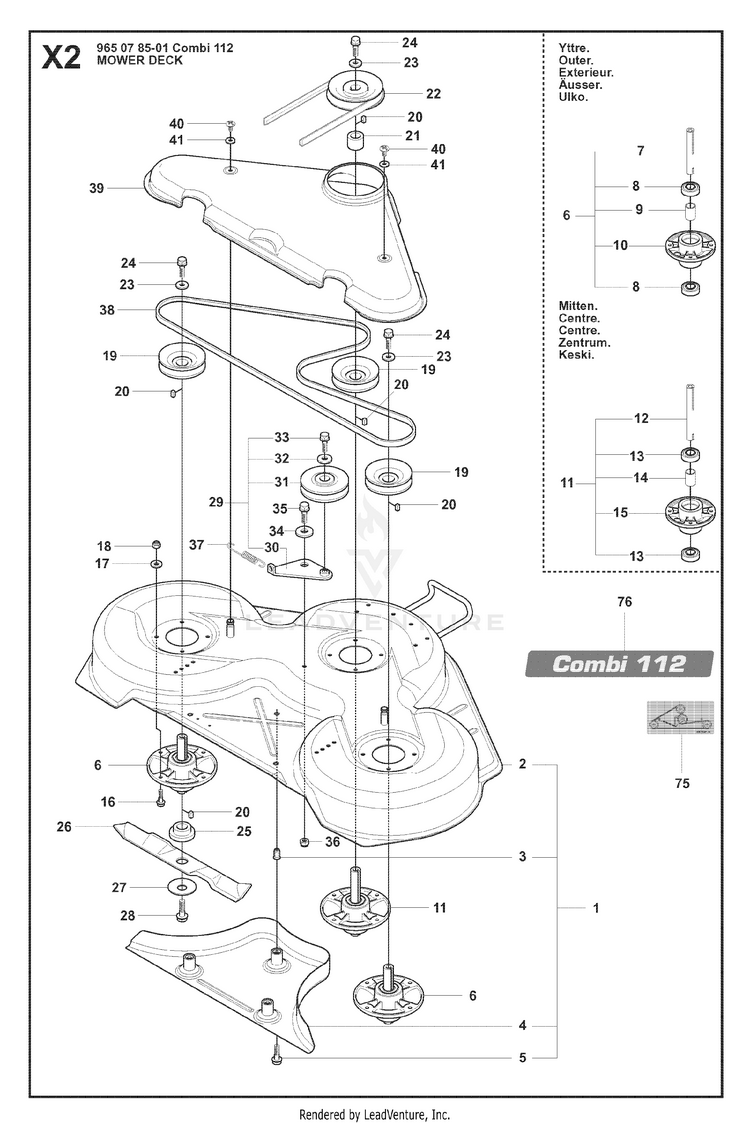

44"/112CM CUTTING DECK 2

...
...
14
SPACER HUS-544068001
...
6
BLADE HOUSING ASSY HUS-576384102
...
29
BELT TENSIONER ASSY KIT HUS-586966601
...
16
BOLT HUS-535423801
...
12
SHAFT HUS-544067901
...
38
BELT HUS-594978001
...
30
BELT TENSIONER ASSY KIT HUS-586966601
...
35
SCREW HUS-725245171
...
24
SCREW HUS-544114101
...
2
CUTTING DECK ASSY C112 GREY HUS-544113101
...
19
PULLEY HUS-506922101
...
13
BEARING HUS-738230434
...
33
BOLT HUS-506558302
...
40
SCREW HUS-506982601
...
23
WASHER HUS-734117441
...
1
CUTTING DECK C112 GREY RIDER HUS-544113003
...
34
Washers HUS-584288604
...
8
BEARING HUS-738230434
...
39
BELT COVER C112 HUSQVARNA-GREY HUS-544096203
...
28
SCREW HUS-544114101
...
41
WASHER HUS-506559701
...
11
BLADE HOUSING ASSY HUS-576384101
...
31
PULLEY HUS-506532701
...
7
SHAFT HUS-544067902
...
4
PLUG HUS-544449301
...
25
ADAPTER HUS-535504202
...
36
LOCKNUT M8 HUS-732211801
...
3
NUT HUS-506916201
...
75
Decal HUS-506789701
...
20
KEY HUS-506533501
...
15
BEARING HOUSING HUS-576384201
...
17
WASHER BRB 8.4X17 HUS-734116401
...
18
LOCKNUT M8 HUS-732211801
...
10
BEARING HOUSING HUS-576384201
...
27
WASHER HUS-588145601
...
26
BLADE HUS-504188110
...
9
SPACER HUS-544068001
...
37
SPRING HUS-506533101
...
32
SPACER HUS-734116441
...
76
LABEL HUS-544238105
...
21
SPACER HUS-544068002
...
22
PULLEY HUS-506778601
...
5
BOLT HUS-506570104
