Husqvarna RIDER 15V2 AWD - 965200801 (2008-01) Riding Mower

Model: RIDER 15V2 AWD - 965200801 (2008-01)

Back To Assemblies

Save Part Not Listed?
product name

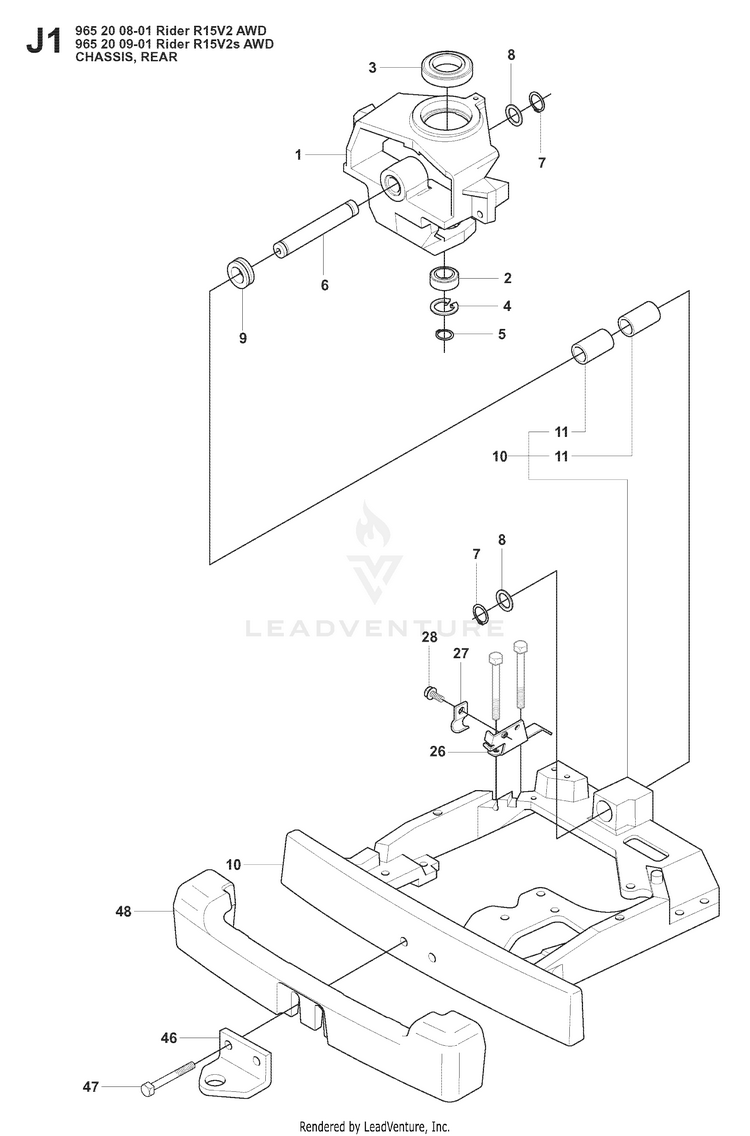

CHASSIS & ENCLOSURES

...
...
5
RETAINING RING SGA 25 HUS-735312600
...
9
V-RING HUS-740681421
...
45
DRAW RING HUS-506889901
...
2
Ball Bearing 6005-2rs HUS-738210504
...
10
BRACKET HUS-535406001
...
27
CLAMP HUS-506566501
...
46
SCREW HUS-725250071
...
8
WASHER HUS-506773401
...
3
BALL BEARING 6010 2RS1 HUS-738211004
...
28
SCREW HUS-725236461
...
7
RETAINING RING SGA 25 HUS-735312600
...
26
BRACKET HUS-544262101
...
1
SPINDLE HUS-506985803
...
11
BUSHING HUS-506986102
...
47
WEIGHT/ REAR BUMPER KIT HUS-953534901
...
4
CIRCLIP SGH 47 HUS-735314010
...
6
SHAFT HUS-506985901
