Husqvarna RIDER 15V2 AWD - 965200801 (2008-01) Riding Mower

Model: RIDER 15V2 AWD - 965200801 (2008-01)

Back To Assemblies

Save Part Not Listed?
product name

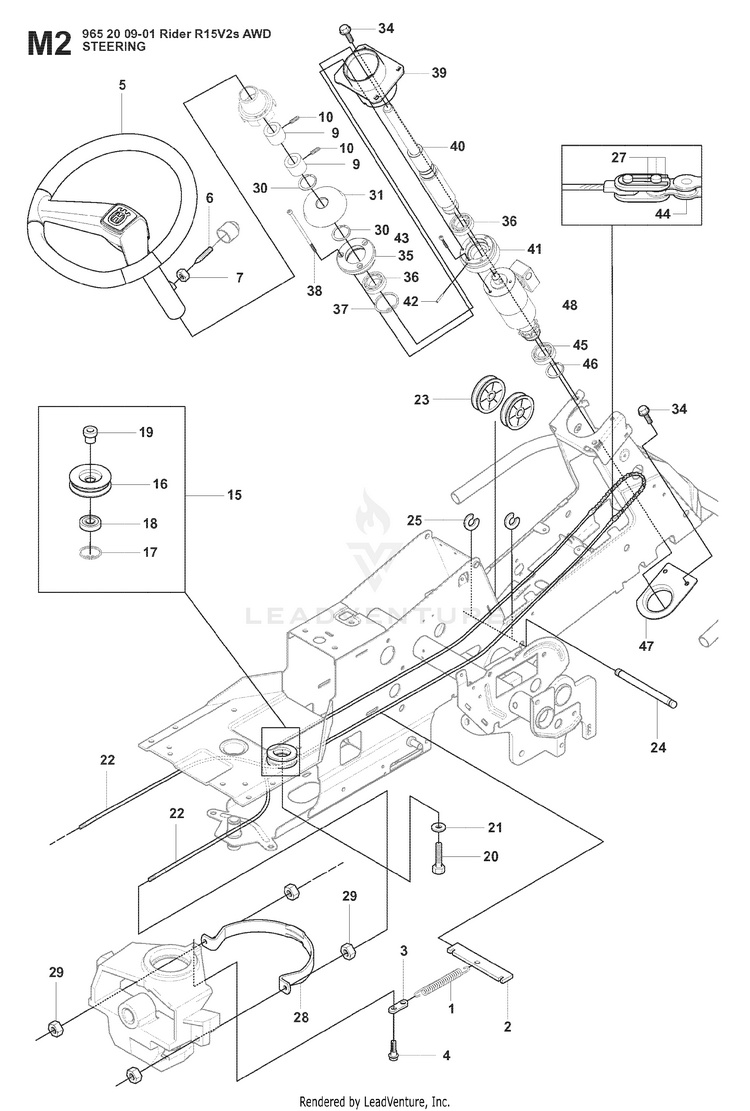

STEERING 2

...
...
4
BOLT HUS-506597401
...
27
LINK HUS-506554701
...
19
BUSHING HUS-506500802
...
6
SCREW HUS-728745505
...
39
NEEDS DESCRIPTION HUS-502296201
...
29
Nut HUS-731232001
...
42
SPRING PIN HUS-721433501
...
23
ROLLER HUS-506522401
...
9
DRIVER STEERING WHEEL HUS-587080901
...
2
Brackets HUS-590735401
...
25
RETAINING RING HUS-735311420
...
43
SCREW MC6S 6X20 HUS-725537055
...
18
BALL-BEARING 6204-2RS HUS-738220419
...
34
BOLT HUS-506570104
...
46
NEEDS DESCRIPTION HUS-735313300
...
35
NEEDS DESCRIPTION HUS-535423601
...
7
NUT HUS-731231801
...
28
WIRE GUIDE HUS-544427301
...
5
NEEDS DESCRIPTION HUS-544375201
...
22
WIRE ASSY HUS-501604804
...
16
ROLLER HUS-535424101
...
37
CIRCLIP SGH 47 HUS-735314010
...
45
NEEDS DESCRIPTION HUS-535427801
...
31
NEEDS DESCRIPTION HUS-535423701
...
44
NEEDS DESCRIPTION HUS-506554610
...
21
WASHER HUS-734117441
...
3
CONNECTOR HUS-506670801
...
1
SPRING HUS-506671901
...
40
NEEDS DESCRIPTION HUS-535421901
...
38
SCREW IHSCM. HUS-535432801
...
17
CIRCLIP SGH 47 HUS-735314010
...
10
Screw HUS-728844305
...
15
RP PULLEY HUS-506500903
...
24
SHAFT HUS-506539402
...
47
NEEDS DESCRIPTION HUS-504538201
...
36
Ball Bearing 6005-2rs HUS-738210504
...
41
NEEDS DESCRIPTION HUS-535423501
...
20
BOLT HUS-506675402
...
30
RETAINING RING SGA 25 HUS-735312600
