Husqvarna RIDER 155 - 953537701 (2006-01) Riding Mower

Model: RIDER 155 - 953537701 (2006-01)

Back To Assemblies

Save Part Not Listed?
product name

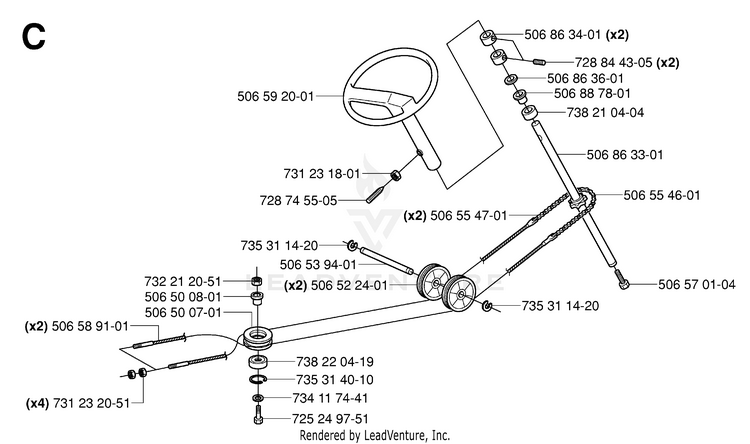

STEERING 2

...
...
506 52 24-01
ROLLER HUS-506522401
...
506 55 46-01
STEERING CHAIN HUS-506554601
...
506 53 94-01
SHAFT HUS-506539404
...
506 86 36-01
WASHER HUS-506863601
...
506 50 07-01
PULLEY HUS-506500701
...
725 24 97-51
SCREW HUS-725249751
...
728 84 43-05
Screw HUS-728844305
...
738 22 04-19
BALL-BEARING 6204-2RS HUS-738220419
...
506 86 33-01
SHAFT HUS-506863301
...
728 74 55-05
SCREW HUS-728745505
...
731 23 20-51
Nut HUS-731232001
...
506 86 34-01
DRIVER STEERING WHEEL HUS-587080901
...
506 55 47-01
LINK HUS-506554701
...
506 57 01-04
BOLT HUS-506570104
...
735 31 14-20
RETAINING RING HUS-735311420
...
735 31 40-10
CIRCLIP SGH 47 HUS-735314010
...
732 21 20-51
NUT HUS-732212001
...
506 50 08-01
SPACER HUS-506500801
...
738 21 04-04
BALL BEARING 6004-2RS1 HUS-738210404
...
506 88 78-01
SPACER HUS-506887801
...
506 59 20-01
STEERING WHEEL HUS-506592001
...
506 58 91-01
WIRE ASSY HUS-501604801
...
734 11 74-41
WASHER HUS-734117441
...
731 23 18-01
NUT HUS-731231801
