Husqvarna RIDER 155 - 953537701 (2006-01) Riding Mower

Model: RIDER 155 - 953537701 (2006-01)

Back To Assemblies

Save Part Not Listed?
product name

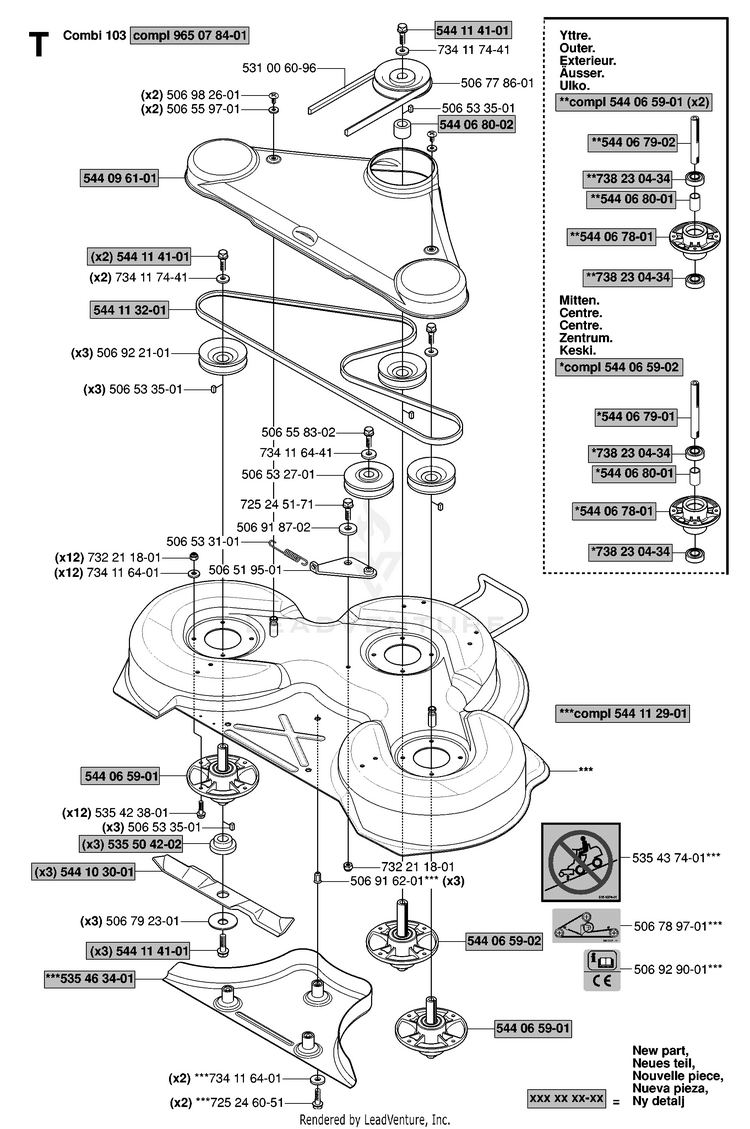

103CM CUTTING DECK

...
...
506 79 23-01
WASHER HUS-588145601
...
506 53 35-01
KEY HUS-506533501
...
544 10 30-01
BLADE HUS-504188210
...
544 11 32-01
BELT HUS-589534401
...
544 11 41-01
SCREW HUS-544114101
...
734 11 64-41
SPACER HUS-734116441
...
506 92 21-01
PULLEY HUS-506922101
...
544 06 59-02
BLADE HOUSING ASSY HUS-576384101
...
732 21 18-01
LOCKNUT M8 HUS-732211801
...
506 55 97-01
WASHER HUS-506559701
...
544 06 79-02
SHAFT HUS-544067902
...
544 11 29-01
HOUSING HUS-544112901
...
734 11 64-01
WASHER BRB 8.4X17 HUS-734116401
...
738 23 04-34
BEARING HUS-738230434
...
544 06 78-01
BEARING HOUSING HUS-576384201
...
535 50 42-02
ADAPTER HUS-535504202
...
544 06 59-01
BLADE HOUSING ASSY YTTRE. HUS-576384102
...
734 11 74-41
WASHER HUS-734117441
...
544 06 59-02
BLADE HOUSING ASSY MITTEN. HUS-576384101
...
544 06 59-01
BLADE HOUSING ASSY HUS-576384102
...
506 98 26-01
SCREW HUS-506982601
...
544 06 79-01
SHAFT HUS-544067901
...
544 06 80-02
SPACER HUS-544068002
...
506 77 86-01
PULLEY HUS-506778601
...
535 43 74-01
DECAL HUS-535437401
...
506 53 35-01
KEY HUS-506533501
...
732 21 18-01
LOCKNUT M8 HUS-732211801
...
506 78 97-01
Decal HUS-506789701
...
725 24 60-51
SCREW HUS-725246351
...
544 06 80-01
SPACER HUS-544068001
...
725 24 51-71
SCREW HUS-725245171
...
535 42 38-01
BOLT HUS-535423801
...
506 51 95-01
BELT TENSIONER ASSY KIT HUS-586966601
...
544 09 61-01
BELT COVER C103 HUSQ - GREY HUS-544096103
...
506 92 90-01
DECAL HUS-506929001
...
506 53 27-01
PULLEY HUS-506532701
...
734 11 64-01
WASHER BRB 8.4X17 HUS-734116401
...
535 46 34-01
PLUG HUS-544449201
...
506 55 83-02
BOLT HUS-506558302
...
506 91 87-02
Washers HUS-584288604
...
965 07 84-01
DECK COMBI 103 HUS-965078601
...
544 11 41-01
SCREW HUS-544114101
...
594 97 80-01
BELT HUS-594978001
...
506 91 62-01
NUT HUS-506916201
...
506 53 31-01
SPRING HUS-506533101
...
734 11 74-41
WASHER HUS-734117441
...
544 11 41-01
SCREW HUS-544114101
