Husqvarna RIDER 155 - 953537701 (2006-01) Riding Mower

Model: RIDER 155 - 953537701 (2006-01)

Back To Assemblies

Save Part Not Listed?
product name

44"/112CM CUTTING DECK

...
...
725 24 51-71
SCREW HUS-725245171
...
735 31 17-00
RETAINING RING SGA 15 HUS-735311700
...
732 21 20-51
NUT HUS-732212001
...
535 46 41-01
WASHER HUS-535464101
...
506 78 99-01
LINK HUS-506789901
...
506 59 74-01
BOLT HUS-506597401
...
725 24 95-71
SCREW HUS-725249571
...
535 42 30-01
BRACKET HUS-535423001
...
732 21 16-01
LOCKNUT M6 HUS-732211601
...
732 21 18-01
LOCKNUT M8 HUS-732211801
...
506 89 76-01
NUT HUS-506897601
...
535 47 63-01
RAIL HUS-535476301
...
506 96 30-01
DECK ROLLER, FRONT HUS-506963001
...
506 95 17-01
LINK HUS-506951701
...
506 81 49-06
ROD HUS-506814906
...
725 24 61-51
BOLT HUS-725246151
...
731 23 20-51
Nut HUS-731232001
...
506 86 96-01
BEARING HUS-506869601
...
727 63 83-01
Bolt HUS-727638301
...
725 24 62-51
SCREW HUS-725246251
...
535 43 12-01
PIPE HUS-535431201
...
535 43 06-01
NEEDS DESCRIPTION HUS-535430601
...
506 53 56-03
SPRING HUS-506535603
...
732 21 18-01
LOCKNUT M8 HUS-732211801
...
506 94 13-06
ROD HUS-506941306
...
535 41 23-02
HUS-535412302
...
506 81 38-01
PLATE HUS-506813801
...
506 97 91-01
Washer HUS-506979101
...
734 11 56-01
WASHER HUS-734181251

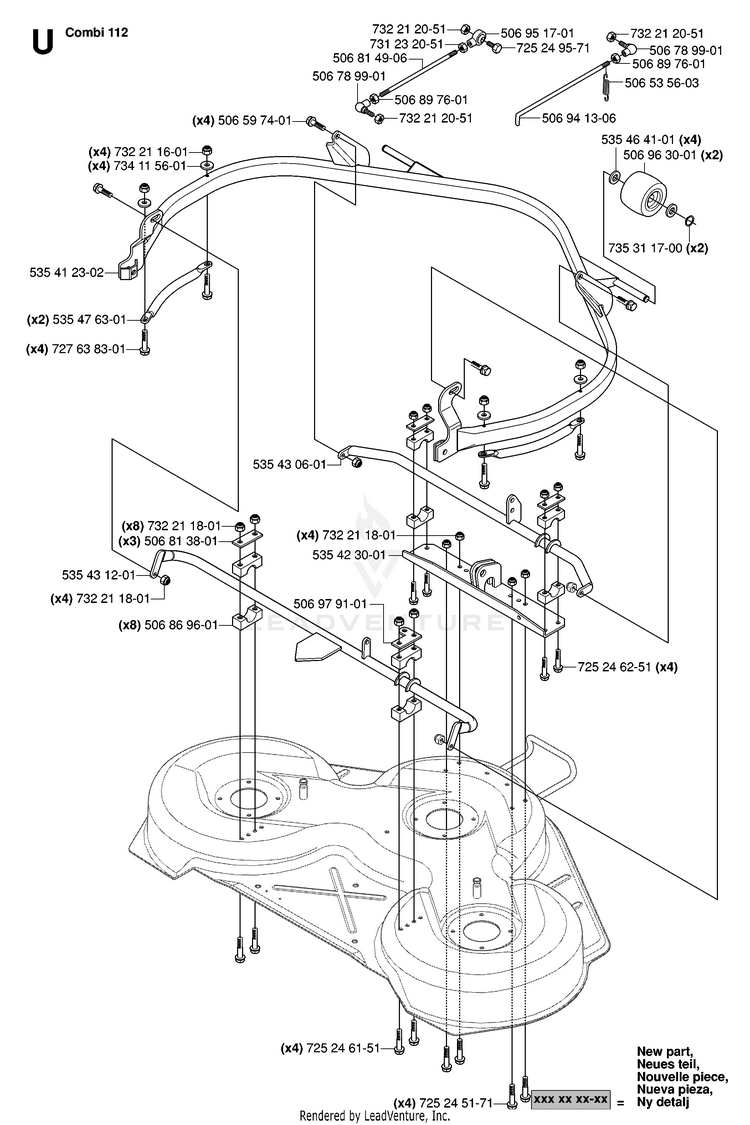

Schematic Image Zoomed
