Husqvarna RIDER 155 - 953537701 (2006-01) Riding Mower

Model: RIDER 155 - 953537701 (2006-01)

Back To Assemblies

Save Part Not Listed?
product name

STEERING

...
...
738 21 10-04
BALL BEARING 6010 2RS1 HUS-738211004
...
506 77 34-01
WASHER HUS-506773401
...
725 24 55-51
SCREW HUS-725245551
...
732 21 14-01
LOCKNUT M5 HUS-732211401
...
740 68 14-21
V-RING HUS-740681421
...
731 23 18-01
NUT HUS-731231801
...
738 21 05-04
Ball Bearing 6005-2rs HUS-738210504
...
535 46 90-01
HUS-535469001
...
725 24 67-51
Hex Bolt HUS-725246751
...
735 31 40-10
CIRCLIP SGH 47 HUS-735314010
...
731 23 18-01
NUT HUS-731231801
...
734 11 64-41
SPACER HUS-734116441
...
735 31 26-00
RETAINING RING SGA 25 HUS-735312600
...
731 23 20-01
Nut HUS-731232001
...
506 91 87-02
Washers HUS-584288604
...
506 98 88-01
SCREW HUS-506988801
...
725 24 51-51
SCREW 8X20 HUS-725245151
...
725 23 68-51
Screw HUS-725236851
...
506 98 58-01
Spindle HUS-506985801
...
725 52 28-01
SCREW HUS-725522801
...
732 21 18-01
LOCKNUT M8 HUS-732211801
...
725 24 59-51
SCREW HUS-725245951
...
535 48 44-01
TENSIONER HUS-535484401
...
506 94 69-01
PULLEY HUS-506946901
...
506 98 79-01
Bracket HUS-506987901
...
535 40 60-01
BRACKET HUS-535406001
...
506 98 85-01
BELT TENSIONER ARM HUS-588740401
...
506 98 74-01
Arm HUS-506987401
...
734 11 24-01
WASHER BRB 3.2X7 HUS-734112401
...
734 11 54-41
WASHER - 26X6.5X1.6 HUS-734115441
...
506 98 84-01
TENSIONER HUS-506988401
...
725 23 64-61
SCREW HUS-725236461
...
506 98 59-01
SHAFT HUS-506985901
...
506 98 61-01
BUSHING HUS-506986102
...
506 98 72-01
BRACKET HUS-506987201
...
506 98 77-01
BRACKET HUS-506987701
...
734 11 64-01
WASHER BRB 8.4X17 HUS-734116401
...
506 98 86-01
Springs HUS-594924101
...
506 98 61-02
BUSHING HUS-506986102
...
725 24 62-51
SCREW HUS-725246251
...
721 61 83-01
Split Pin HUS-721618301
...
506 57 61-03
GUIDE PLATE HUS-506576103
...
725 24 67-51
Hex Bolt HUS-725246751
...
535 46 92-01
SWITCH HUS-535469201
...
731 23 10-01
NUT M6M M3 HUS-731231001
...
506 66 56-01
SPRING HUS-506665601
...
506 56 65-01
CLAMP HUS-506566501

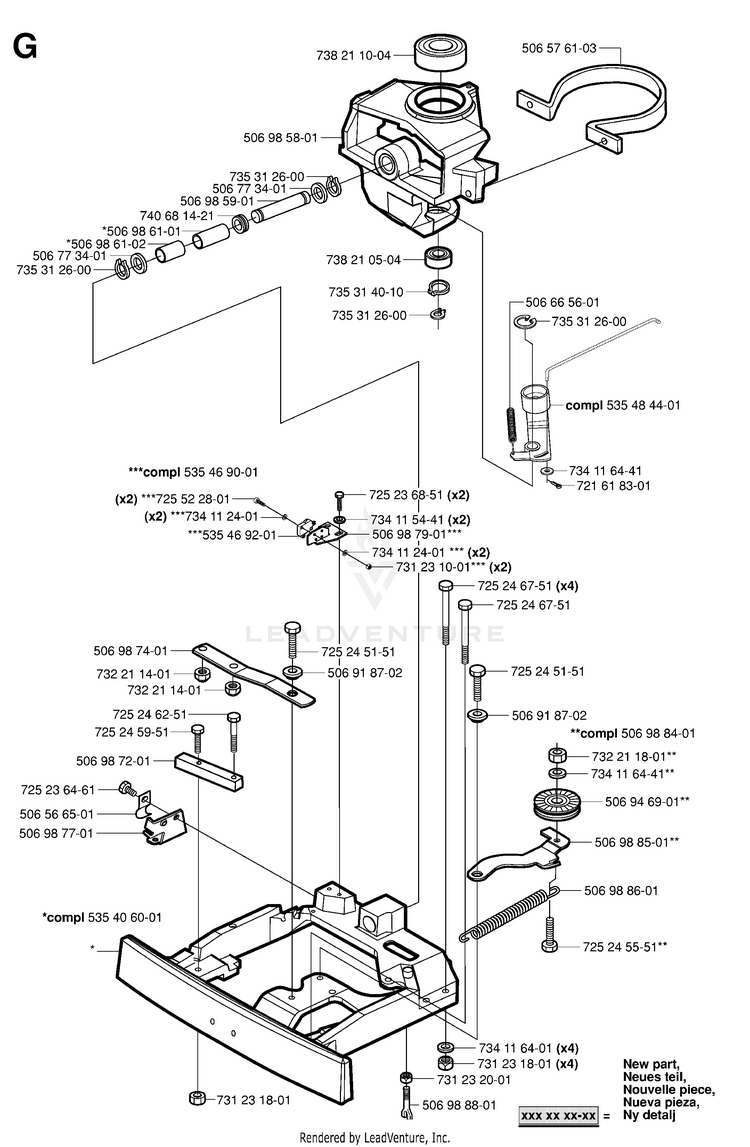

Schematic Image Zoomed
