Husqvarna RIDER 155 - 953537701 (2006-01) Riding Mower

Model: RIDER 155 - 953537701 (2006-01)

Back To Assemblies

Save Part Not Listed?
product name

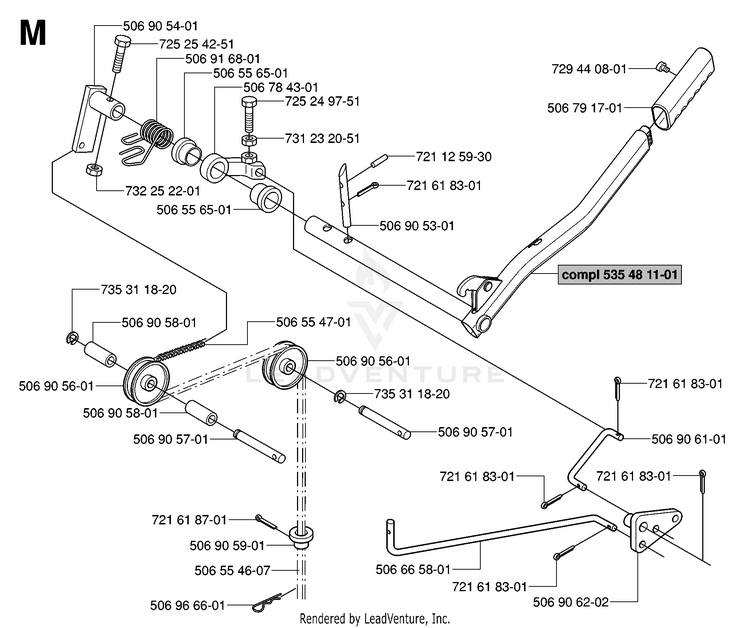

CONTROLS 2

...
...
735 31 18-20
Lock Ring HUS-735311820
...
506 79 17-01
Hand Grip HUS-506791701
...
729 44 08-01
Screw HUS-729440801
...
506 55 65-01
BEARING FLANGE HUS-584871301
...
506 90 59-01
BUSHING HUS-506905901
...
725 25 42-51
Screw HUS-725254251
...
506 90 58-01
SPACER HUS-506905801
...
506 90 56-01
PULLEY HUS-506905601
...
721 61 83-01
Split Pin HUS-721618301
...
732 25 22-01
Nut HUS-732252201
...
535 48 11-01
LIFTING LEVER ASSY HUS-501018602
...
506 78 43-01
LEVER CLUTCH HUS-506784301
...
721 12 59-30
PIN HUS-721125930
...
506 90 54-01
Lever HUS-506905401
...
506 55 47-01
LINK HUS-506554701
...
506 90 57-01
SHAFT HUS-506905701
...
506 55 46-07
CHAIN HUS-506554607
...
725 24 97-51
SCREW HUS-725249751
...
506 91 68-01
SPRING HUS-506916801
...
506 90 62-02
LINK HUS-506906202
...
506 90 61-01
Linkage HUS-506906101
...
506 96 66-01
RETAINER HUS-506966601
...
506 66 58-01
ROD HUS-506665801
...
506 90 53-01
PIN HUS-525406601
...
721 61 87-01
COTTER PIN HUS-721618701
...
731 23 20-51
Nut HUS-731232001
