Husqvarna RIDER 155 - 953537701 (2006-01) Riding Mower

Model: RIDER 155 - 953537701 (2006-01)

Back To Assemblies

Save Part Not Listed?
product name

CONTROLS

...
...
721 42 12-26
SPRING PIN 3X24 HUS-721421226
...
721 61 87-01
COTTER PIN HUS-721618701
...
506 83 56-01
Index Plate HUS-506835601
...
735 31 15-20
RETAINING RING HUS-735311520
...
732 21 18-01
LOCKNUT M8 HUS-732211801
...
721 61 83-01
Split Pin HUS-721618301
...
725 23 74-71
SCREW M6S 6X30 HUS-725237471
...
725 24 53-51
SCREW HUS-725245371
...
506 99 83-01
Bracket HUS-506998301
...
506 97 51-01
CLUTCH ROD HUS-506975101
...
506 83 18-01
CATCH HUS-506831801
...
731 23 18-01
NUT HUS-731231801
...
506 90 80-01
Lever HUS-506908001
...
506 83 57-01
Clamp HUS-506835701
...
725 24 57-51
SCREW HUS-725245751
...
506 90 71-01
KNOB HUS-506907101
...
506 50 48-05
WASHER HUS-506504805
...
506 90 76-01
LEVER HUS-506907601
...
734 11 64-01
WASHER BRB 8.4X17 HUS-734116401
...
506 90 79-01
ROD HUS-506907901
...
506 83 23-01
SPRING HUS-506832301
...
506 51 08-01
CLEVIS PIN HUS-506510801
...
506 76 88-01
Bushing HUS-506768801
...
506 90 82-01
LINKAGE HUS-506908201
...
732 21 16-01
LOCKNUT M6 HUS-732211601
...
506 83 17-01
END PIECE HUS-506831701
...
506 90 70-01
BUTTON HUS-506907001

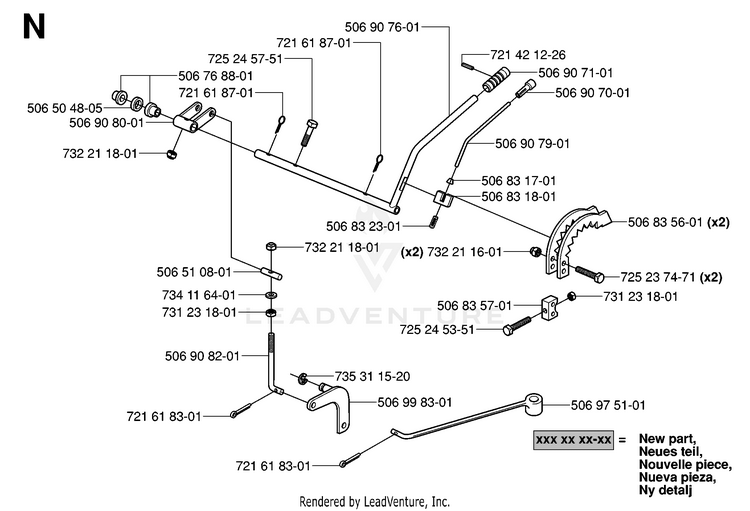

Schematic Image Zoomed
