Husqvarna RIDER 15 T - 966414201 (2010-07) Riding Mower

Model: RIDER 15 T - 966414201 (2010-07)

Back To Assemblies

Save Part Not Listed?
product name

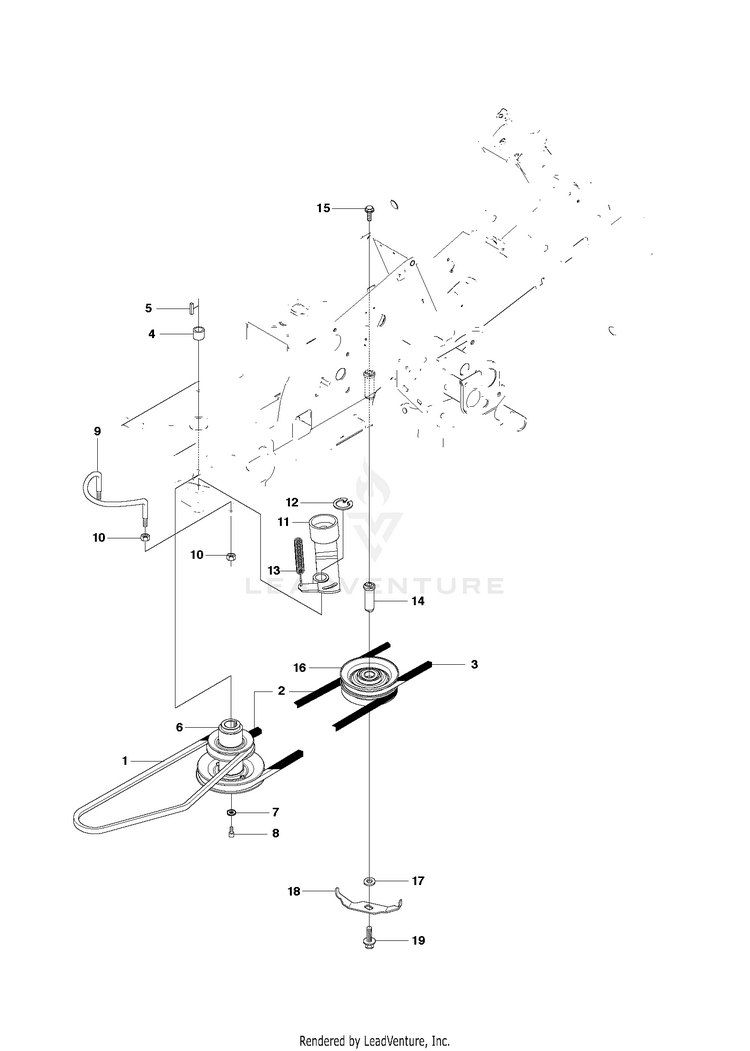

TRANSMISSION 2

...
...
18
BELT GUIDE HUS-544405301
...
7
WASHER HUS-506597501
...
3
BELT HUS-594978001
...
13
SPRING HUS-506665601
...
8
SCREW HUS-506556002
...
19
BOLT HUS-506597401
...
12
RETAINING RING SGA 25 HUS-735312600
...
4
SPACER HUS-506509201
...
1
BELT HUS-589531201
...
10
Nut HUS-731232001
...
2
BELT KIT HUS-599675902
...
6
PULLEY HUS-535482401
...
9
BELT GUIDE HUS-506664501
...
5
KEY HUS-506555901
...
11
TENSIONER HUS-535484401
...
15
BOLT HUS-506675402
...
16
PULLEY HUS-535482201
...
14
SHAFT HUS-581916401
...
17
WASHER HUS-506775701
