Husqvarna RIDER 15 T - 966414201 (2010-07) Riding Mower

Model: RIDER 15 T - 966414201 (2010-07)

Back To Assemblies

Save Part Not Listed?
product name

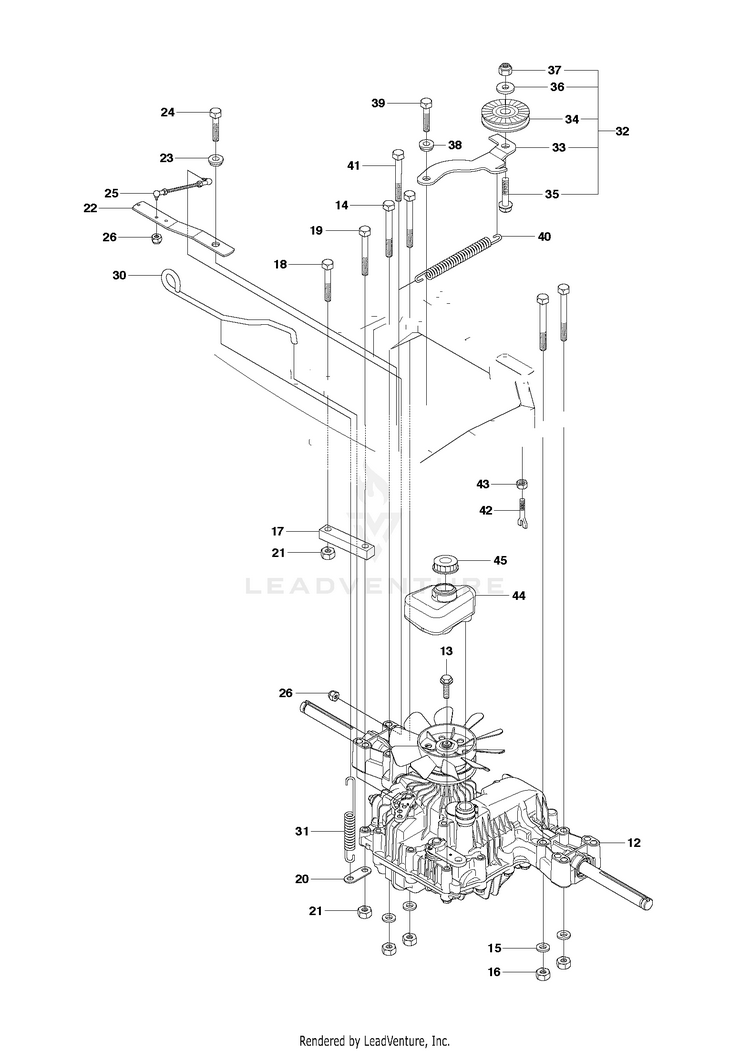

CHASSIS REAR 2

...
...
35
SCREW HUS-725245551
...
21
NUT HUS-731231801
...
40
Springs HUS-594924101
...
15
WASHER BRB 8.4X17 HUS-734116401
...
44
TANK HUS-506989001
...
33
BELT TENSIONER ARM HUS-588740401
...
22
ARM HUS-506987403
...
16
NUT HUS-731231801
...
24
SCREW 8X20 HUS-725245151
...
14
Hex Bolt HUS-725246751
...
45
TANK CAP ASSY HUS-590324701
...
42
SCREW HUS-506988801
...
39
SCREW 8X20 HUS-725245151
...
32
TENSIONER HUS-506988401
...
25
ROD HUS-506987501
...
19
SCREW HUS-725246251
...
17
BRACKET HUS-506987201
...
36
SPACER HUS-734116441
...
37
LOCKNUT M8 HUS-732211801
...
38
Washers HUS-584288604
...
12
HYDROSTAT 7A646024070 HUS-506986301
...
18
SCREW HUS-725245951
...
20
CONNECTOR HUS-506599301
...
13
BOLT HUS-506558302
...
26
LOCKNUT M5 HUS-732211401
...
30
Rod HUS-506988201
...
43
Nut HUS-731232001
...
34
PULLEY HUS-506946901
...
23
Washers HUS-584288604
...
41
SCREW HUS-725246451
...
31
SPRING HUS-506834301
