Husqvarna RIDER 15 T - 966414201 (2010-07) Riding Mower

Model: RIDER 15 T - 966414201 (2010-07)

Back To Assemblies

Save Part Not Listed?
product name

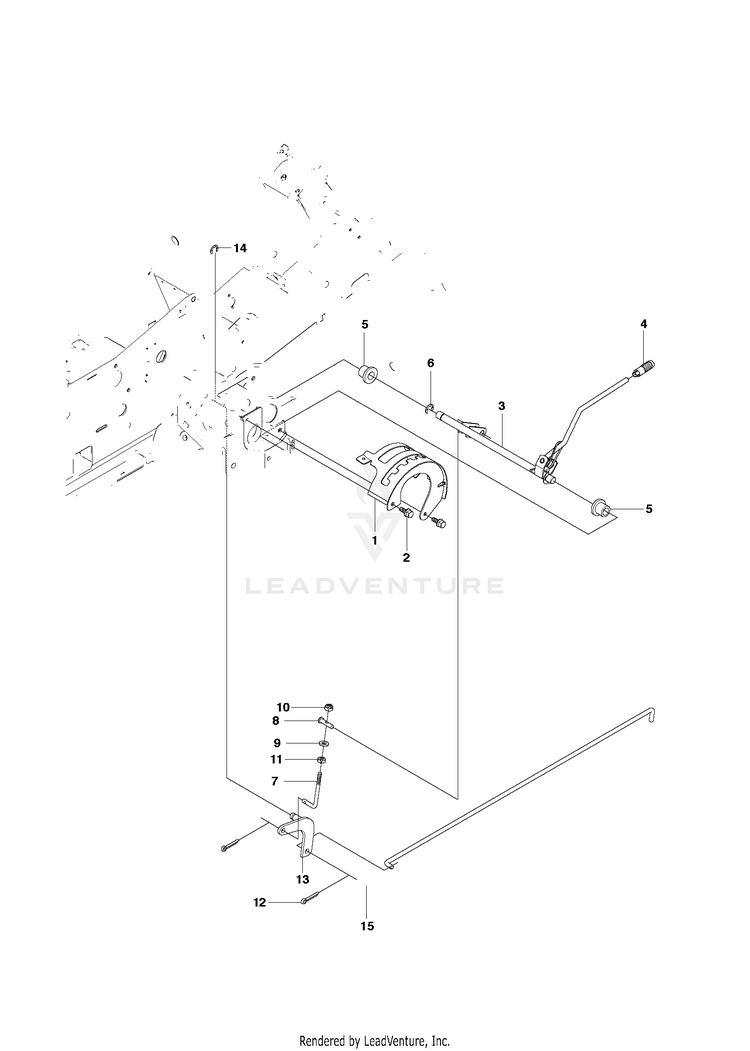

HEIGHT ADJUSTMENT

...
...
6
CIRCLIP HUS-735312220
...
8
Pins HUS-506784601
...
3
HEIGHT ADJUSTER HUS-504734501
...
10
LOCKNUT M8 HUS-732211801
...
5
BEARING FLANGE HUS-584871302
...
2
BOLT HUS-506570103
...
1
CONTROL PLATE HUS-535501401
...
11
NUT HUS-731231801
...
13
HUS-525476001
...
15
CONNECTION ROD HUS-523114501
...
9
GSPH HUS-596134901
...
14
RETAINING RING HUS-735311520
...
7
LINKAGE HUS-506908201
...
4
Handles HUS-588164101
...
12
Split Pin HUS-721618301
