Husqvarna RIDER 15 T - 966414201 (2010-07) Riding Mower

Model: RIDER 15 T - 966414201 (2010-07)

Back To Assemblies

Save Part Not Listed?
product name

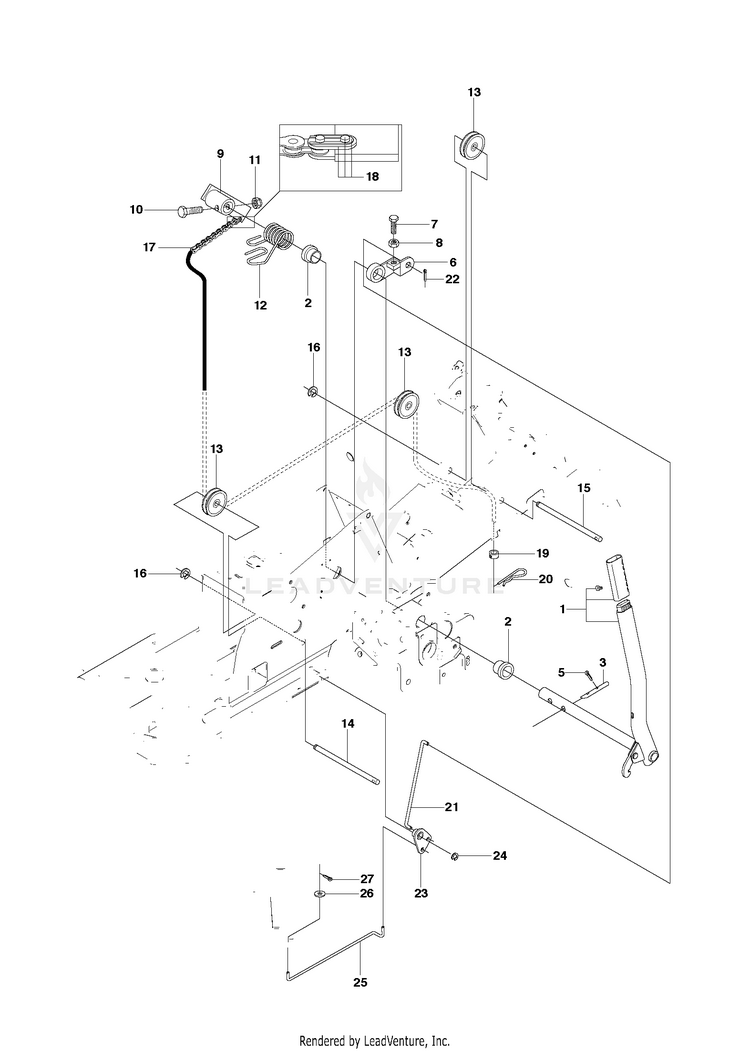

MOWER LIFT / DECK LIFT

...
...
21
CONNECTION ROD HUS-544456901
...
5
Split Pin HUS-721618301
...
7
SCREW HUS-725249751
...
2
BEARING FLANGE HUS-584871301
...
10
Screw HUS-725254251
...
16
Lock Ring HUS-735311820
...
18
LINK HUS-506554701
...
8
Nut HUS-731232001
...
17
CHAIN HUS-506554607
...
9
LIFTING ARM HUS-544433601
...
25
CONNECTION ROD HUS-544448801
...
14
SHAFT HUS-506905701
...
1
LIFTING LEVER ASSY HUS-501018602
...
26
SPACER HUS-734116441
...
3
PIN HUS-525406601
...
20
RETAINER HUS-506966601
...
6
LEVER CLUTCH HUS-506784301
...
24
RETAINING RING HUS-735311420
...
15
SHAFT HUS-506905702
...
27
Split Pin HUS-721618301
...
13
PULLEY HUS-506905601
...
19
HUS-544934201
...
23
LINK HUS-544378601
...
12
SPRING HUS-506916801
...
11
Nut HUS-732252201
...
22
Split Pin HUS-721618301
