Husqvarna RIDER 15 T - 966414201 (2010-07) Riding Mower

Model: RIDER 15 T - 966414201 (2010-07)

Back To Assemblies

Save Part Not Listed?
product name

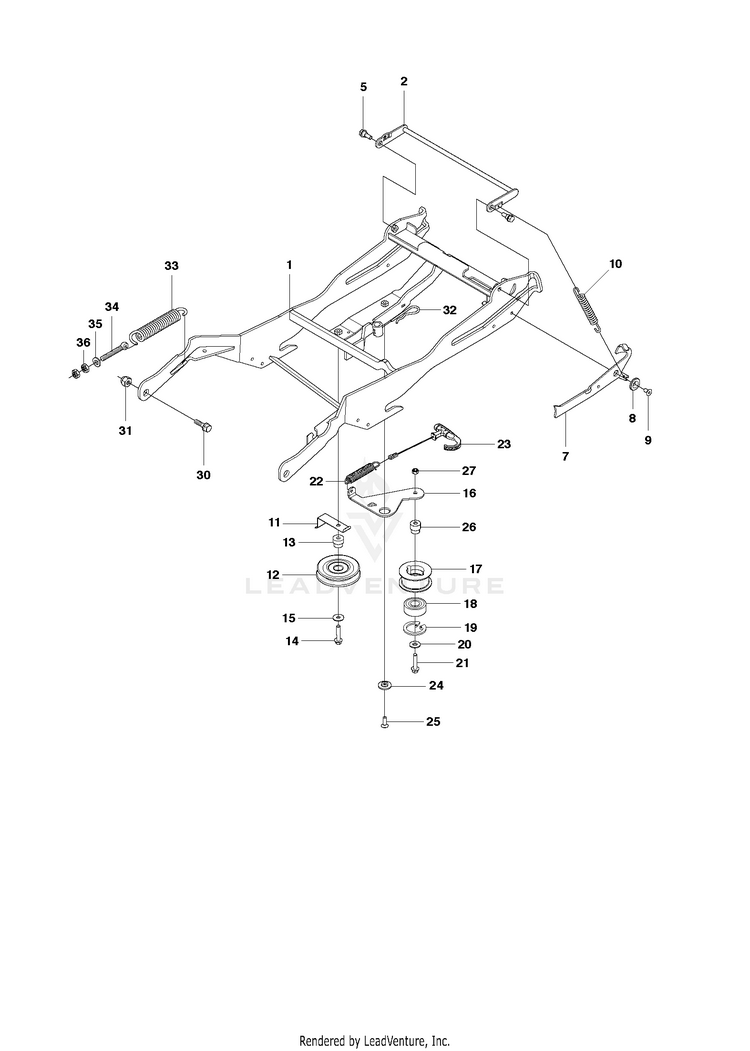

FRAME

...
...
25
SCREW HUS-725645301
...
9
SCREW IHCSFM HUS-725644801
...
27
LOCKNUT M8 HUS-732211801
...
35
GSPH HUS-596134901
...
8
SPACER HUS-506918701
...
26
BUSHING HUS-535484801
...
23
HANDLE ASSY HUS-504622102
...
2
HOOK HUS-525475901
...
21
SCREW HUS-725245951
...
32
RETAINER HUS-506966601
...
36
Nut HUS-731232001
...
13
BUSHING HUS-506826802
...
30
BOLT HUS-506895801
...
15
SPACER HUS-734116441
...
16
HUS-523083701
...
34
SCREW HUS-506837701
...
20
SPACER HUS-734116441
...
18
BALL BEARING 6004-2RS1 HUS-738210404
...
7
LEVER HUS-523116602
...
19
RETAINING RING HUS-735313810
...
14
SCREW HUS-725245951
...
11
BELT GUIDE HUS-525486701
...
22
SPRING HUS-504622401
...
31
Nut HUS-732252201
...
17
NEEDS DESCRIPTION HUS-597509002
...
24
WASHER SHOULDER ASSY HUS-586496701
...
5
BOLT HUS-506597401
...
12
PULLEY HUS-506974801
...
1
EQUIPMENT FRAME GREY C94/C103 HUS-523064203
...
10
SPRING HUS-506535603
...
33
SPRING HUS-506837601
