Husqvarna RIDER 15 T - 966414201 (2010-07) Riding Mower

Model: RIDER 15 T - 966414201 (2010-07)

Back To Assemblies

Save Part Not Listed?
product name

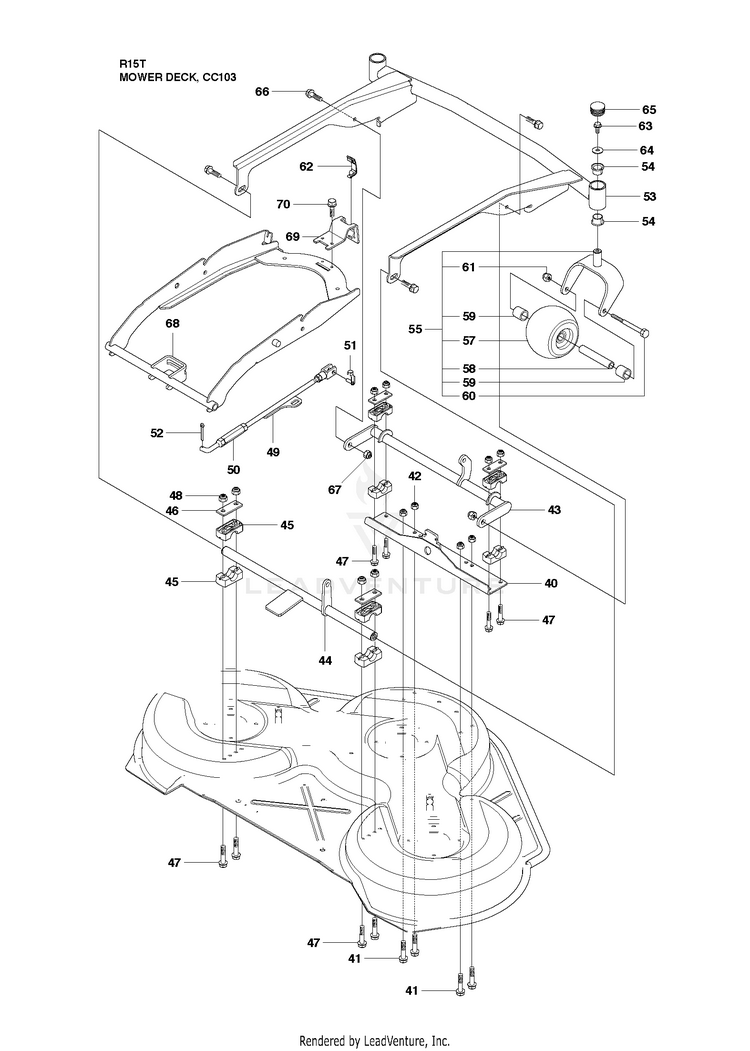

MOWER DECK / CUTTING DECK 2

...
...
66
BOLT HUS-506597401
...
51
JOINT CPL HUS-506839802
...
50
PARALLEL ROD HUS-502642301
...
63
BOLT HUS-506570104
...
49
PARALLELL ROD ASSY HUS-523114201
...
42
LOCKNUT M8 HUS-732211801
...
68
DECK ATTACHMENT HUS-523087501
...
44
CROSS BAR HUS-523094503
...
65
PLUG HUS-574034801
...
41
SCREW HUS-725245171
...
55
PIVOT WHEEL ASSY BEARING SLEEV HUS-596316403
...
59
SPACER HUS-506874102
...
47
BOLT HUS-725246151
...
43
CROSS BAR HUS-502641805
...
69
LOCK HUS-523114601
...
52
Split Pin HUS-721618301
...
54
BEARING HUS-574561901
...
61
NUT HUS-732212001
...
40
BRACKET HUS-523095301
...
70
SCREW EHHFM HUS-535475212
...
58
PIPE HUS-506810802
...
60
BOLT HUS-725251951
...
53
DECK FRAME WELDING ASSY HUS-523086507
...
45
BEARING HUS-506869601
...
64
SPACER HUS-734116441
...
67
LOCKNUT M8 HUS-732211801
...
62
CLIP GRAY HUS-503894703
...
48
LOCKNUT M8 HUS-732211801
...
57
DECK ROLLER, FRONT HUS-506963001
...
46
PLATE HUS-506813801
