Husqvarna RIDER 15 T - 966414201 (2010-07) Riding Mower

Model: RIDER 15 T - 966414201 (2010-07)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
6
LOCKNUT M8 HUS-732211801
...
2
SCREW HUS-725245751
...
10
NEEDS DESCRIPTION HUS-544335702
...
13
HEAT PROTECTOR HUS-544248301
...
7
NEEDS DESCRIPTION HUS-510131401
...
19
GASKET HUS-535414236
...
12
CLAMP ASSY EXHAUST HUS-501152201
...
16
PLUG HUS-535414460
...
9
CLAMP ASSY EXHAUST HUS-501152201
...
15
SPRINGWASHER HUS-506839401
...
3
SCREW HUS-725245951
...
11
SCREW HUS-725236461
...
4
WASHER BRB 8.4X17 HUS-734116401
...
17
HUS-531001190
...
18
JOINT HUS-535414416
...
14
BOLT HUS-506597401
...
8
PIPE KAWASAKI HUS-544013301
...
5
Washer HUS-735216400
...
1
MOTOR HUS-535451901

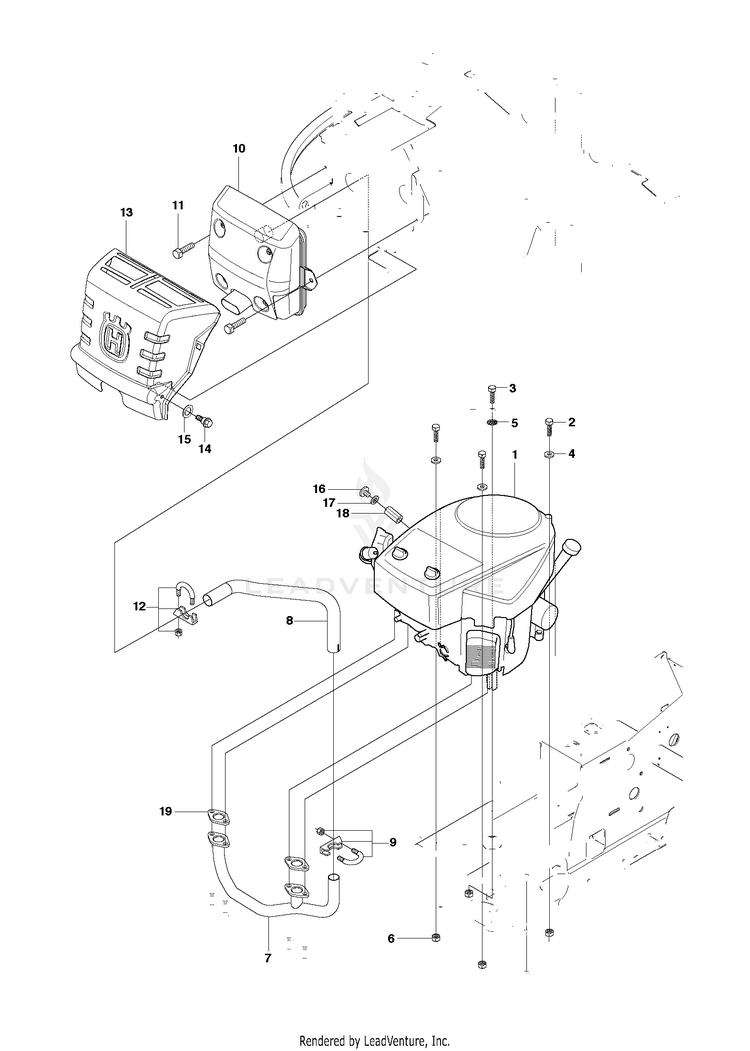

Schematic Image Zoomed
