Husqvarna RF550AR (1999 & Before) Tiller

Model: RF550AR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

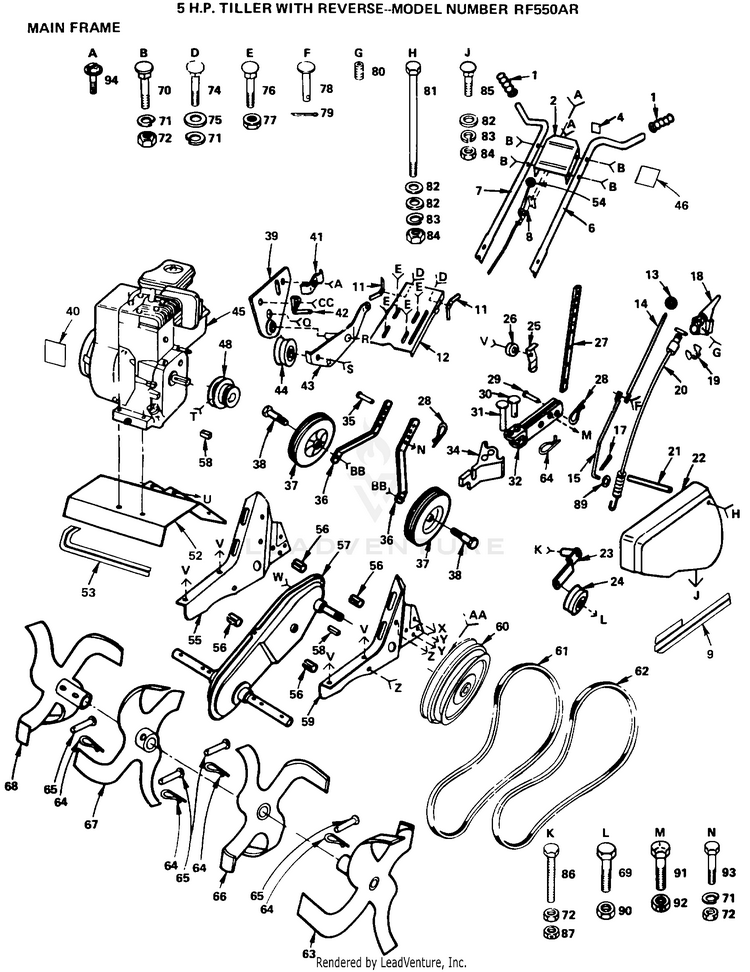

MAIN FRAME

...
...
1
SUB= 624A78 HUS-9266R
...
2
BRACKET - HANDLE HUS-101229D358
...
4
DECAL - THROTTLE HUS-104223X
...
6
SUB= 2623J500 HUS-2623J
...
7
SUB= 2624J500 HUS-2624J
...
8
THROTTLE CONT TI HUS-2630J
...
9
DECAL - BELT GUARD HUS-104220X
...
11
SUB= 136376 HUS-2628J
...
12
NLA HUS-101962X358
...
13
SUB= 106932X HUS-100196K
...
14
ROD REVERSE TI HUS-101248K
...
15
REVERSE ROD TI HUS-2613J
...
17
COTTER PIN HUS-76020412
...
18
CONTROL LEVER TI HUS-2635J
...
19
E-RING HUS-12000027
...
20
CABLE CLUTCH T HUS-3066J
...
21
SPLIT SPACER HUS-316J
...
22
BELT GUARD HUS-2638J358
...
23
SUB= 674A30 HUS-674H20
...
24
SUB= 75673 HUS-9178R
...
25
STAKE SPRING TI HUS-5388J
...
26
WASHER CT HUS-635J
...
27
SUB= 2582J HUS-624H151
...
28
SPRING.RETAINER HUS-4921H
...
29
SUB= 4929H HUS-326J
...
30
RIVET TI HUS-2010J
...
31
RIVET HUS-75091240
...
32
SUB= 674A111 HUS-674H136
...
34
SUB= 1953J HUS-674H126
...
35
DRILLED RIVET RT HUS-9194R
...
36
SUB= 9190R500 HUS-674H5
...
37
WHEEL TI HUS-2727J
...
38
BOLT M HUS-4898H
...
39
BRACKET TI HUS-674H175
...
40
DECAL - 5HP HUS-102697X
...
41
CONDIUT CLIP T HUS-9484R
...
42
BELT GUIDE HUS-2609J
...
43
REVERSE IDLER T HUS-674H207
...
44
PULLEY W/SPACER HUS-2009J
...
45
NLA HUS-130202
...
46
DECAL - HANDLE BRACKET HUS-104221X
...
48
ENGINE PULLEY TI HUS-101189L
...
52
SUB= 9057R505 HUS-9057R358
...
53
DECAL - TINE SHIELD HUS-104219X
...
54
KNOB TI HUS-2878J
...
55
SUB= 1949J500 HUS-674H130
...
56
SPLIT SPACER RT HUS-9173R
...
57
SUB= 532126669 HUS-674A145
...
58
KEY T HUS-2649M
...
59
SUB= 1948J HUS-674H131
...
60
SHEAVE TI HUS-2607J
...
61
SUB= 133035 HUS-4833H
...
62
SUB= TH3H440 HUS-2614J
...
63
TINE WELDMENT TI HUS-100744M
...
64
RETAINER.SPRING HUS-3146R
...
65
RIVET.PAN HD.1.75 HUS-4929H
...
66
SUB= 674A42 HUS-674H31
...
67
SUB= 674A43 HUS-674H32
...
68
TINE WELDMENT TI HUS-100746M
...
69
Bolt Fin Flex 3/8-16unc X 1-1/4 HUS-74760620
...
70
BOLT TI HUS-72240512
...
71
LOCKWASHER HUS-10040500
...
72
NUT.HEX.5/16-18 HUS-73220500
...
74
BOLT HUS-72110510
...
75
WASHER HUS-19121414
...
76
BOLT HUS-72240506
...
77
NUT HUS-98000129
...
78
RIVET.RD.HD.DRILL HUS-1778E
...
79
SUB= 3145 HUS-76020308
...
80
SCREW HUS-23200405
...
81
NLA HUS-74760488
...
82
WASHER HUS-19091016
...
83
LOCKWASHER HUS-10040400
...
84
SUB= 50675 HUS-73220400
...
85
BOLT HUS-72240404
...
86
SUB= 74760532 HUS-74930532
...
87
SUB= 68478 HUS-1685H
...
89
WASHER HUS-19131316
...
90
NUT HUS-73350600
...
91
BOLT HUS-74610620
...
92
GRIPCO NUT HUS-7810H
...
93
SUB= 77394 HUS-74760516
...
94
SCREW HUS-71561008
...
xx
OWNER'S MANUAL HUS-102536X
