Husqvarna RE11597 - 96011030700 (2012-01) Tractor/Ride Mower

Model: RE11597 - 96011030700 (2012-01)

Back To Assemblies

Save Part Not Listed?
product name

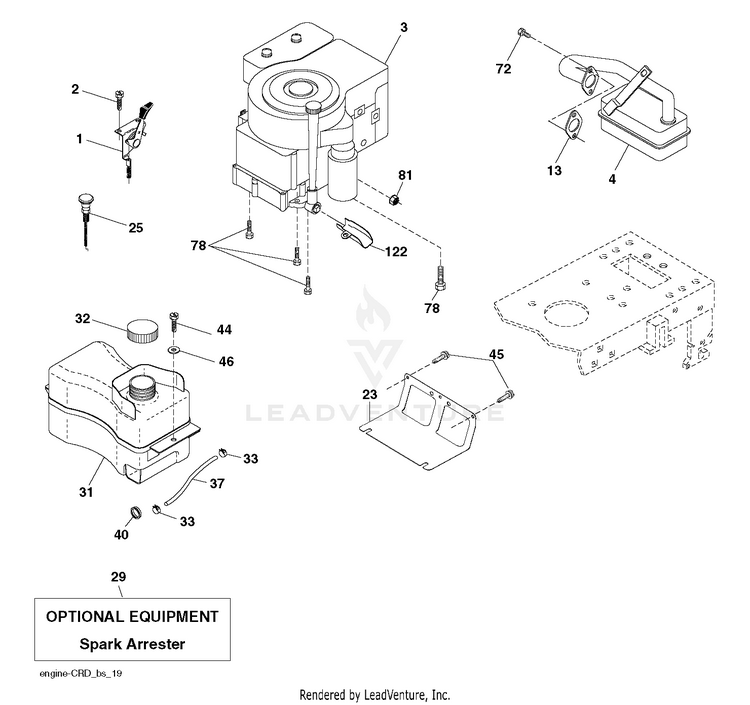

ENGINE

...
...
1
CONTROL TH/CH FLAG HUS-532170551
...
2
HCS.1/4-20.X1/2 HUS-539990071
...
3
ENGINE BRIGGS MODEL 217807-3402-B1 (438614) HUS-000000000
...
4
MUFFLER HUS-532179758
...
13
Gasket Eng 1 313 Id Tin Plated HUS-532272293
...
23
SHEILD.BROWNING.DBR.GUARD HUS-532169837
...
25
HUS-532190695
...
29
ARRESTER SPARK (OPTIONAL) HUS-532137180
...
31
HUS-532407516
...
32
CAP.FUEL.TANK.SS/SNO.EPA.DOME HUS-581075501
...
33
HOSE CLAMP HUS-532123487
...
37
LINE.FUEL.20 HUS-532137040
...
40
GROMMET T HUS-532124028
...
44
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
45
SCREW, 3/8-16X3/4 HUS-817000612
...
46
WASHER HUS-819091416
...
72
SCREW.SOCKET HD.5/16-1 HUS-532192334
...
78
SCREW.3/8-16 HUS-817060620
...
81
Nut Crownlock 1/4-20 unc HUS-873680400
...
122
EXTENSION DRAIN OIL HUS-532421922
