Husqvarna RE11597 - 96011030700 (2012-01) Tractor/Ride Mower

Model: RE11597 - 96011030700 (2012-01)

Back To Assemblies

Save Part Not Listed?
product name

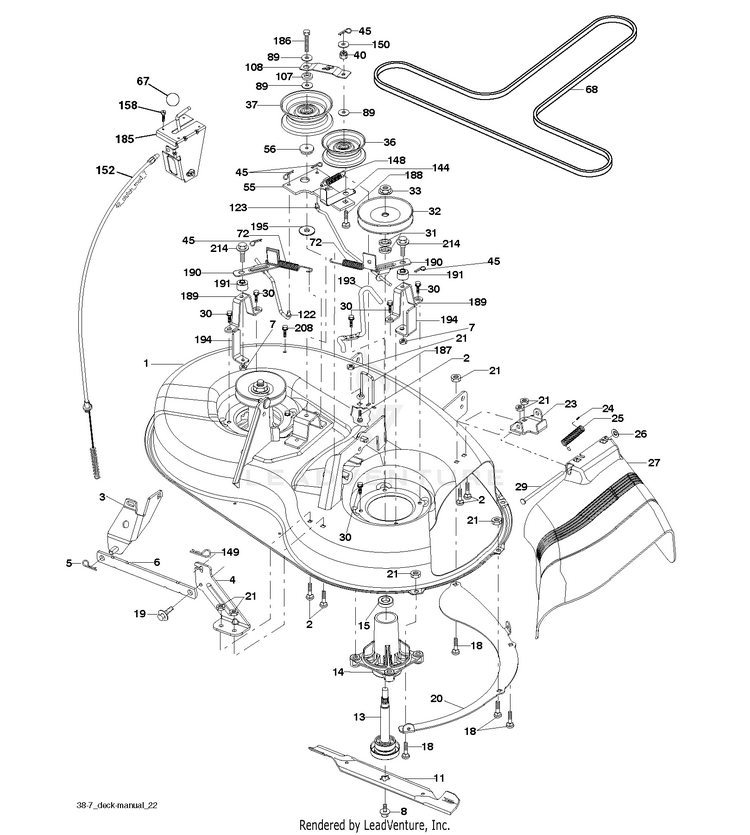

MOWER DECK / CUTTING DECK

...
...
1
DECK.WELDMENT.38"2005 HUS-532192556
...
2
RHSNB.5/16-18.X3/4.GR.5.ZD HUS-539990316
...
3
BRKT ASM SWAY BAR HUS-532138017
...
4
BRACKET DECK SWAY BAR 38"/42" HUS-532192568
...
5
RETAINER SPRING HUS-532085902
...
6
BAR SWAY DECK HUS-532178024
...
7
NUT.71038.31-18.HEX.NYLOCK HUS-873800500
...
8
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
11
BLADE 38" PREMIUM HUS-532193957
...
13
MANDREL ASM HUS-532192870
...
14
HOUSING MANDREL HUS-532187281
...
15
BEARING HUS-532110485
...
18
BOLT HUS-872140505
...
19
BOLT SHD 5/16-18 HUS-532132827
...
20
BAFFLE VORTEX HUS-532400095
...
21
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
23
BRKT.DEFLECTOR.38"2005+ HUS-532192557
...
24
CAP-SLEEVE LT HUS-532105304
...
25
SPRING.TORSION.DEFLECT HUS-532197026
...
26
NUT PUSH M HUS-532110452
...
27
HUS-532401472
...
29
ROD.HINGE HUS-532131491
...
30
SCREW, WASHER HEAD HUS-532173984
...
31
WASHER.SPACER.MANDREL HUS-532187690
...
32
MANDREL.PULLEY.38.YELLOW HUS-532173435
...
33
NUT.FLANGE.LOCK.TOP HUS-532400234
...
36
PULLEY.IDLER.FLAT HUS-532173438
...
37
PULLEY.IDLER.FLAT.UNPLATED HUS-532193198
...
40
LOCKNUT HUS-873680600
...
45
RETAINER M HUS-532004497
...
55
IDLER ARM HUS-532133840
...
56
SPACER.RETAINER.MOWER HUS-532165723
...
67
KNOB T (3/8 HOLE) HUS-532106932
...
68
V-BELT.MOWER.38"2005+ HUS-532193214
...
72
SPRING.BRAKE.RETURN.38" HUS-532193216
...
89
WASHER HUS-734117201
...
107
SPACER.IDLER.ARM HUS-532133502
...
108
STIFFENER.IDLER.ARM HUS-532133503
...
122
ROD, BRAKE LH LINK HUS-532410189
...
123
LINK.BRAKE.38"RIGHT HUS-532410190
...
144
KEEPER BELT HUS-532193414
...
148
IDLER RETURN SPRING HUS-532169022
...
149
SPRING.RETAINER.YELLOW.ZINC HUS-532165898
...
150
WASHER - M6 HUS-734115201
...
152
CABLE.CLUTCH.38".SERVICE HUS-532193235
...
158
HCS.1/4-20.X1/2 HUS-539990071
...
185
HEAD ASM. CABLE CLUTCH HUS-532188234
...
186
SCREW.HXWSH.3/8 HUS-817490644
...
187
KEEPER BELT HUS-532193412
...
188
BOLT, CARRIAGE IDLER BLACK HUS-532171977
...
189
BRAKE.ASSY.38"2005.+ HUS-532192558
...
190
BRAKE.ASSY.38"2005.+ HUS-532192558
...
191
SPACER, BRAKE HUS-532192561
...
193
KEEPER BELT RH MANDREL HUS-532193413
...
194
BRAKE.ASSY.38"2005.+ HUS-532192558
...
195
WASHER.13/32 X 1 X 1/2.11GUARD HUS-532413524
...
208
SCREW 3/8-16X1/2 HUS-817670608
...
214
BOLT/WASHER ASM 5/16-18 HUS-532193782
...
--
BRAKE.ASSY.38"2005.+ NOT SHOWN HUS-532192558
...
--
MANDREL.ASM.SUB-NON.GR NOT SHOWN HUS-532192870
...
--
NOT SHOWN HUS-532432031
