Husqvarna RE1136A (1999 & Before) Tractor

Model: RE1136A (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

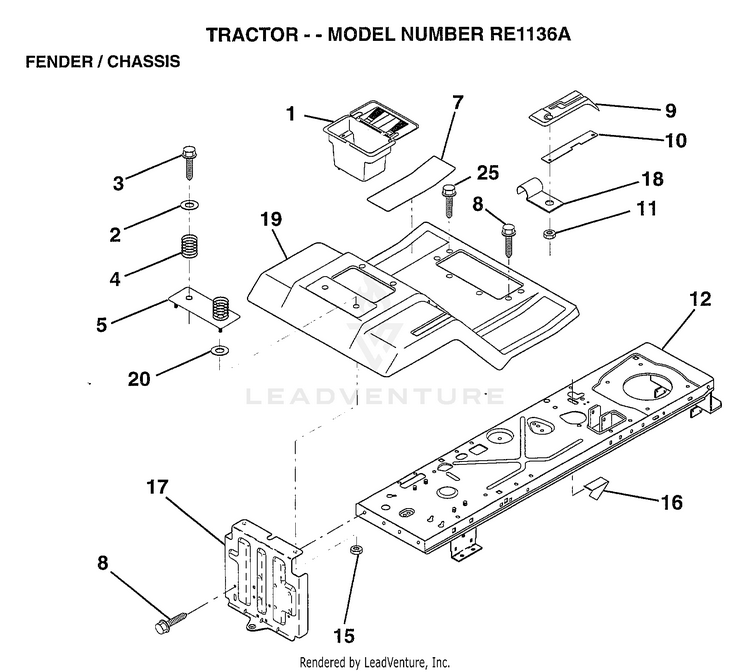

FENDER/CHASSIS

...
...
1
"CASE,BATTERY.MECH" HUS-156417
...
2
WASHER HUS-19132012
...
3
SCREW HUS-17490612
...
4
SPRING COMPRESSIO HUS-124181X
...
5
BTRY FENDER PLATE HUS-127115X505
...
7
PAD FOOTREST HUS-124144X
...
8
SCREW HUS-17490512
...
9
CONSOLE.SHIFT CONTROL HUS-126997X428
...
10
PLATE LOCK SHIFT HUS-139783
...
11
NUT HUS-124346X
...
12
CHASSIS.WELD.ASM. HUS-145190
...
15
NUT HXKEP 1/4X20 HUS-73640400
...
16
SUB= 146613 HUS-141736
...
17
DRAWBAR ASM LR HUS-140782
...
18
"CLIP,INSULATOR" HUS-126470X
...
19
FENDER/FOOTREST HUS-204379X505
...
20
WASHER HUS-19091413
...
25
SCREW HUS-17190516
