Husqvarna RE1136A (1999 & Before) Tractor

Model: RE1136A (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

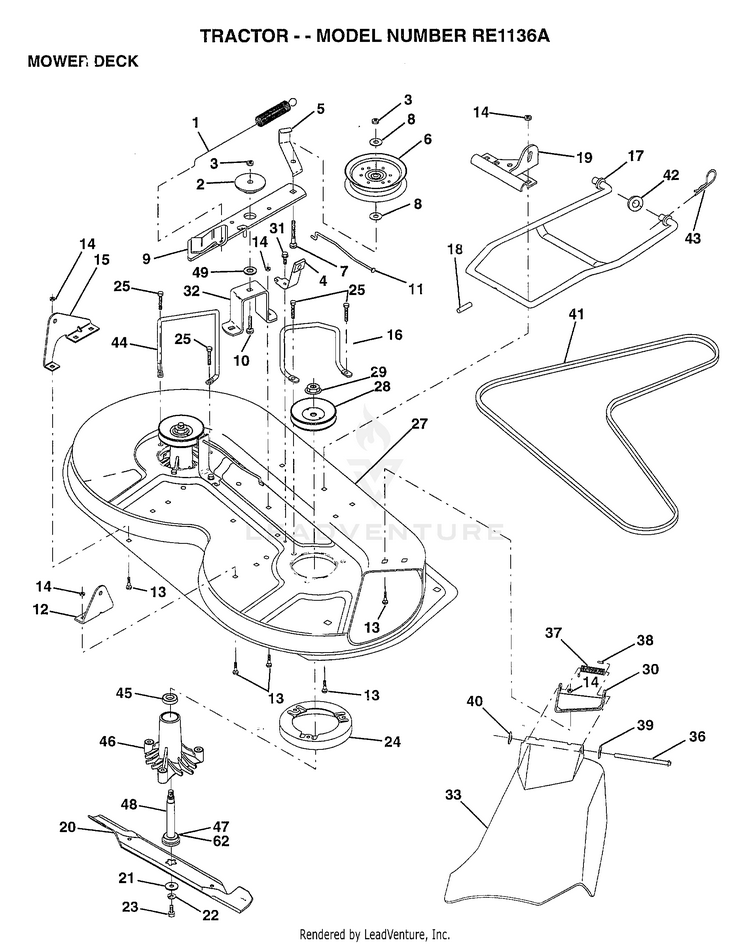

MOWER DECK

...
...
1
SPRING CLUTCH MWR HUS-140064
...
2
SPACER RETAINER HUS-122052X
...
3
SUB= 73690600 HUS-73680600
...
4
BRAKE ASM HUS-130840
...
5
IDLER BELT GUIDE HUS-131251
...
6
PULLEY IDLER HUS-121316X
...
7
BOLT HUS-72110616
...
8
WASHER HUS-19131410
...
9
SUB= 140092 HUS-127744
...
10
BOLT.3/8-14X1.25 HUS-72140610
...
11
BRAKE ROD HUS-130841
...
12
"BRKT,LIFT REAR" HUS-127356
...
13
BOLT HUS-72140506
...
14
SUB= 73690500 HUS-73680500
...
15
"BRKT,LIFT REAR LH" HUS-127357
...
16
"KEEPER-BELT,RH" HUS-153298
...
17
MOWER LINK STAB HUS-128508
...
18
"PIN,GROOVE" HUS-128511
...
19
"BRKT,LINK STABILI" HUS-127380
...
20
"BLADE.36"" HIPERF" HUS-138496
...
21
WASHER.HARD.BLADE HUS-140296
...
22
SUB= 10040600 HUS-10030600
...
23
BLADE BOLT HUS-850857
...
24
STRIPPER RND MWR HUS-140329
...
25
"SCREW-THD ROLL,WA" HUS-157722
...
27
"HOUSING-MOWER,36""" HUS-156600
...
28
PULLEY.MAND.36/46 HUS-153531
...
29
SUB= 139729 HUS-137266
...
30
SUB= 532136631 HUS-136631
...
31
SCREW LT HUS-17490508
...
32
"SUPT,IDLER ARM" HUS-122051X
...
33
SUB= 532131560 HUS-131560
...
36
HINGE ROD HUS-121980X
...
37
SPRING TORSION HUS-123713X
...
38
CAP-SLEEVE LT HUS-105304X
...
39
WASHER HUS-19111016
...
40
NUT PUSH M HUS-110452X
...
41
V-BELT.PRIM.78.5. HUS-131264
...
42
WASHER HUS-19171616
...
43
RETAINER.SPRING HUS-3146R
...
44
KEEPER BELT LH HUS-140608
...
45
BEARING HUS-110485X
...
46
HSG ASM MANDREL HUS-128774
...
47
BEARING.BALL HUS-129895
...
48
SUB= 137646 HUS-137645
...
49
HARDENED WASHER HUS-133943
...
62
WASHER.FELT. HUS-153390
...
xx
MANDREL ASM HUS-130794
...
xx
"DECK SERVICE.36""" HUS-156866
