Husqvarna RE10L36B (1999 & Before) Tractor

Model: RE10L36B (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

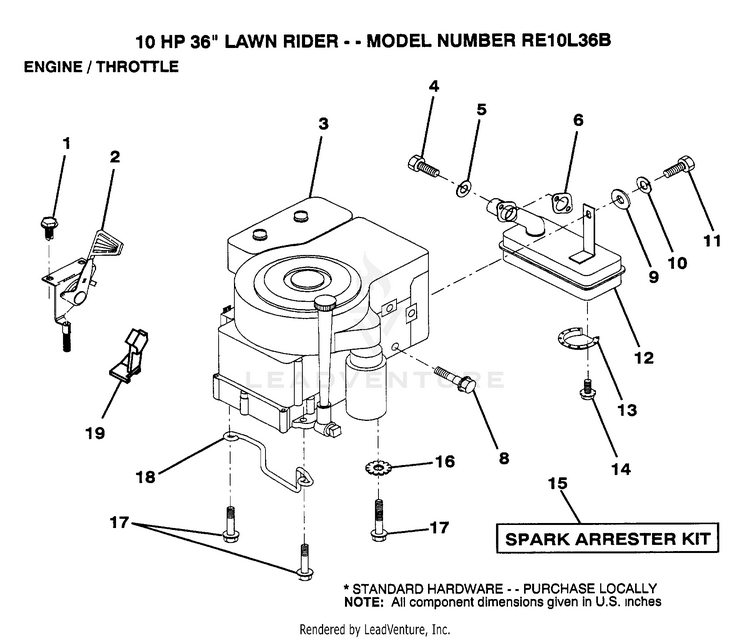

ENGINE/THROTTLE

...
...
1
SCREW HUS-17720408
...
2
SUB= 532133025 HUS-133025
...
3
ENGINE BRIGGS AND STRATTON HUS-131995
...
4
SCREW HUS-71070512
...
5
LOCKWASHER HUS-10040500
...
6
SUB= 272293 HUS-125593X
...
8
BOLT T HUS-121094X
...
9
WASHER HUS-19101216
...
10
LOCKWASHER HUS-10040400
...
11
BOLT HUS-74780420
...
12
SUB= 137437 HUS-123676X
...
13
DEFLECTOR.222573 HUS-101326L
...
14
SUB= 17030814 HUS-17030808
...
15
SUB= 532137180 HUS-121851X
...
16
LOCKWASHER HUS-11050600
...
17
SCREW LT HUS-17490624
...
18
"KEEPER,DR BELT GR" HUS-126636X
...
19
SUB= 532133097 HUS-133097
