Husqvarna RC1236B (1991) Tractor

Model: RC1236B (1991)

Back To Assemblies

Save Part Not Listed?
product name

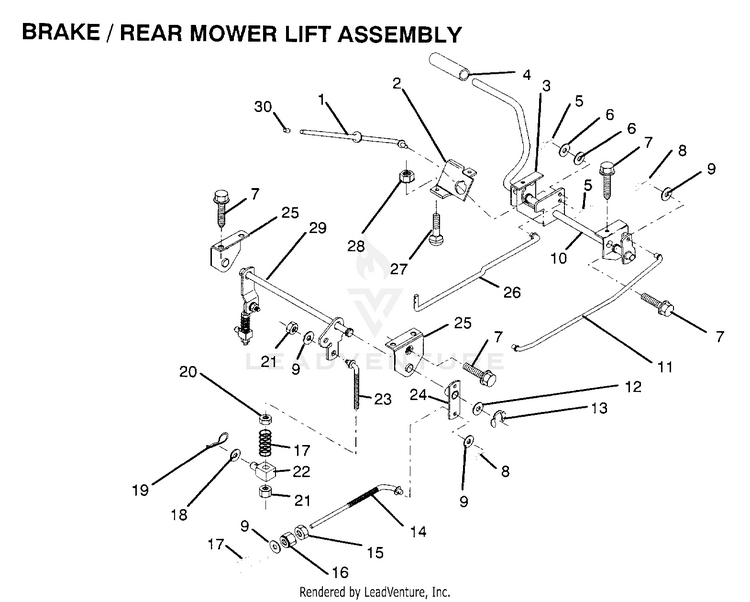

BRAKE/REAR MOWER LIFT

...
...
1
"ROD,PARK BRAKE" HUS-123436X
...
2
"BRKT,PARK BRAKE" HUS-123437X
...
3
"BRKT,CLU PEDAL LH" HUS-122504X
...
4
PEDAL COVER T HUS-8883R
...
5
SUB= 3145 HUS-76020312
...
6
WASHER HUS-19131016
...
7
SCREW LT HUS-17490508
...
8
COTTER PIN HUS-76020412
...
9
WASHER HUS-19131316
...
10
SUB= 139933 HUS-124145X
...
11
"ROD,FRT BRAKE" HUS-123543X
...
12
WASHER T HUS-19251816
...
13
KLIP RING HUS-12000034
...
14
SUB= 131461 HUS-126759X
...
15
NUT HUS-73350600
...
16
NUT HUS-73800600
...
17
SPRING ROD LT HUS-106888X
...
18
WASHER HUS-19132012
...
19
SPRING.RETAINER HUS-4921H
...
20
LOCKNUT HUS-73930600
...
21
SUB= 73690600 HUS-73680600
...
22
SUB= 132793 HUS-106204X
...
23
"LINK.LIFT.3.5""" HUS-123672X
...
24
BRAKE PIVOT ARM HUS-123641X
...
25
"BRKT,LIFT SHAFT" HUS-121978X
...
26
"ROD,CLUTCH" HUS-123394X
...
27
SUB= 72270506 HUS-72110506
...
28
NUT HUS-73510500
...
29
REAR MOWER LIFT HUS-123547X
...
30
PLUNGER CAP T HUS-71673
