Husqvarna R53 SVL - 961410226032 (2011-12) Walk Behind Mower

Model: R53 SVL - 961410226032 (2011-12)

Save Part Not Listed?
product name

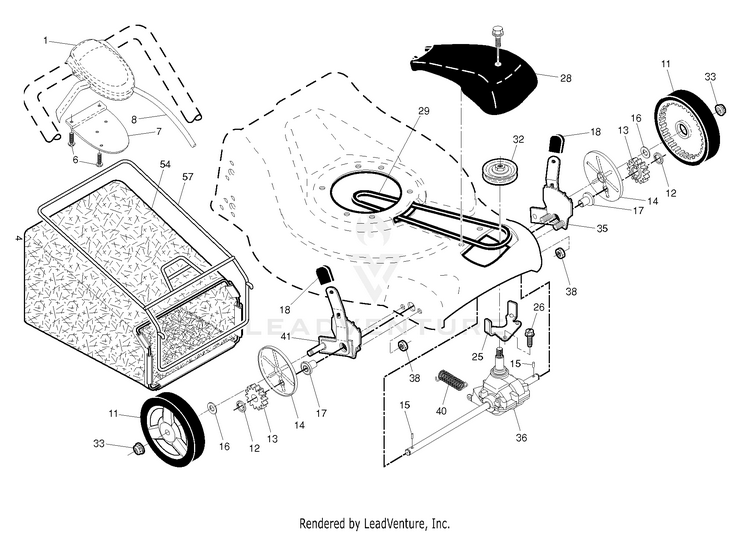

DRIVE

...
...
7
BRACKET.DRIVE.CONTROL.MOUNT.BL HUS-532400723
...
18
SELECTOR KNOB HUS-532701037
...
57
FRAME.GBAG.21.FWGD HUS-532411950
...
54
Grassbag Assembly HUS-532401903
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
12
E-RING 7/16 RE HUS-812000058
...
16
WASHER FLUT HUS-532067725
...
28
COVER.DRIVE.ASM.185579.CE.WALK HUS-532432664
...
25
BRACKET.BELT.GUIDE.22+FGD.BZP HUS-532431711
...
8
CABLE ASSEMBLY, DRIVE HUS-532406259
...
35
KIT ADJUSTER ASM.438151. HUS-532438485
...
17
BEARING.SUPPORT.ASM HUS-587070202
...
40
SPRING HUS-532406558
...
29
RP PULLEY.DRIVE.EZ/VAR.SCREWON HUS-532443262
...
11
WHEEL.8X1.75.H3SPK.RAD3.GY.BU3 HUS-532401274
...
1
CONTROL.DR.QW.21FGD.BS.GY/BLK HUS-532425661
...
32
RP PULLEY.DRIVE.EZ/VAR.SCREWON HUS-532443262
...
6
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
36
TRANSMISSION.21.FGD.HT.VST HUS-532404833
...
14
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
38
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
41
KIT ADJUSTER ASM.438148 HUS-532438486
...
15
PAWL, DRIVE HUS-532404845
...
13
PINION.14.TEETH.FGD HUS-532403849
...
26
SCREW HUS-532163409

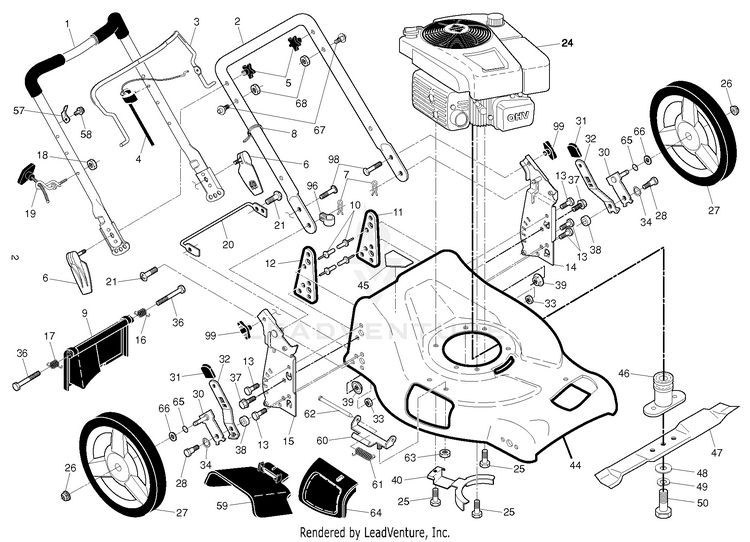

FRAME

...
...
47
BLADE.21.PUSH HUS-532199377
...
57
BRACKET.UPSTOP.RT HUS-532430034
...
- -
DECAL.INTERN.4.SYMBOL.CURVED HUS-532182191
...
39
GSPW Hardware HUS-596039201
...
10
RIVET BLIND HUS-532128415
...
63
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
96
CLIP.CABLE.BLK HUS-532197991
...
45
DECAL.CUTFINGER.CE.02 HUS-581579101
...
59
DISCHARGE DEFLECTOR HUS-532175071
...
36
BOLT HUS-532184193
...
65
O-RING..070X.487.NEOPRENE HUS-532197480
...
32
SPRING.SELECTOR.EXTEN.5POS.BZP HUS-532401626
...
60
BRACKET.ASM.HINGE.21.FWGD. HUS-532175735
...
14
BRACKET.ASM.HDL.LT.21FGD.HW.OR HUS-532434550
...
26
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
28
Hardware HUS-596203801
...
13
SCREW 14-20 X 5/8 HUS-817060410
...
16
SPRING.REAR.DOOR.EZ.21.LT HUS-532405417
...
12
BRACKET.SUPRT.RH.21.FWGD HUS-532410542
...
30
ARM.ASM.AXLE.REAR.5/9.POS.BZP HUS-532413141
...
18
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
25
BOLT 3/8-16X1-1/8 HUS-532150406
...
27
WHEEL.12X1.75.CF H3SPK.RAD3.BB HUS-585911001
...
99
HANDLE.KNOB.BLACK HUS-532185577
...
19
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
38
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
24
B&S 12S902-0110-H1 FOR SERVICE & PARTS 1-800-233-3723 HUS-000000000
...
40
BRACKET.KEEPER.BELT HUS-532425711
...
68
NUT.LOCK.5/16-18 HUS-532751153
...
1
HANDLE.ASM.UP.W/ADJ.BKT.21FGD HUS-583848601
...
17
SPRING.REAR.DOOR.EZ.21.RT HUS-532405418
...
48
WASHER,HARDEN HUS-532851074
...
62
ROD.HINGE.21 HUS-532175650
...
61
SPRING.TORSION HUS-532193000
...
50
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
58
SCREW HUS-532178848
...
2
HANDLE.LOWER.21.NB.GREY HUS-532439719
...
5
KNOB.HANDLE.PLASTIC.STAR.BLACK HUS-532182398
...
44
KIT.HSG.21.FWGD.MC.505 HUS-583332501
...
66
WASHER.FLAT.1/2 HUS-532088348
...
34
WASHER.CURVED.CYLINDRICAL HUS-532401630
...
98
Bolts HUS-596136401
...
49
Washers HUS-596238701
...
46
ADAPTER.BLADE.25MM.VS.LOW.CUT HUS-583478001
...
8
WIRE TIE HUS-532007192
...
37
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
7
HAIRPIN COTTER HUS-532051793
...
31
SELECTOR KNOB HUS-532701037
...
15
BRACKET.ASM.HDL.RT.21FGD.HW.N HUS-532434549
...
33
Hardware HUS-596040501
...
4
CABLE.ASM.ZONE.CONTROL HUS-532415350
...
3
BAIL.CONTROL.MZR.BS.ORANGE HUS-532426812
...
67
STUD.QUICK.ADJUST HUS-532199255
...
11
BRACKET.SUPPORT.LH.21.FWGD HUS-532406573
...
20
FOOT.GUARD.21.DOM/FGD.CE.10 HUS-532436119
...
21
HUS-817640416
...
6
QUICK.ASM.RELEASE.BLACK HUS-532430679
...
9
DOOR.REAR.PLASTIC.21.FWGD HUS-532401812
...
64
DOOR.MULCH.21.REAR.FWGD HUS-532185576
