Husqvarna R53 SV - 96141019305 (2010-11) Walk Behind Mower

Model: R53 SV - 96141019305 (2010-11)

Back To Assemblies

Save Part Not Listed?
product name

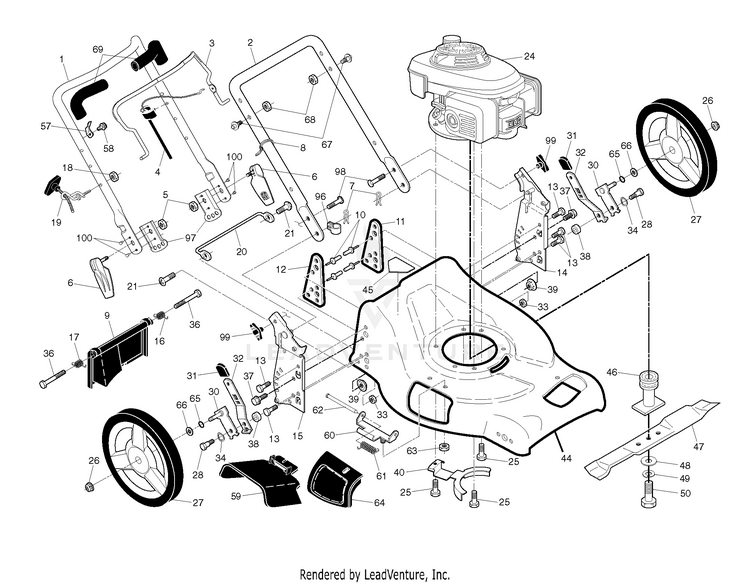

FRAME & ENGINE

...
...
69
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) HUS-532182748
...
64
DOOR.MULCH.21.REAR.FWGD HUS-532185576
...
46
ADAPTER.BLADE.25MM.VS.LOW.CUT HUS-583478001
...
68
NUT.LOCK.5/16-18 HUS-532751153
...
39
GSPW Hardware HUS-596039201
...
99
HANDLE.KNOB.BLACK HUS-532185577
...
16
SPRING.REAR.DOOR.EZ.21.LT LH HUS-532405417
...
25
BOLT 3/8-16X1-1/8 HUS-532150406
...
27
WHEEL.12X1.75.CF H3SPK.RAD3.BB HUS-585911001
...
60
BRACKET.ASM.HINGE.21.FWGD. HUS-532175735
...
7
HAIRPIN COTTER HUS-532051793
...
12
BRACKET.SUPRT.RH.21.FWGD RH HUS-532410542
...
31
SELECTOR KNOB HUS-532701037
...
21
HUS-817640416
...
66
WASHER.FLAT.1/2 HUS-532088348
...
19
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
49
Washers HUS-596238701
...
62
ROD.HINGE.21 HUS-532175650
...
63
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
9
DOOR.REAR.PLASTIC.21.FWGD HUS-532401812
...
59
DISCHARGE DEFLECTOR HUS-532175071
...
18
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
6
QUICK.ASM.RELEASE.BLACK HUS-532430679
...
100
RIVET HUS-532199697
...
xx
DECAL.INTRN.SELF-PROPELLED NOT SHOWN HUS-583119801
...
11
BRACKET.SUPPORT.LH.21.FWGD LH HUS-532406573
...
14
BRACKET.ASM.HDL.LT.21FGD.HW.OR LH HUS-532434550
...
17
SPRING.REAR.DOOR.EZ.21.RT RH HUS-532405418
...
30
ARM.ASM.AXLE.REAR.5/9.POS.BZP REAR HUS-532413141
...
34
WASHER.CURVED.CYLINDRICAL HUS-532401630
...
44
KIT.HSG.21.FWGD.MC.505 (Includes Key Numbers 10, 11, 12 and 45) HUS-583332501
...
57
BRACKET.UPSTOP.RT HUS-532430034
...
98
Bolts HUS-596136401
...
26
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
58
SCREW HUS-532750634
...
10
RIVET BLIND HUS-532128415
...
48
WASHER,HARDEN HUS-532851074
...
65
O-RING..070X.487.NEOPRENE HUS-532197480
...
45
DECAL.CUTFINGER.CE.02 HUS-581579101
...
5
NUT.LOCK.5/16-18 HUS-532751153
...
61
SPRING.TORSION HUS-532193000
...
13
SCREW 14-20 X 5/8 HUS-817060410
...
8
WIRE TIE HUS-532007192
...
97
BRACKET.ADJ.3POS.GREY HUS-532413534
...
67
STUD.QUICK.ADJUST HUS-532199255
...
96
CLIP.CABLE.BLK HUS-532197991
...
40
BRACKET.KEEPER.BELT HUS-532425711
...
32
SPRING.SELECTOR.EXTEN.5POS.BZP HUS-532401626
...
4
CABLE.ASM.ZONE.CONTROL HUS-532415350
...
20
FOOT.GUARD.21.DOM/FGD.CE.10 HUS-532436119
...
24
HONDA GCV160-AS3H2-EA HUS-000000000
...
37
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
36
BOLT HUS-532184193
...
15
BRACKET.ASM.HDL.RT.21FGD.HW.N RH HUS-532434549
...
28
Hardware HUS-596203801
...
33
Hardware HUS-596040501
...
xx
DECAL.INTERN.4.SYMBOL.CURVED NOT SHOWN HUS-532182191
...
2
HANDLE.LOWER.21.NB.GREY HUS-532439719
...
50
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
3
BAIL.CONTROL.MZR.BS.ORANGE HUS-532426812
...
47
BLADE.21.PUSH HUS-532199377
...
38
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
1
HANDLE.ASM.UP.W/ADJ.BKT.21FGD HUS-583848601
