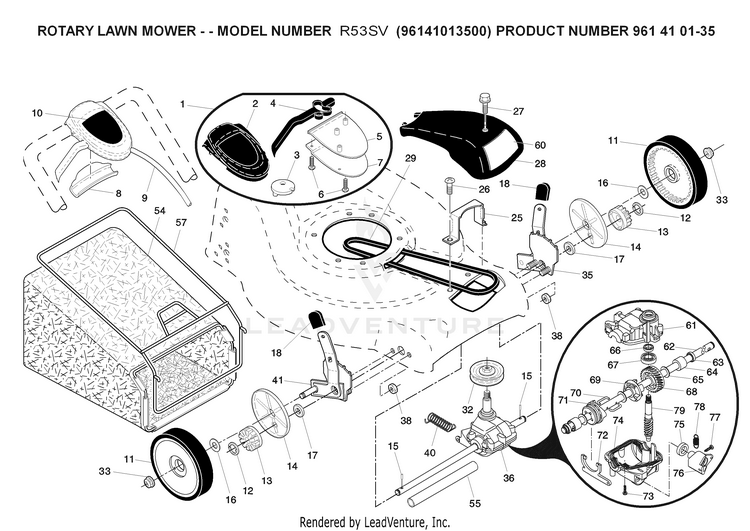

Husqvarna R53 SV - 96141013500 (2007-03) Walk Behind Mower

Model: R53 SV - 96141013500 (2007-03)

Back To Assemblies

Save Part Not Listed?
product name

DRIVE

...
...
75
SEAL HUS-532196880
...
36
TRANSMISSION.21RD HUS-532188296
...
17
BEARING.SUPPORT.ASM HUS-587070202
...
28
COVER.DRIVE.ASM.185579.CE.WALK HUS-532432664
...
64
BUSHING HUS-532183511
...
3
PULLEY.CAM.DRIVE.CONTROL.HV HUS-532187353
...
73
SCREW HUS-532183513
...
11
WHEEL.8X1.75.MAG2.RAD3.GREY HUS-583719501
...
6
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
14
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
70
WIRE, FORMED (15966) HUS-532183505
...
67
BEARING HUS-532183506
...
57
FRAME.GBAG.21.FWGD HUS-532411950
...
40
SPRING RETURN HUS-532192849
...
10
DECAL, DRIVE HUS-532189378
...
35
RP KIT.ADJUSTER.ASM. HUS-532409097
...
32
RP PULLEY.DRIVE.EZ/VAR.SCREWON HUS-532443262
...
79
SHAFT INPUT (13041) HUS-532183502
...
62
SHAFT.OUTPUT HUS-532196885
...
76
LEVER HUS-532196879
...
69
CLUTCH HUS-532196884
...
13
PINION.14.TEETH.FGD HUS-532403849
...
54
Grassbag Assembly HUS-532401903
...
5
KIT.CONTROL.DR.CASE.HALVES.BLK HUS-583337801
...
12
E-RING 7/16 RE HUS-812000058
...
29
BELT.DRIVE.FGD. HUS-532196853
...
41
Kit, Wheel Adjuster, RH HUS-532409098
...
1
CONTROL.DR.EZ.FWGD.SHORT.GY/BL HUS-532196270
...
66
SEAL INPUT SHAFT HUS-532183514
...
72
FORK HUS-532196882
...
16
WASHER FLUT HUS-532067725
...
63
SEAL.OUTPUT.SHAFT HUS-532183508
...
18
SELECTOR KNOB HUS-532701037
...
25
KEEPER.BELT.21.EZ.FWGD HUS-532199089
...
26
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
74
GEARCASE.HOUSING.LOWER HUS-532196881
...
60
DECAL DRIVE COVER HUS-532193557
...
65
WASHER HUS-532183509
...
78
SPRING. HUS-532196877
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
9
CABLE.ASM. HUS-532196180
...
7
BRACKET.DRIVE.CONTROL.MOUNT.BL HUS-532400723
...
2
KIT.CONTROL.DR.CASE.HALVES.GRY HUS-532414555
...
27
SCREW, HEX HD TAPPING #10-24 1 HUS-532175262
...
4
LEVER.SHORT.BLACK.EZ.WALK HUS-532425583
...
68
GEAR.27.TEETH.WALK.MOWER HUS-532183499
...
38
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
55
DRIVESHAFT COVER HUS-532175739
...
71
CLUTCH HUS-532196883
...
77
SCREW.LEVER. HUS-532196878
...
8
EZ WALK SNAP COVER PLATE HUS-532186297
...
15
PAWL, DRIVE HUS-532404845
...
61
GEARCASE.HOUSING HUS-532196886
