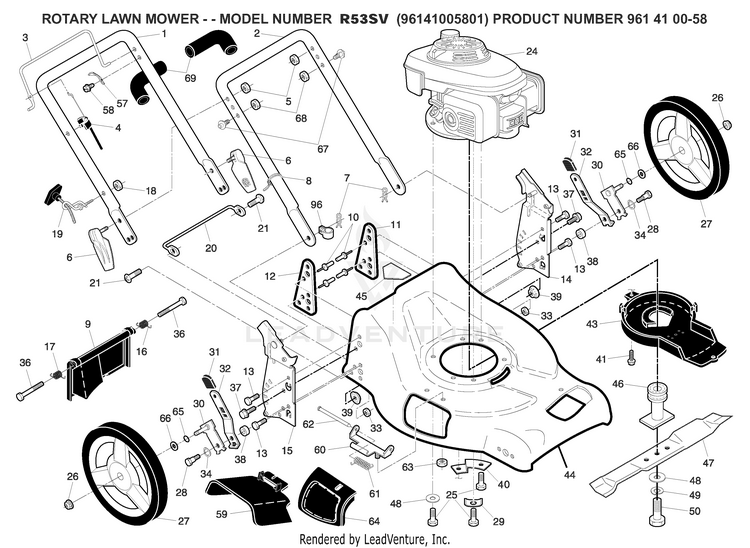

Husqvarna R53 SV - 96141005801 (2008-02) Walk Behind Mower

Model: R53 SV - 96141005801 (2008-02)

Back To Assemblies

Save Part Not Listed?
product name

PRODUCT COMPLETE 2

...
...
6
HANDLE KNOB ASM,QUICK REL BLK HUS-532432018
...
29
WASHER.ENGINE.BZP HUS-532125078
...
57
BRACKET.UPSTOP HUS-532850733
...
59
DISCHARGE DEFLECTOR HUS-532175071
...
66
WASHER.FLAT.1/2 HUS-532088348
...
44
KIT.HSG.21.FWGD.MC.505 HUS-583332501
...
15
BRACKET.ASM.HNDL.RT.21.FGD.HW HUS-532434512
...
19
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
46
Blade Adapter / Pulley HUS-532197752
...
36
BOLT HUS-532184193
...
37
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
1
NEEDS DESCRIPTION HUS-532416840
...
17
SPRING.REAR.DOOR.EZ.21.RT HUS-532405418
...
-
NEEDS DESCRIPTION HUS-532400120
...
7
HAIRPIN COTTER HUS-532051793
...
60
BRACKET.ASM.HINGE.21.FWGD. HUS-532175735
...
47
BLADE.21.PUSH HUS-532199377
...
27
WHEEL.12X1.75.CF H3SPK.RAD3.BB HUS-585911001
...
25
BOLT 3/8-16X1-1/8 HUS-532150406
...
21
HUS-817640416
...
5
NEEDS DESCRIPTION HUS-532415351
...
63
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
40
BRACKET.DEBRIS.SHIELD.BZP HUS-532188839
...
34
WASHER.CURVED.CYLINDRICAL HUS-532401630
...
16
SPRING.REAR.DOOR.EZ.21.LT HUS-532405417
...
32
SPRING.SELECTOR.EXTEN.5POS.BZP HUS-532401626
...
3
BAIL.DSTRT.FL.AW.CREAS.ORANGE HUS-532197019
...
18
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
10
RIVET BLIND HUS-532128415
...
9
DOOR.REAR.PLASTIC.21.FWGD HUS-532401812
...
30
ARM.ASM.AXLE.REAR.5/9.POS.BZP HUS-532413141
...
62
ROD.HINGE.21 HUS-532175650
...
64
DOOR.MULCH.21.REAR.FWGD HUS-532185576
...
58
SCREW HUS-532750634
...
-
NEEDS DESCRIPTION HUS-532400121
...
4
CABLE.ENGINE BRAKE.MZR HUS-532183567
...
2
HANDLE.LOWER.ECON.PNT HUS-532417031
...
39
GSPW Hardware HUS-596039201
...
11
BRACKET.SUPPORT.LH.21.FWGD HUS-532406573
...
31
SELECTOR KNOB HUS-532701037
...
14
BRACKET.ASM.HNDL.LT.21.FGD.HW HUS-532434513
...
33
Hardware HUS-596040501
...
-
DECAL.INTERN.4.SYMBOL.CURVED HUS-532182191
...
65
O-RING..070X.487.NEOPRENE HUS-532197480
...
96
CLIP.CABLE.BLK HUS-532197991
...
20
NEEDS DESCRIPTION HUS-532413543
...
26
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
12
BRACKET.SUPRT.RH.21.FWGD HUS-532410542
...
61
SPRING.TORSION HUS-532193000
...
41
SCREW.HEX.WSH HUS-532192325
...
43
KIT.BLADE.ADAPTOR.BELT.GUIDE. HUS-532443950
...
38
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
48
WASHER,HARDEN HUS-532851074
...
68
NUT.LOCK.5/16-18 HUS-532751153
...
45
DECAL.CUTFINGER.CE.02 HUS-581579101
...
13
SCREW 14-20 X 5/8 HUS-817060410
...
69
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) HUS-532182748
...
49
Washers HUS-596238701
...
8
WIRE TIE HUS-532007192
...
50
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
28
Hardware HUS-596203801
...
67
STUD.QUICK.ADJUST HUS-532199255
