Husqvarna R53 - 96131002313 (2012-11) Walk Behind Mower

Model: R53 - 96131002313 (2012-11)

Save Part Not Listed?
product name

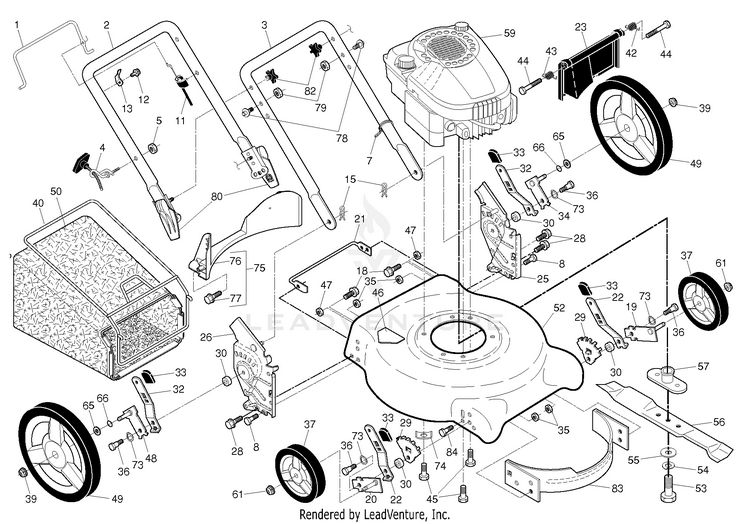

FRAME & ENGINE

...
...
54
Washers HUS-596238701
...
80
QUICK.ASM.RELEASE.BLACK HUS-532430679
...
32
SPRING.SEL.22.ECON.HI-WHL.RATO HUS-532441559
...
59
B&S 122T02-1614-H1 FOR SERVICE & PARTS 1-800-233-3723 HUS-000000000
...
47
HUS-873751153
...
7
WIRE TIE HUS-532007192
...
82
KNOB.HANDLE.PLASTIC.STAR.BLACK HUS-532182398
...
12
SCREW HUS-532178848
...
xx
DECAL.INTERN.4.SYMBOL.CURVED NOT SHOWN HUS-532182191
...
23
DOOR.REAR.21.DOMED.498 HUS-581425601
...
65
WASHER.FLAT.1/2 HUS-532088348
...
76
BAFFLE.REAR.PLASTIC.21.RD.ECON HUS-532410589
...
73
WASHER.CURVED.CYLINDRICAL HUS-532401630
...
61
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
42
SPRING.LH.22.REAR.DOOR.EZ.EMPT LH HUS-532405421
...
56
BLADE.21.PUSH HUS-532199377
...
78
STUD.QUICK.ADJUST HUS-532199255
...
21
FOOT.GUARD.21.DOM/FGD.CE.10 HUS-532436119
...
45
BOLT 3/8-16X1-1/8 HUS-532150406
...
52
KIT.HSG.21.RD.DOME.ORG.CE HUS-583561901
...
4
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
36
Hardware HUS-596203801
...
49
WHEEL.12X1.75.CF H3SPK.RAD3.TB HUS-585911002
...
55
WASHER,HARDEN HUS-532851074
...
43
SPRING.RH.22.REAR.DOOR.EZ. RH HUS-532405423
...
29
BRACKET.ADJ.5POS.ADS HUS-532407494
...
40
FRAME.BAG.21.REAR.DOMED.PUSH HUS-532411949
...
13
BRACKET.UPSTOP.RT HUS-532430034
...
5
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
3
HANDLE.LOWER.ECON.PNT HUS-532417031
...
50
GBAG.24710010.BLK.GEN HUS-581002101
...
18
SCREW 1/4X20 HUS-817600406
...
83
BAFFLE.FRONT.21.DOME.US HUS-532428501
...
2
HUS-532420829
...
26
BRACKET.ASM.HAND.HW.21.RT.498 RH HUS-580915703
...
34
ARM.ASM.AXLE..LR.5/9.POS.BZP HUS-532401176
...
15
HAIRPIN COTTER HUS-532051793
...
66
O-RING..070X.487.NEOPRENE HUS-532197480
...
28
SCREW 14-20 X 5/8 HUS-817060410
...
77
SCREW.HX.13X.750 HUS-817411312
...
84
BOLT.5/16HEX.WHS.HD HUS-817000510
...
30
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
39
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
22
SPRING.SELECTOR.5POS.BZP HUS-532401621
...
79
NUT.LOCK.5/16-18 HUS-532751153
...
37
WHEEL.8.1.75,H3SPK.RAD3.GY.TB1 HUS-532401272
...
75
KIT.BAFFLE.REAR.PLASTIC.21.RD HUS-532413693
...
44
BOLT HUS-532184193
...
57
ADAPTER.BLADE.W/KEY.25MM.CE HUS-532418373
...
11
CABLE.MZR.22.2012 HUS-532440934
...
46
DECAL.CUTFINGER.CE.02 HUS-581579101
...
33
SELECTOR KNOB HUS-532701037
...
19
ARM.ASM.AXLE.5/9.POS. FRONT, LEFT HUS-532401174
...
25
BRACKET.ASM.HAND.HW.21.LT.GREY LH HUS-580915603
...
74
WASHER.ENGINE.BZP HUS-532125078
...
1
BAIL.CONT.D.STRAIGHT.PUSH.ORAN HUS-532194176
...
48
ARM.ASM.AXLE..RR.5/9.POS.BZP HUS-532401177
...
8
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
20
ARM.ASM.AXLE.5/9.POS.BZP FRONT, RIGHT HUS-532401175
...
35
NUT.HEX.FL 5/16-18 TOP LCK BLK HUS-585802801
...
53
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
