Husqvarna R52 S - 96141006007 (2009-09) Walk Behind Mower

Model: R52 S - 96141006007 (2009-09)

Back To Assemblies

Save Part Not Listed?
product name

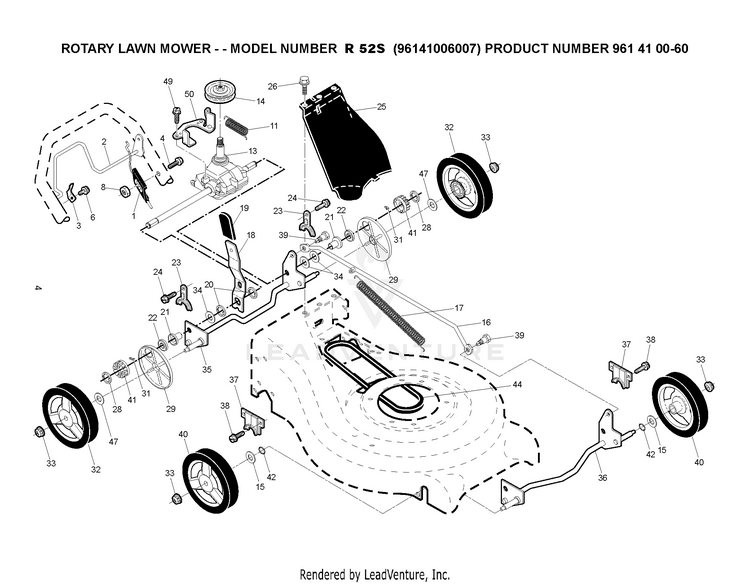

DRIVE

...
...
17
SPRING EXTENSION HUS-532409616
...
8
NUT.HEX.FLANGE.1/4 HUS-532191730
...
21
BEARING.ASM.RGD.AUTO.SP HUS-532404838
...
38
SCREW HUS-532163409
...
22
BEARING.SUPPORT.ASM HUS-587070202
...
34
WASHER HUS-532851226
...
25
COVER.DRIVE.21.RWGD.MO HUS-532400783
...
19
KNOB.EXT.ERGO.BLACK HUS-532190069
...
20
E-RING HUS-812000022
...
11
SPRING HUS-532406558
...
1
NEEDS DESCRIPTION HUS-532406531
...
15
WASHER.FLAT.1/2 HUS-532088348
...
37
RETAINER.FRONT.SHAFT HUS-532161463
...
40
WHEEL.8X1.75.H3SPK.RAD3.GY.BB1 HUS-532401273
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
23
RETAINER DRIVE ASM. STMP. HUS-532161118
...
41
PINIION.14.TOOTH.RGD HUS-532404835
...
6
SCREW HUS-532750634
...
42
O-RING..070X.487.NEOPRENE HUS-532197480
...
4
SCREW HUS-532199687
...
24
SCREW 14-20 X 5/8 HUS-817060410
...
26
SCREW HUS-532750634
...
28
E-RING 7/16 RE HUS-812000058
...
3
BRKT, DOWNSTOP (RH) HUS-532161478
...
16
ROD.CONNECTING.SPT.BLACK HUS-532407147
...
18
SPRING.SELECTOR.SPT.21.BZP HUS-532418835
...
47
WASHER FLUT HUS-532067725
...
32
WHEEL.8X1.75.3SPK.RAD3.GREY HUS-581685101
...
31
PAWL, DRIVE HUS-532404845
...
2
NEEDS DESCRIPTION HUS-532417821
...
35
SHAFT.ASM.REAR.TORQUE.BZP.8 HUS-532403102
...
29
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
44
BELT V3L 35.42, CLUTCHING COVE HUS-580364611
...
39
SHOULDER BOLT SEMI GIMLET PT. HUS-532407059
...
14
PULLEY.RGD.SS.3.25OP HUS-532405703
...
36
SHAFT.ASM.FRONT.TORQUE.BZP. HUS-532407175
...
49
SCREW HUS-532163409
...
13
TRANSMISSION.21.RWGD HUS-532419213
...
50
BRACKET.BELT.KEEPE/AUTO.SS.BZP HUS-583742001
