Husqvarna R52 S - 96141006003 (2007-05) Walk Behind Mower

Model: R52 S - 96141006003 (2007-05)

Save Part Not Listed?
product name

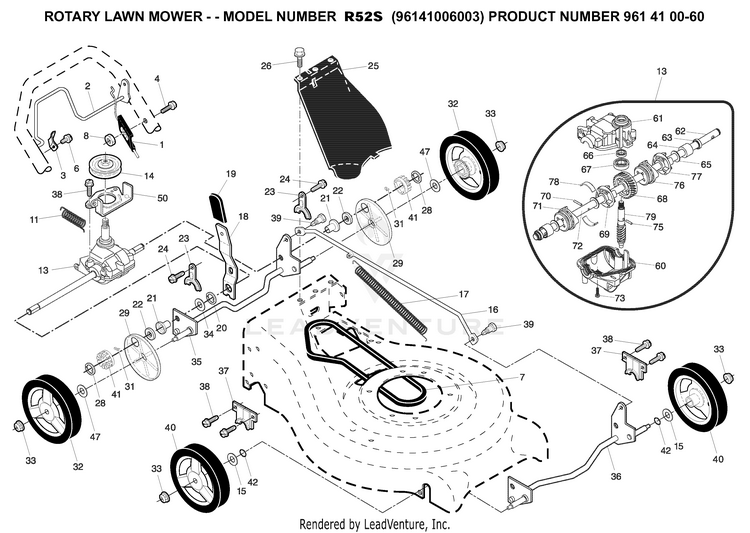

PRODUCT COMPLETE

...
...
69
DOG.FIXED.LH.32003 HUS-532412739
...
65
WASHER HUS-532183509
...
1
NEEDS DESCRIPTION HUS-532406531
...
31
PAWL, DRIVE HUS-532404845
...
70
PIN 7 33732 HUS-532412741
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
28
E-RING 7/16 RE HUS-812000058
...
67
BEARING HUS-532183506
...
13
TRANSMISSION.21.RWGD.AUTO.SP HUS-532404839
...
7
BELT V3L 35.42, CLUTCHING COVE HUS-580364611
...
72
SHAFT OUTPUT SHORT (12294) HUS-532412756
...
17
SPRING EXTENSION HUS-532409616
...
61
CASE UPPER HUS-532412736
...
73
SCREW HUS-532183513
...
77
DOG.MOVEABLE.RH.32006 HUS-532412743
...
39
SHOULDER BOLT SEMI GIMLET PT. HUS-532407059
...
26
SCREW HUS-532750634
...
63
SEAL.OUTPUT.SHAFT HUS-532183508
...
24
SCREW HUS-532057808
...
16
ROD.CONNECTING.SPT.BLACK HUS-532407147
...
37
RETAINER.FRONT.SHAFT HUS-532161463
...
8
NUT.HEX.FLANGE.1/4 HUS-532191730
...
36
SHAFT.ASM.FRONT.TORQUE.BZP. HUS-532407175
...
47
WASHER FLUT HUS-532067725
...
66
SEAL INPUT SHAFT HUS-532183514
...
6
SCREW HUS-532750634
...
78
SPRING LEAF HUS-532410731
...
68
GEAR 28 TEETH HUS-532412742
...
38
SCREW HUS-532163409
...
3
BRKT, DOWNSTOP (RH) HUS-532161478
...
41
PINIION.14.TOOTH.RGD HUS-532404835
...
27
Washers HUS-596040101
...
11
SPRING HUS-532406558
...
62
SHAFT OUTPUT LONG HUS-532412757
...
50
BRACKET.BELT.KEEPE/AUTO.SS.BZP HUS-583742001
...
14
PULLEY.RGD.SS.3.25OP HUS-532405703
...
60
CASE, LOWER HUS-532412747
...
15
WASHER.FLAT.1/2 HUS-532088348
...
4
SCREW HUS-532199687
...
21
BEARING.ASM.RGD.AUTO.SP HUS-532404838
...
79
SHAFT WORM HUS-532412737
...
22
BEARING.SUPPORT.ASM HUS-587070202
...
76
DOG.FIXED.RH.32004 HUS-532412744
...
34
WASHER HUS-532851226
...
23
RETAINER DRIVE ASM. STMP. HUS-532161118
...
64
BUSHING HUS-532183511
...
19
KNOB.EXT.ERGO.BLACK HUS-532190069
...
18
SPRING.SELECTOR.SPT.21.BZP HUS-532418835
...
42
O-RING..070X.487.NEOPRENE HUS-532197480
...
25
COVER.DRIVE.21.RWGD.MO HUS-532400783
...
35
SHAFT.ASM.REAR.TORQUE.BZP.8 HUS-532403102
...
20
E-RING HUS-812000022
...
32
WHEEL.8X1.75.3SPK.RAD3.GREY HUS-581685101
...
40
WHEEL.8X1.75.H3SPK.RAD3.GY.BB1 HUS-532401273
...
29
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
71
DOG.MOVEABLE.LH.32005 HUS-532412740
...
2
NEEDS DESCRIPTION HUS-532188760
...
75
PIN 3.50.337 - 33733 HUS-532412746

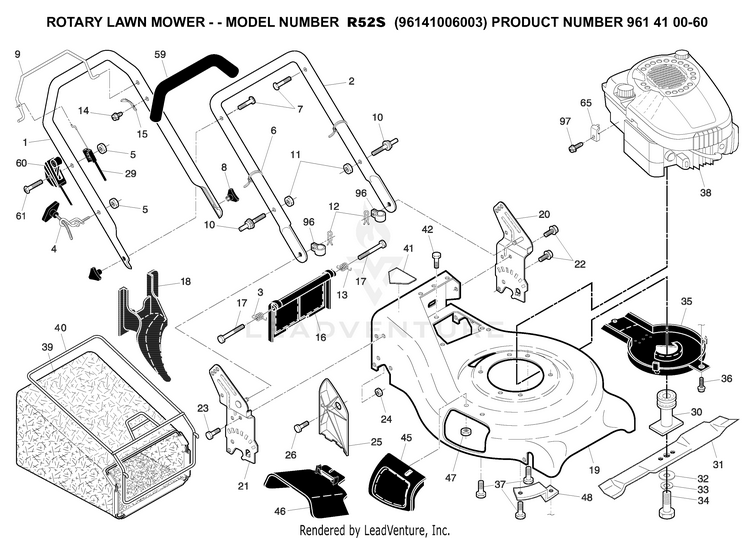

PRODUCT COMPLETE 2

...
...
15
BRACKET.UPSTOP HUS-532850733
...
37
BOLT 3/8-16X1-1/8 HUS-532150406
...
19
NEEDS DESCRIPTION HUS-532400800
...
24
Hardware HUS-596040501
...
46
DEFLECTOR.21.MCUT.RWGD.GRAY HUS-532169699
...
26
SCREW HUS-532163409
...
36
SCREW.HEX.WSH HUS-532192325
...
20
BRKT.ASM.HNDL.21.RWGD.LT.BLACK HUS-532193917
...
1
HANDLE.UP.DLX.COMF.W/GRIP.GREY HUS-532169369
...
3
SPRING.RH.REAR.DOOR.21.RWGD HUS-532405416
...
29
ENGINE ZONE CONTROL HUS-532133107
...
25
CLIPPING DEFLECTOR HUS-532161333
...
9
BAIL.CONT.COMF.PUSH.ORGANGE.RH HUS-532411083
...
18
PLUG.MULCHER.RGD.21. HUS-532198170
...
42
SCREW HUS-532054583
...
97
SCREW.HEX.HEAD.WASHER.10-16 HUS-532083816
...
40
FRAME.GBAG.21.RWGD.SC HUS-532411951
...
4
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
31
BLADE.21.PUSH HUS-532199377
...
60
CONTRL.THROTTLE. HUS-532182154
...
65
CABLE CLAMP(ENGINE) HUS-532111190
...
41
DECAL.CUTFINGER.CE.02 HUS-581579101
...
2
HANDLE.LOWER.21.GREY HUS-532197202
...
10
BOLT HUS-532188821
...
16
DOOR.REAR.21.RWGD HUS-532401815
...
-
DECAL.INTRN.SELF-PROPELLED HUS-583119801
...
96
CLIP.CABLE.BLK HUS-532197991
...
23
Screws HUS-596031601
...
34
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
47
NUT HUS-532088349
...
22
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
17
BOLT HUS-532184193
...
21
BRKT.ASM.HNDL HUS-532194031
...
7
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
11
NUT.CENTERLOCK.5/16- HUS-873930500
...
59
GRIP.HANDLE.FOAM.438MM HUS-585161003
...
6
WIRE TIE HUS-532007192
...
35
DEBRIS SHEILD HUS-532188786
...
14
SCREW HUS-532750634
...
33
Washers HUS-596238701
...
8
KNOB HUS-532087692
...
48
BRACKET.DEBRIS.SHIELD.BZP HUS-532188839
...
30
ADAPTER.BLADE/PULLEY.25M HUS-532421176
...
39
NEEDS DESCRIPTION HUS-532410468
...
13
SPRING.LH.REAR.DOOR.21.RWGD HUS-532405415
...
12
HAIRPIN COTTER HUS-532051793
...
61
SCREW HUS-532183365
...
45
DOOR.ASM.MULCH.21.RWD HUS-532183058
...
32
WASHER,HARDEN HUS-532851074
...
5
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
