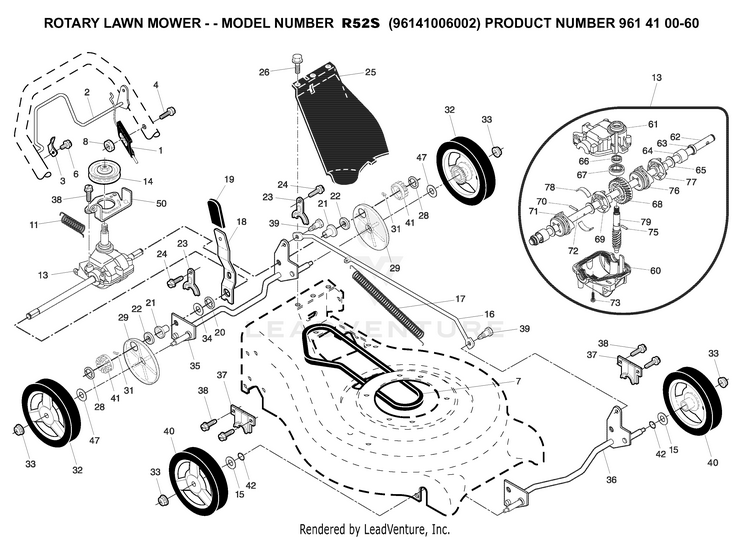

Husqvarna R52 S - 96141006002 (2007-05) Walk Behind Mower

Model: R52 S - 96141006002 (2007-05)

Back To Assemblies

Save Part Not Listed?
product name

PRODUCT COMPLETE 2

...
...
50
NEEDS DESCRIPTION HUS-532414104
...
25
COVER.DRIVE.21.RWGD.MO HUS-532400783
...
40
WHEEL.8X1.75.H3SPK.RAD3.GY.BB1 HUS-532401273
...
63
SEAL.OUTPUT.SHAFT HUS-532183508
...
41
PINIION.14.TOOTH.RGD HUS-532404835
...
27
Washers HUS-596040101
...
26
SCREW HUS-532750634
...
42
O-RING..070X.487.NEOPRENE HUS-532197480
...
36
SHAFT.ASM.FRONT.TORQUE.BZP. HUS-532407175
...
21
BEARING.ASM.RGD.AUTO.SP HUS-532404838
...
11
SPRING HUS-532406558
...
37
RETAINER.FRONT.SHAFT HUS-532161463
...
62
SHAFT OUTPUT LONG HUS-532412757
...
23
RETAINER DRIVE ASM. STMP. HUS-532161118
...
18
SPRING.SELECTOR.SPT.21.BZP HUS-532418835
...
3
BRKT, DOWNSTOP (RH) HUS-532161478
...
4
SCREW HUS-532199687
...
24
SCREW HUS-532057808
...
35
SHAFT.ASM.REAR.TORQUE.BZP.8 HUS-532403102
...
65
WASHER HUS-532183509
...
31
PAWL, DRIVE HUS-532404845
...
14
PULLEY.1.PIECE HUS-532193443
...
73
SCREW HUS-532183513
...
20
E-RING HUS-812000022
...
16
ROD.CONNECTING.SPT.BLACK HUS-532407147
...
75
PIN 3.50.337 - 33733 HUS-532412746
...
47
WASHER FLUT HUS-532067725
...
15
WASHER.FLAT.1/2 HUS-532088348
...
67
BEARING HUS-532183506
...
6
SCREW HUS-532750634
...
32
WHEEL.8X1.75.3SPK.RAD3.GREY HUS-581685101
...
66
SEAL INPUT SHAFT HUS-532183514
...
13
TRANSMISSION.21.RWGD.AUTO.SP HUS-532404839
...
28
E-RING 7/16 RE HUS-812000058
...
72
SHAFT OUTPUT SHORT (12294) HUS-532412756
...
22
BEARING.SUPPORT.ASM HUS-587070202
...
17
SPRING EXTENSION HUS-532409616
...
2
NEEDS DESCRIPTION HUS-532188760
...
19
KNOB.S/P.RWGD.EXT.ERGO.GREY HUS-532189808
...
78
SPRING LEAF HUS-532410731
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
76
DOG.FIXED.RH.32004 HUS-532412744
...
64
BUSHING HUS-532183511
...
60
CASE, LOWER HUS-532412747
...
39
SHOULDER BOLT SEMI GIMLET PT. HUS-532407059
...
69
DOG.FIXED.LH.32003 HUS-532412739
...
29
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
38
SCREW HUS-532163409
...
70
PIN 7 33732 HUS-532412741
...
79
SHAFT WORM HUS-532412737
...
61
CASE UPPER HUS-532412736
...
7
BELT.RGD.VS HUS-532406580
...
8
NUT.HEX.FLANGE.1/4 HUS-532191730
...
71
DOG.MOVEABLE.LH.32005 HUS-532412740
...
1
NEEDS DESCRIPTION HUS-532406531
...
68
GEAR 28 TEETH HUS-532412742
...
34
WASHER HUS-532851226
...
77
DOG.MOVEABLE.RH.32006 HUS-532412743
