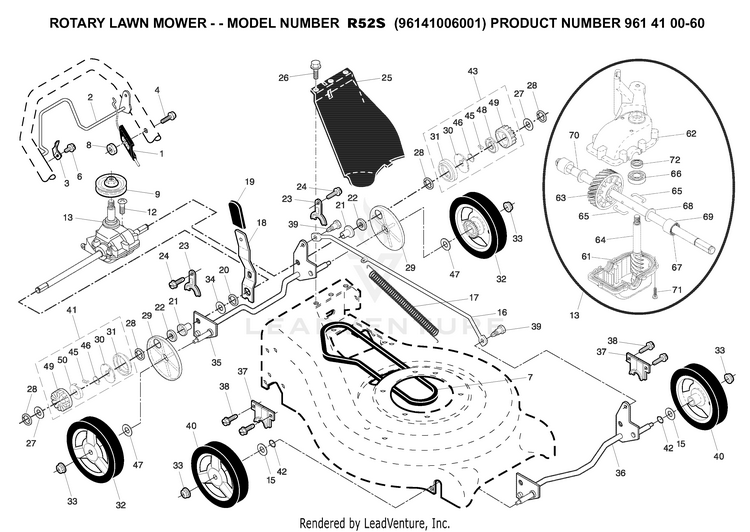

Husqvarna R52 S - 96141006001 (2007-05) Walk Behind Mower

Model: R52 S - 96141006001 (2007-05)

Back To Assemblies

Save Part Not Listed?
product name

PRODUCT COMPLETE 2

...
...
41
Screws HUS-596437001
...
28
CABLE T HUS-532004207
...
34
SWITCH LT HUS-532110712
...
79
BULB HOLDER ASM. HUS-532175242
...
29
SWITCH.SEAT.DP W/RAMPS HUS-532192749
...
92
HARNESS.PIGTAIL.CONSLE HUS-532196615
...
43
Solenoids HUS-582042802
...
33
KEY.CHAIN.BLISTER.PACK.GEN.INT HUS-532411935
...
22
LIGHTBULB HUS-532004152
...
2
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
25
CABLE BATTERY HUS-532146147
...
94
MODULE.REVERSE.ROS HUS-532191834
...
93
Bolts HUS-596039601
...
27
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
1
BATTERY.DRY.30.AMP HUS-532123899
...
8
BOX.BATTERY.FENDER HUS-532176689
...
21
HARNESS.W/LIGHT SOCKET HUS-532175688
...
16
SWITCH INTERLOOK PUSH-IN HUS-532176138
...
42
COVER.TERMINAL.RED HUS-532154336
...
40
HARNESS.IGN.CABLE.REG. HUS-532197428
...
90
COVER.TERMINAL.BATTERY HUS-532435395
...
26
FUSE 20AMP HUS-532175158
...
30
SWITCH.IGN.DELTA.W.LGH.ROS HUS-532193350
...
24
BATTERY CABLE HUS-532004799
