Husqvarna R52 S - 95417021502 (2005-08) Walk Behind Mower

Model: R52 S - 95417021502 (2005-08)

Back To Assemblies

Save Part Not Listed?
product name

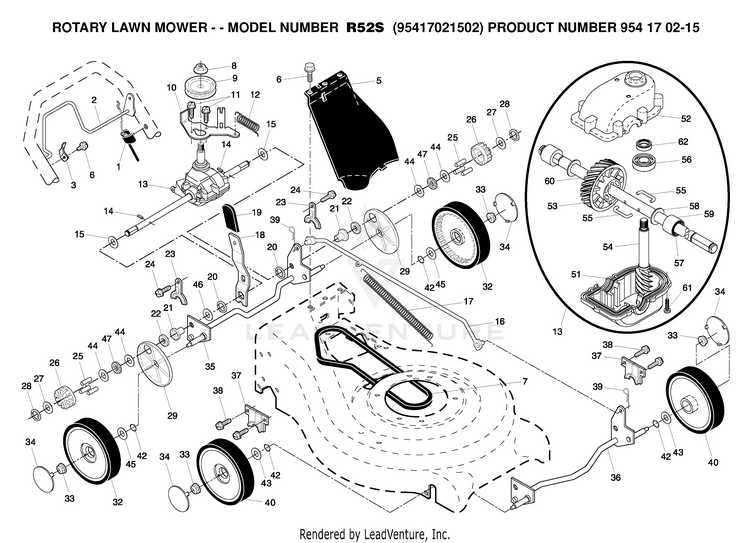

WHEEL & DEPTH STAKE ASSEMBLY

...
...
12
NEEDS DESCRIPTION HUS-532187627
...
1
KIT.CABLE.DR.21.RWGD.SS HUS-532405995
...
11
SCREW HUS-532163409
...
43
WASHER.FLAT.1/2 HUS-532088348
...
10
BELT GUIDE HUS-532164553
...
9
PULLEY HUS-532163939
...
32
KIT.WHL.9X2.RAD.BLK(SERV ONLY) HUS-532193139
...
35
SHAFT.ASM.REAR.TORQUE.BZP.8 HUS-532403102
...
18
SPRING.SELECTOR.SPT.21.BZP HUS-532418835
...
52
GEARCASE.HOUSING HUS-532191245
...
39
RETAINER CLIP HUS-532700279
...
23
RETAINER DRIVE ASM. STMP. HUS-532161118
...
29
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
44
WASHER.BELLEVILLE (3 2 LB) HUS-532062335
...
45
WASHER FLUT HUS-532067725
...
6
SCREW HUS-532750634
...
36
SHAFT.ASM.FRONT.TORQUE.BZP. HUS-532407175
...
21
BEARING SUPPORT.ASM HUS-532169920
...
2
NEEDS DESCRIPTION HUS-532188760
...
57
SEAL.OUTPUT.SHAFT HUS-532183508
...
54
SHAFT INPUT HUS-532187533
...
26
PINION.DRIVE.WALK HUS-532166450
...
25
PAWL.DRIVE.ETCHED HUS-532170011
...
42
O-RING..070X.487.NEOPRENE HUS-532197480
...
61
SCREW HUS-532183513
...
62
SEAL INPUT SHAFT HUS-532183514
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
22
BEARING, BALL HUS-532169911
...
58
WASHER HUS-532183509
...
47
WASHER HUS-532088118
...
24
SCREW HUS-532057808
...
51
CASE, LOWER HUS-532187530
...
3
BRKT, DOWNSTOP (RH) HUS-532161478
...
19
KNOB.EXT.ERGO.BLACK HUS-532190069
...
5
COVER.DRIVE.21.RWGD.MO HUS-532400783
...
60
NEEDS DESCRIPTION HUS-532191248
...
27
Washers HUS-596040101
...
13
TRANSMISSION.21.RWGD.FRANCE HUS-532188295
...
17
SPRING EXTENSION HUS-532409616
...
37
RETAINER.FRONT.SHAFT HUS-532161463
...
16
KIT.ROD.CONNECTING.REPL.161584 HUS-532414284
...
40
WHEEL.8X1.75.CF5SPK.RAD.BLACK HUS-532435276
...
14
PIN.SPRING.THRUST HUS-532145354
...
59
BUSHING HUS-532183511
...
53
GEAR.24.TOOTH.WALK.MOWER HUS-532187532
...
34
CAP.HUB.ARC.SPOKE.8".LP HUS-532150182
...
15
THRUST WASHER HUS-532057079
...
20
E-RING HUS-812000022
...
55
WIRE, FORMED (15966) HUS-532183505
...
7
V-BELT HUS-532160816
...
28
E-RING 7/16 RE HUS-812000058
...
56
BEARING HUS-532183506
...
46
WASHER.ZINC.PLATED HUS-819572216
...
8
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
