Husqvarna R52 S - 95417021501 (2005-02) Walk Behind Mower

Model: R52 S - 95417021501 (2005-02)

Save Part Not Listed?
product name

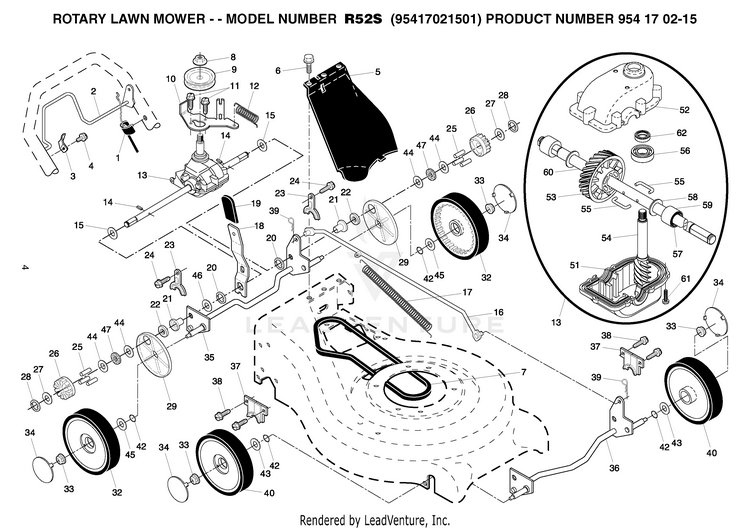

DRIVE

...
...
40
WHEEL.8X1.75.CF5SPK.RAD.BLACK HUS-532435276
...
5
COVER.DRIVE.21.RWGD.MO HUS-532400783
...
43
WASHER.FLAT.1/2 HUS-532088348
...
7
V-BELT HUS-532160816
...
60
NEEDS DESCRIPTION HUS-532191248
...
17
SPRING EXTENSION HUS-532409616
...
55
WIRE, FORMED (15966) HUS-532183505
...
53
GEAR.24.TOOTH.WALK.MOWER HUS-532187532
...
13
TRANSMISSION.21.RWGD.FRANCE HUS-532188295
...
58
WASHER HUS-532183509
...
3
BRKT, DOWNSTOP (RH) HUS-532161478
...
39
RETAINER CLIP HUS-532700279
...
1
KIT.CABLE.DR.21.RWGD.SS HUS-532405995
...
35
SHAFT.ASM.REAR.TORQUE.BZP.8 HUS-532403102
...
44
WASHER.BELLEVILLE (3 2 LB) HUS-532062335
...
2
NEEDS DESCRIPTION HUS-532188760
...
23
RETAINER DRIVE ASM. STMP. HUS-532161118
...
52
GEARCASE.HOUSING HUS-532191245
...
34
CAP.HUB.ARC.SPOKE.8".LP HUS-532150182
...
36
SHAFT.ASM.FRONT.TORQUE.BZP. HUS-532407175
...
16
KIT.ROD.CONNECTING.REPL.161584 HUS-532414284
...
45
WASHER FLUT HUS-532067725
...
27
Washers HUS-596040101
...
26
PINION.DRIVE.WALK HUS-532166450
...
22
BEARING, BALL HUS-532169911
...
54
SHAFT INPUT HUS-532187533
...
42
O-RING..070X.487.NEOPRENE HUS-532197480
...
29
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
18
SPRING.SELECTOR.SPT.21.BZP HUS-532418835
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
46
WASHER.ZINC.PLATED HUS-819572216
...
57
SEAL.OUTPUT.SHAFT HUS-532183508
...
20
E-RING HUS-812000022
...
32
KIT.WHL.9X2.RAD.BLK(SERV ONLY) HUS-532193139
...
21
BEARING SUPPORT.ASM HUS-532169920
...
24
SCREW HUS-532057808
...
37
RETAINER.FRONT.SHAFT HUS-532161463
...
47
WASHER HUS-532088118
...
59
BUSHING HUS-532183511
...
11
SCREW HUS-532163409
...
62
SEAL INPUT SHAFT HUS-532183514
...
6
SCREW HUS-532750634
...
25
PAWL.DRIVE.ETCHED HUS-532170011
...
19
KNOB.EXT.ERGO.BLACK HUS-532190069
...
4
SCREW HUS-532750634
...
51
CASE, LOWER HUS-532187530
...
14
PIN.SPRING.THRUST HUS-532145354
...
10
BELT GUIDE HUS-532164553
...
9
PULLEY HUS-532163939
...
56
BEARING HUS-532183506
...
12
NEEDS DESCRIPTION HUS-532187627
...
61
SCREW HUS-532183513
...
15
THRUST WASHER HUS-532057079
...
28
E-RING 7/16 RE HUS-812000058
...
8
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149

FRAME & ENGINE

...
...
34
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
13
SPRING.RH.REAR.DOOR.21.RWGD HUS-532186052
...
17
BOLT HUS-532184193
...
1
HANDLE.UP.DLX.COMF.W/GRIP.GREY HUS-532169369
...
4
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
37
BOLT 3/8-16X1-1/8 HUS-532150406
...
39
NEEDS DESCRIPTION HUS-532194052
...
47
NUT HUS-532088349
...
22
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
16
DOOR.REAR.PLASTIC.21.RWGD.BLAC HUS-532190574
...
15
BRACKET.UPSTOP HUS-532850733
...
- -
NEEDS DESCRIPTION HUS-532195484
...
8
KNOB HUS-532087692
...
- -
NEEDS DESCRIPTION HUS-532195485
...
20
BRKT.ASM.HNDL.21.RWGD.LT.BLACK HUS-532193917
...
2
HANDLE.LOWER.21.GREY HUS-532197202
...
65
CABLE CLAMP(ENGINE) HUS-532111190
...
21
BRKT.ASM.HNDL HUS-532194031
...
97
SCREW.HEX.HEAD.WASHER.10-16 HUS-532083816
...
29
ENGINE ZONE CONTROL HUS-532133107
...
5
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
60
CONTRL.THROTTLE. HUS-532182154
...
44
PULLEY.ENG.25MMM HUS-532184941
...
3
SPRING.LH.REAR.DOOR.21.RWGD HUS-532186053
...
41
DECAL.CUTFINGER.CE.02 HUS-581579101
...
10
BOLT HUS-532188821
...
11
NUT.CENTERLOCK.5/16- HUS-873930500
...
19
NEEDS DESCRIPTION HUS-532176937
...
43
HI-PRO KEY HUS-532187723
...
7
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
32
WASHER,HARDEN HUS-532851074
...
33
Washers HUS-596238701
...
40
FRAME.CATCHER.21.RGD.AG HUS-532194644
...
46
DEFLECTOR.21.MCUT.RWGD.GRAY HUS-532169699
...
61
SCREW HUS-532183365
...
- -
DECAL.INTRN.SELF-PROPELLED HUS-583119801
...
9
NEEDS DESCRIPTION HUS-532191819
...
30
ADAPTER.BLADE.W/KEY.25MM.CE HUS-532418373
...
14
SCREW HUS-532750634
...
35
NEEDS DESCRIPTION HUS-532189185
...
23
Screws HUS-596031601
...
42
SCREW HUS-532054583
...
45
DOOR.ASM.MULCH.21.RWD HUS-532183058
...
59
GRIP.HANDLE.FOAM.438MM HUS-585161003
...
31
NEEDS DESCRIPTION HUS-532175052
...
24
Hardware HUS-596040501
...
25
CLIPPING DEFLECTOR HUS-532161333
...
26
SCREW HUS-532163409
...
18
PLUG.MULCHER.RGD.21. HUS-532198170
...
12
HAIRPIN COTTER HUS-532051793
...
6
WIRE TIE HUS-532007192
