Husqvarna R52 - 954170040 (2002-06) Walk Behind Mower

Model: R52 - 954170040 (2002-06)

Save Part Not Listed?
product name

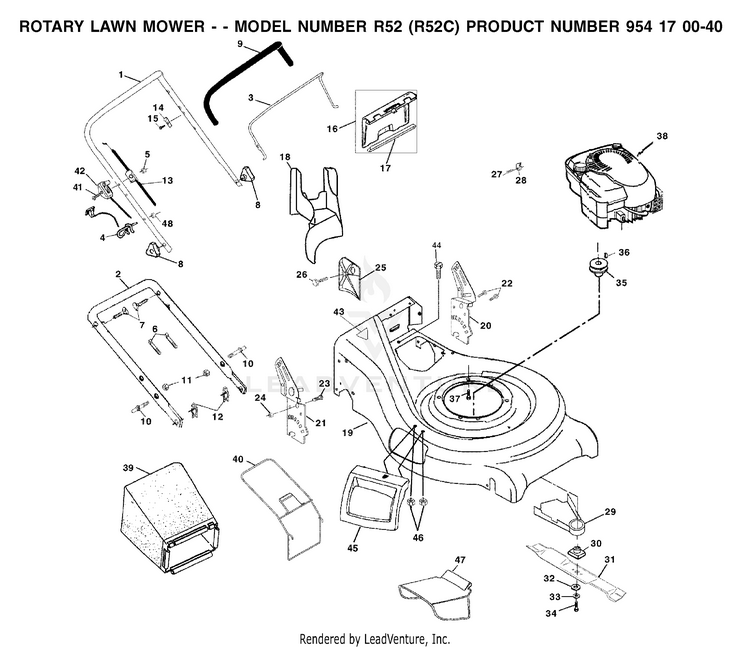

FRAME & ENGINE

...
...
39
NEEDS DESCRIPTION HUS-532183626
...
42
CONTRL.THROTTLE. HUS-532182154
...
19
NEEDS DESCRIPTION HUS-532176937
...
34
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
4
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
47
DEFLECTOR.21.MCUT.RWGD.GRAY HUS-532169699
...
28
CABLE CLAMP(ENGINE) HUS-532111190
...
36
HI PRO KEY PM WSL HUS-532087677
...
46
NUT HUS-532088349
...
24
Hardware HUS-596040501
...
9
GRIP.HANDLE.FOAM.438MM HUS-585161003
...
- -
NEEDS DESCRIPTION HUS-532176924
...
5
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
22
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
48
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
27
SCREW.HEX.HEAD.WASHER.10-16 HUS-532083816
...
29
SHIELD.DEBRIS.21.RWGD.EZ HUS-532182002
...
20
HANDLE, BRACKET ASM. LEFT HUS-532161568
...
25
CLIPPING DEFLECTOR HUS-532161333
...
15
SCREW.HEX.HEAD.WASHER.10-16 HUS-532083816
...
1
HANDLE, UPPER DLX COMF. (GRIP) HUS-532167163
...
10
BOLT HUS-532188821
...
7
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
23
Screws HUS-596031601
...
37
BOLT 3/8-16X1-1/8 HUS-532150406
...
21
BRACKET.ASM.HNDL.21.RWGD.EZ.RT HUS-532181020
...
8
KNOB HUS-532087692
...
16
KIT.DOOR.REAR.21.WRAPPED.BLACK HUS-532162085
...
11
Hardware HUS-596040501
...
40
FRAME.GRASS.CATCHER.21.RGD HUS-532180026
...
- -
DECAL.INTRN.SELF-PROPELLED HUS-583119801
...
12
HAIRPIN COTTER HUS-532051793
...
18
PLUG.MULCHER.RGD.21. HUS-532198170
...
6
WIRE TIE HUS-532007192
...
14
BRACKET.UPSTOP HUS-532850733
...
26
SCREW HUS-532163409
...
3
BAIL.CONT.COMF.PUSH.BLK HUS-532851659
...
32
WASHER,HARDEN HUS-532851074
...
43
DECAL.CUTFINGER.CE.02 HUS-581579101
...
35
ENGINE.PULLEY.FWG HUS-532084596
...
- -
NEEDS DESCRIPTION HUS-532176926
...
33
Washers HUS-596238701
...
45
DOOR.ASM.MULCH.21.RWD HUS-532183058
...
41
SCREW.PAN.HEAD HUS-532158755
...
17
SEAL.DOOR.21" (2 2MC) HUS-532189059
...
13
ENGINE ZONE CONTROL HUS-532133107
...
31
NEEDS DESCRIPTION HUS-532175052
...
30
BLADE ADAPTOR HUS-532851514
...
2
HANDLE.LOWER.21.GREY HUS-532197202
...
44
SCREW HUS-532054583

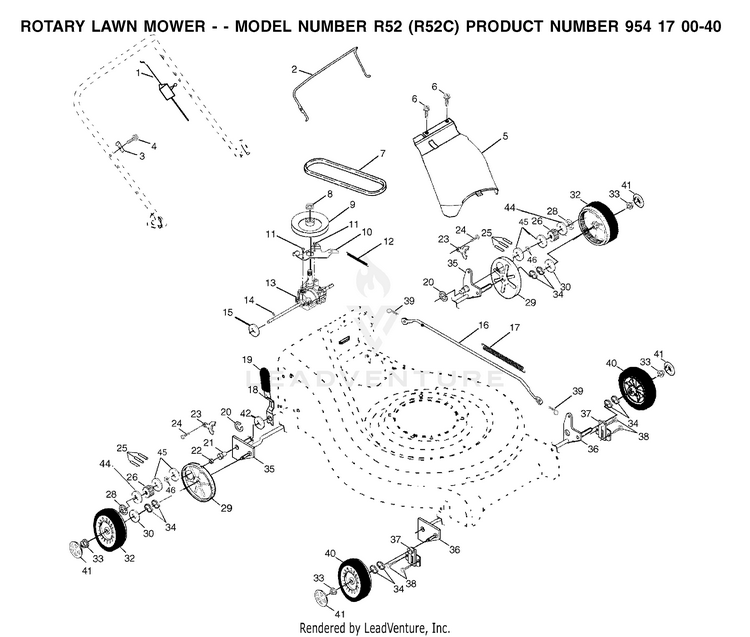

WHEELS & TIRES

...
...
35
SHAFT.ASM.REAR.TORQUE. HUS-532160785
...
45
WASHER.BELLEVILLE (3 2 LB) HUS-532062335
...
46
WASHER HUS-532088118
...
11
Screw, Hex Washer Head #10-24 x .668 HUS-817541011
...
28
E-RING 7/16 RE HUS-812000058
...
37
RETAINER.FRONT.SHAFT HUS-532161463
...
34
KIT.O-RING/WASHER HUS-532428450
...
24
SCREW HUS-532057808
...
6
SCREW HUS-532750634
...
42
WASHER.ZINC.PLATED HUS-819572216
...
18
SPRING, SELECTOR HUS-532160477
...
32
KIT.WHL.9X2.RAD.BLK(SERV ONLY) HUS-532193139
...
21
BEARING SUPPORT.ASM HUS-532169920
...
3
BRKT, DOWNSTOP (RH) HUS-532161478
...
26
PINION.DRIVE.WALK HUS-532166450
...
20
E-RING HUS-812000022
...
17
SPRING EXTENSION HUS-532409616
...
41
CAP.HUB.ARC.SPOKE.8".LP HUS-532150182
...
22
BEARING, BALL HUS-532169911
...
14
PIN.SPRING.THRUST HUS-532145354
...
1
CABLE.DRIVE.21.RWGD. HUS-532161587
...
29
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
9
PULLEY HUS-532163939
...
15
THRUST WASHER HUS-532057079
...
16
KIT.ROD.CONNECTING.REPL.161584 HUS-532414284
...
40
WHEEL.8X1.75.CF5SPK.RAD.BLACK HUS-532435276
...
10
BELT GUIDE HUS-532164553
...
25
PAWL.DRIVE.ETCHED HUS-532170011
...
39
RETAINER CLIP HUS-532700279
...
13
TRANSMISSION.21.RWGD.FRANCE HUS-532188295
...
4
SCREW.HEX.HEAD.WASHER.10-16 HUS-532083816
...
5
COVER.DRIVE.21.RWGD.MO HUS-532400783
...
38
SCREW HUS-532163409
...
19
KNOB.S/P.RWGD.EXT.ERGO.GREY HUS-532189808
...
7
V-BELT HUS-532160816
...
2
BAIL.CONT.DR.21.RWGD.BLACK HUS-532161473
...
12
SPRING HUS-532075192
...
8
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
36
SHAFT.ASM.FRONT.TORQUE.BZP. HUS-532407175
...
30
WASHER FLUT HUS-532067725
...
44
Washers HUS-596040101
...
23
RETAINER DRIVE ASM. STMP. HUS-532161118
