Husqvarna R52 - 954170040 (2001-03) Walk Behind Mower

Model: R52 - 954170040 (2001-03)

Back To Assemblies

Save Part Not Listed?
product name

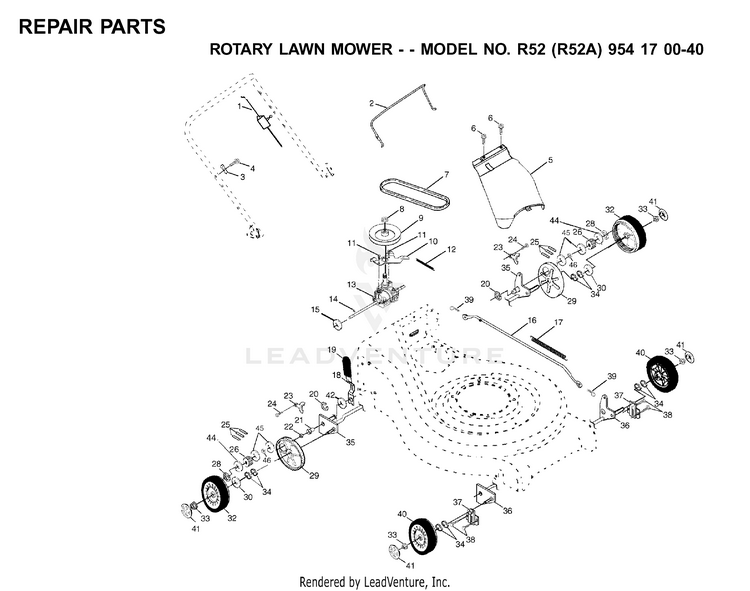

WHEELS & TIRES

...
...
32
WHEEL HUS-532162063
...
39
RETAINER CLIP HUS-532700279
...
17
SPRING EXTENSION HUS-532409616
...
9
PULLEY HUS-532163939
...
15
THRUST WASHER HUS-532057079
...
36
SHAFT.ASM.FRONT.TORQUE.BZP. HUS-532407175
...
37
RETAINER.FRONT.SHAFT HUS-532161463
...
25
PAWL.DRIVE.ETCHED HUS-532170011
...
5
COVER.DRIVE.21.RWGD.MO HUS-532400783
...
19
KNOB.S/P.RWGD.EXT.ERGO.GREY HUS-532189808
...
29
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
6
SCREW HUS-532750634
...
13
TRANSMISSION.21.RWGD.FRANCE HUS-532188295
...
1
CABLE.DRIVE.21.RWGD. HUS-532161587
...
42
WASHER.ZINC.PLATED HUS-819572216
...
4
SCREW.HEX.HEAD.WASHER.10-16 HUS-532083816
...
24
SCREW HUS-532057808
...
2
BAIL.CONT.DR.21.RWGD.BLACK HUS-532161473
...
14
PIN.SPRING.THRUST HUS-532145354
...
11
Screw, Hex Washer Head #10-24 x .668 HUS-817541011
...
40
WHEEL.8X1.75.CF5SPK.RAD.BLACK HUS-532435276
...
16
KIT.ROD.CONNECTING.REPL.161584 HUS-532414284
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
22
BEARING, BALL HUS-532169911
...
12
SPRING HUS-532075192
...
10
BELT GUIDE HUS-532164553
...
20
E-RING HUS-812000022
...
26
PINION.DRIVE.WALK HUS-532166450
...
21
BEARING SUPPORT.ASM HUS-532169920
...
8
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
23
RETAINER DRIVE ASM. STMP. HUS-532161118
...
41
CAP.HUB.ARC.SPOKE.8".LP HUS-532150182
...
18
SPRING, SELECTOR HUS-532160477
...
45
WASHER.BELLEVILLE (3 2 LB) HUS-532062335
...
7
V-BELT HUS-532160816
...
28
E-RING 7/16 RE HUS-812000058
...
38
SCREW HUS-532163409
...
44
Washers HUS-596040101
...
35
SHAFT.ASM.REAR.TORQUE. HUS-532160785
...
46
WASHER HUS-532088118
...
34
KIT.O-RING/WASHER HUS-532428450
...
30
WASHER FLUT HUS-532067725
...
3
BRKT, DOWNSTOP (RH) HUS-532161478
