Husqvarna R320 AWD - 967291501 (2015) Riders

Model: R320 AWD - 967291501 (2015)

Back To Assemblies

Save Part Not Listed?
product name

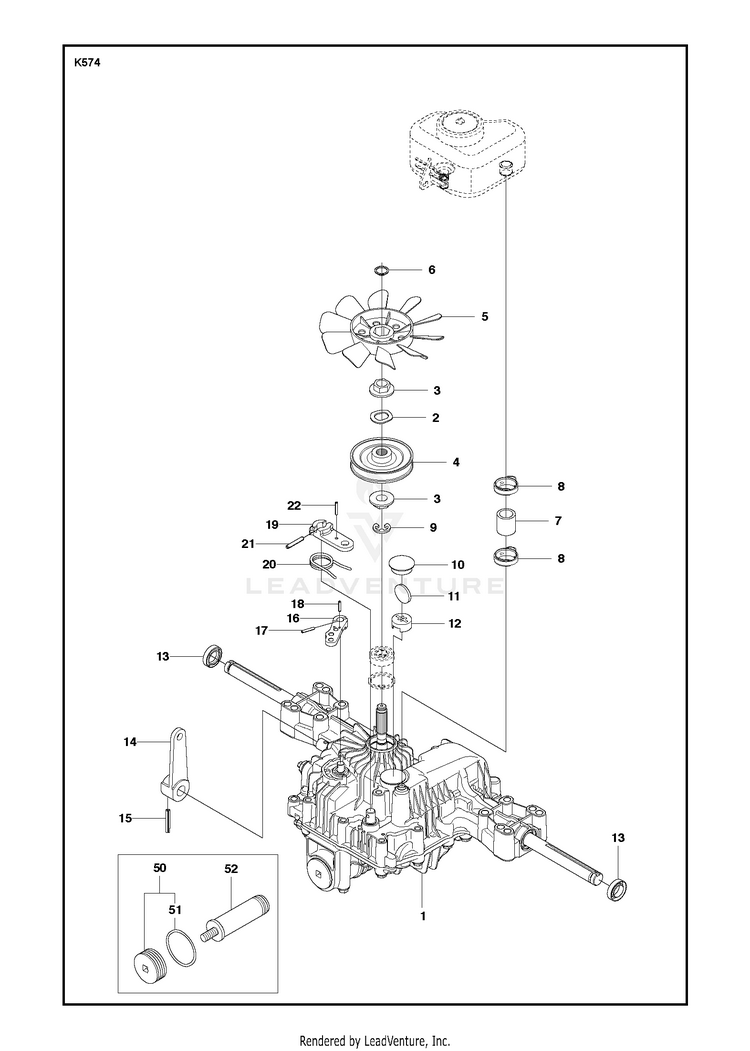

TRANSMISSION 2

...
...
21
PIN HUS-535402840
...
5
FAN.BLACK.1A646083070 HUS-583350101
...
12
MAGNET HOLDER HUS-502452001
...
52
FILTER HUS-586666801
...
7
TUBE HUS-502451601
...
8
HOSE CLAMP 20-32 HUS-505131102
...
1
TRANSMISSION K574A HUS-590716801
...
15
PIN HUS-535402809
...
17
PIN HUS-535402816
...
2
WASHER ** HUS-506986501
...
19
ARM HUS-535402838
...
4
PULLEY B HUS-502451901
...
13
SEAL.19, 19216334280 HUS-583349301
...
6
RETAINING RING ** HUS-735311500
...
14
CONTROL LEVER HUS-502453201
...
11
MAGNET HUS-535402829
...
51
O-Rings HUS-574515201
...
16
ARM HUS-535402817
...
10
PLUG HUS-535402832
...
9
CLIP HUS-535402807
...
50
CAP KIT HUS-574515101
...
3
SLEEVE HUS-506986601
...
20
RETURN SPRING HUS-535402839
...
22
PIN HUS-535402841
...
18
PIN HUS-535402833
