Husqvarna R320 AWD - 967291501 (2015) Riders

Model: R320 AWD - 967291501 (2015)

Back To Assemblies

Save Part Not Listed?
product name

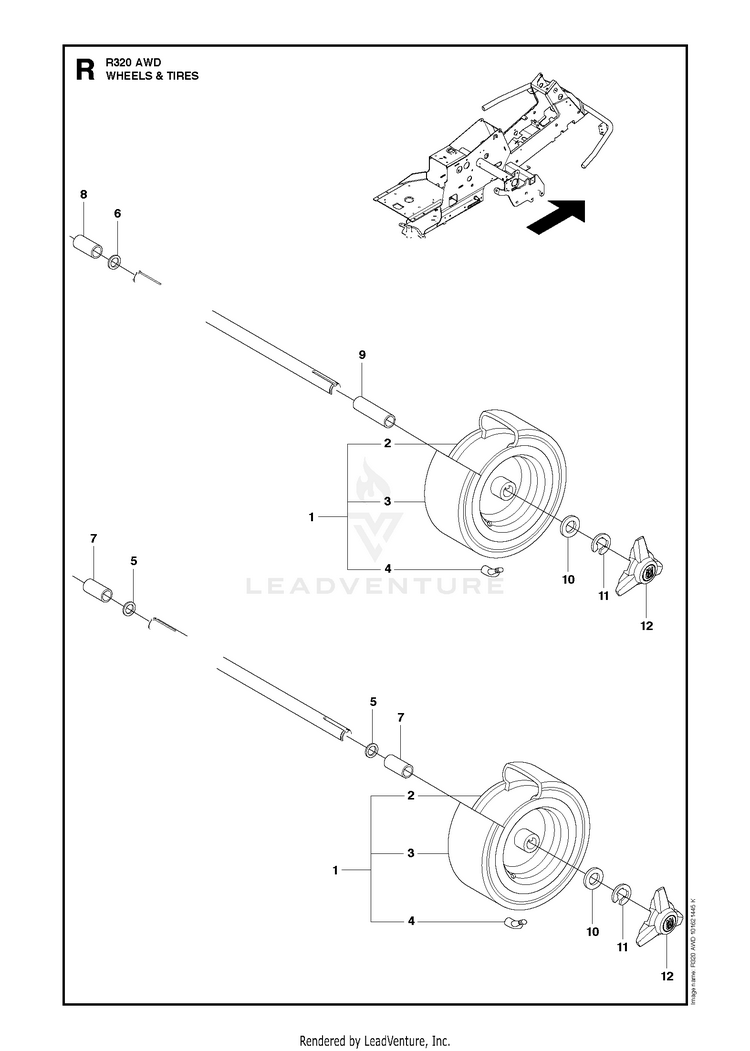

WHEELS & TIRES

...
...
11
RETAINING RING HUS-506899001
...
2
RIM HUS-523034801
...
1
WHEEL HUS-523012602
...
5
WASHER HUS-506504803
...
10
WASHER HUS-506504805
...
4
VALVE HUS-506574301
...
8
SLEEVE HUS-544132601
...
7
SPACE SLEEVE HUS-506596203
...
3
TIRE HUS-535460001
...
9
SLEEVE HUS-544132602
...
12
HUB CAP HUS-544353501
...
6
WASHER HUS-506945801
