Husqvarna R320 AWD - 967291501 (2015) Riders

Model: R320 AWD - 967291501 (2015)

Back To Assemblies

Save Part Not Listed?
product name

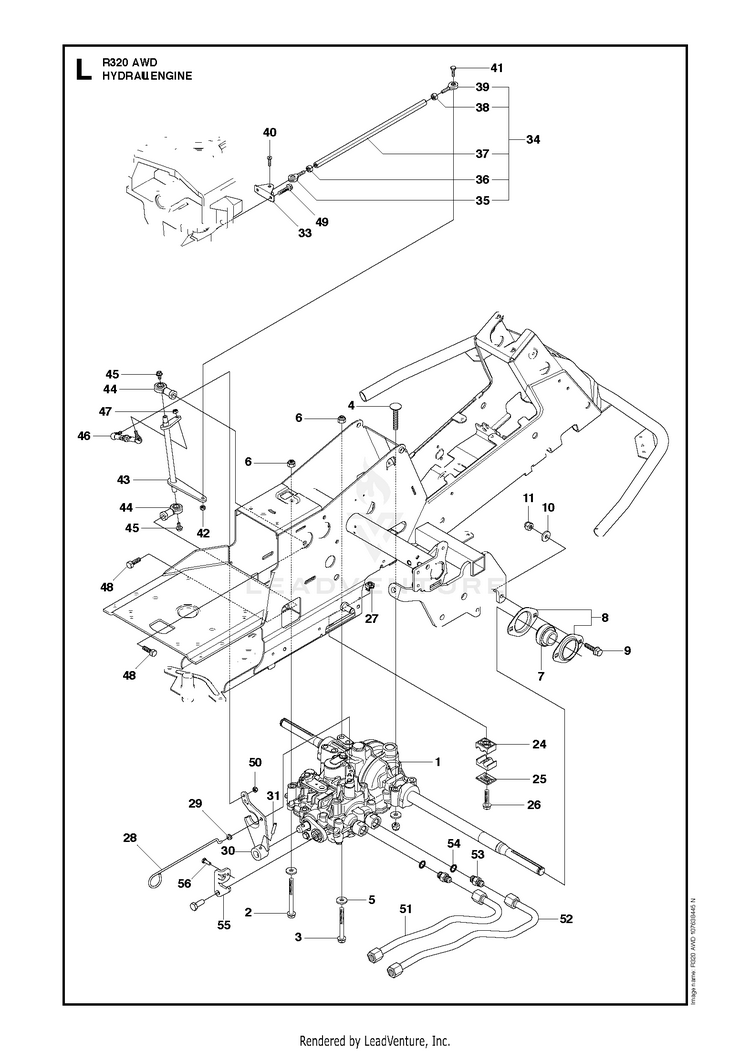

HYDRAULIC PUMP - MOTOR

...
...
3
SCREW HUS-725246451
...
54
O-RING HUS-505451101
...
34
NEEDS DESCRIPTION HUS-593959403
...
1
TRANSMISSION SWE HUS-575484301
...
40
SCREW HUS-544841701
...
33
BRACKET HUS-535492802
...
39
LINK HUS-535486601
...
38
NUT HUS-731231601
...
47
LOCKNUT M6 HUS-732211601
...
43
LEVER HUS-535497402
...
6
LOCKNUT M8 HUS-732211801
...
42
LOCKNUT M6 HUS-732211601
...
30
LEVER HUS-578291901
...
44
LINK HUS-506951701
...
2
Hex Bolt HUS-725246751
...
10
WASHER BRB 8.4X17 HUS-734116401
...
35
LINK HUS-535486602
...
27
CAGE NUT HUS-544811701
...
48
Screw M10x25 HUS-725249371
...
7
BEARING HUS-544008902
...
8
BEARING HOUSING HUS-544009002
...
56
SCREW EHHFM HUS-535475212
...
41
SCREW HUS-725237071
...
36
NUT HUS-503221018
...
51
HYDRAULIC PIPE HUS-544808001
...
26
SCREW EHHFM HUS-506570107
...
31
PIN HUS-721434701
...
55
BRACKET HUS-578047801
...
11
LOCKNUT M8 HUS-732211801
...
24
PIPE CLAMP HUS-544373302
...
9
BOLT HUS-506597401
...
50
LOCKNUT M6 HUS-732211601
...
28
ARM HUS-535499701
...
4
SCREW HUS-535423803
...
46
ADJUSTING ROD HUS-544441901
...
29
FUEL TANK BUSHING HUS-503735801
...
52
HYDRAULIC PIPE HUS-544807901
...
49
SCREW HUS-725236651
...
45
SCREW EHHFM HUS-535475212
...
53
PIPE FITTING HUS-535426806
...
5
WASHER BRB 8.4X17 HUS-734116401
...
37
ROD HUS-535486503
...
25
COVER PLATE HUS-544373802
