Husqvarna R320 AWD - 967291501 (2015) Riders

Model: R320 AWD - 967291501 (2015)

Back To Assemblies

Save Part Not Listed?
product name

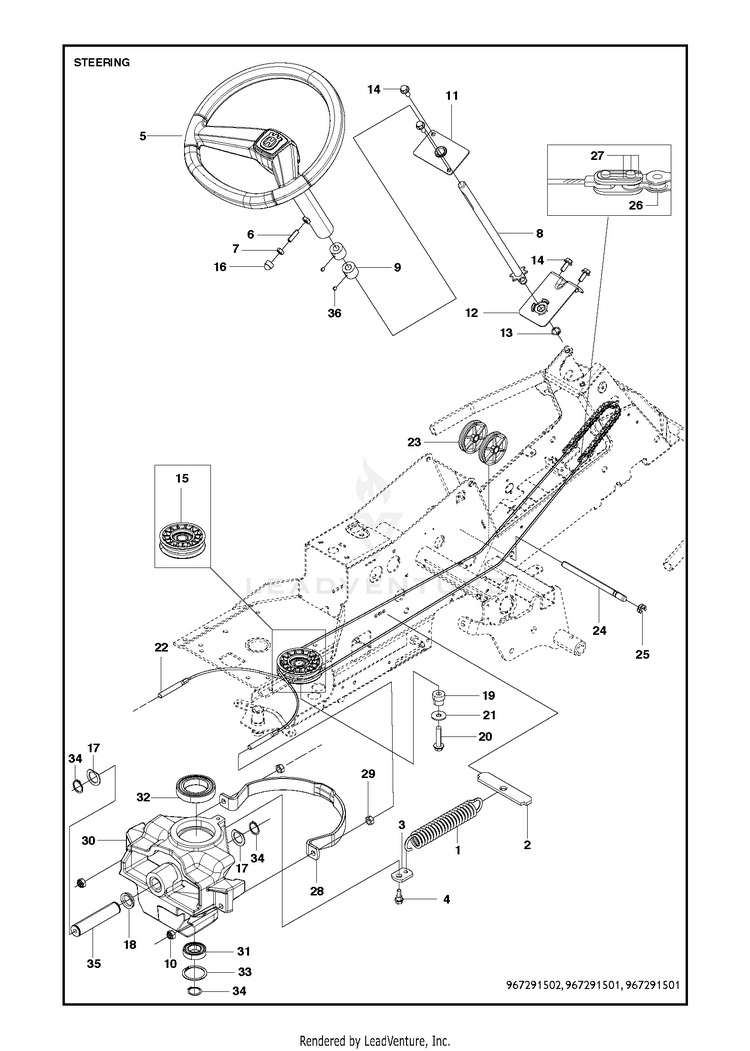

STEERING

...
...
31
Ball Bearing 6005-2rs HUS-738210504
...
21
WASHER HUS-734117441
...
36
Screw HUS-728844305
...
32
BALL BEARING 6010 2RS1 HUS-738211004
...
34
RETAINING RING SGA 25 HUS-735312600
...
16
PROTECTIVE COVER HUS-544433201
...
2
Brackets HUS-590735401
...
20
COLLAR SCREW HUS-506675403
...
1
SPRING HUS-506671901
...
17
WASHER HUS-506773401
...
15
PULLEY HUS-576492501
...
6
SCREW HUS-728745505
...
27
LINK HUS-506554701
...
26
STEERING CHAIN HUS-506554601
...
3
CONNECTOR HUS-506670801
...
12
BRACKET STEERING ROD ASSY HUS-583899701
...
4
BOLT HUS-506597401
...
7
NUT HUS-731231801
...
8
Steering HUS-583899901
...
25
RETAINING RING HUS-735311420
...
23
ROLLER HUS-506522401
...
28
WIRE GUIDE HUS-544427301
...
33
CIRCLIP SGH 47 HUS-735314010
...
10
NUT HUS-732212001
...
19
HUS-576487301
...
24
SHAFT HUS-506539404
...
13
RETAINING RING SGA 15 HUS-735311700
...
29
Nut HUS-731232001
...
30
SPINDLE HUS-577659301
...
22
WIRE ASSY HUS-501604804
...
18
V-RING HUS-740681421
...
14
BOLT HUS-506570104
...
35
SHAFT HUS-506985901
...
9
DRIVER STEERING WHEEL HUS-587080901
...
5
STEERING WHEEL HUS-577960402
...
11
BRACKET STEERING ASSY WITH BUS HUS-584155601
