Husqvarna R320 AWD - 967291501 (2015) Riders

Model: R320 AWD - 967291501 (2015)

Back To Assemblies

Save Part Not Listed?
product name

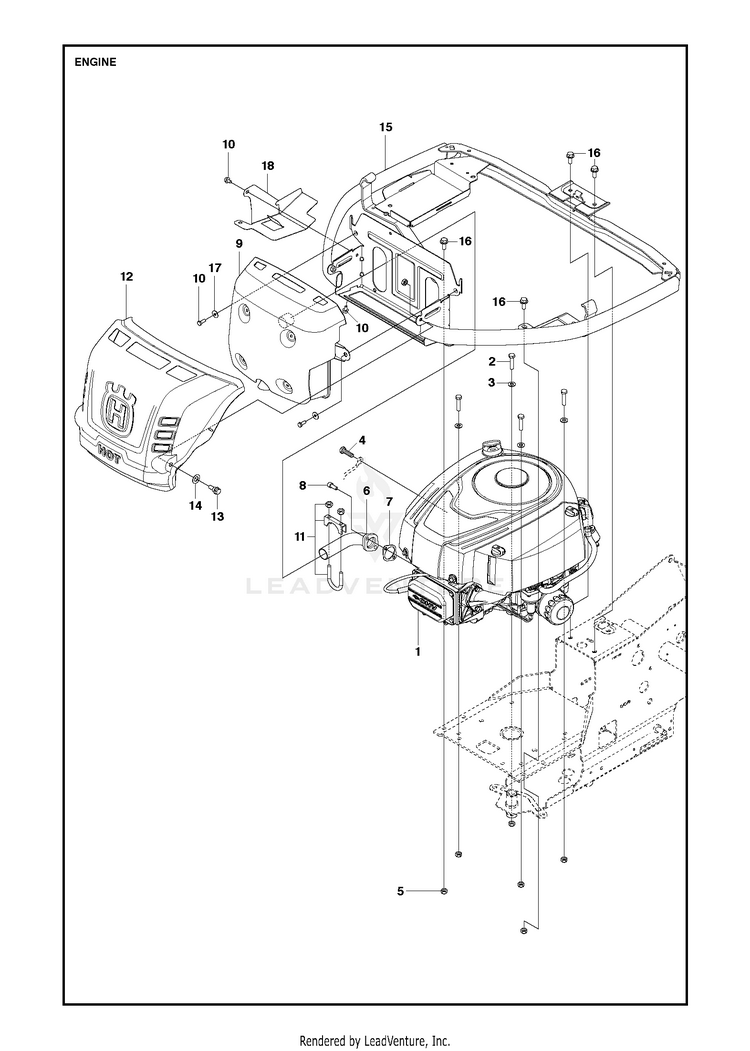

ENGINE

...
...
2
SCREW HUS-725245751
...
6
HUS-578054801
...
14
SPRINGWASHER HUS-506839401
...
18
NEEDS DESCRIPTION HUS-579529302
...
3
WASHER BRB 8.4X17 HUS-734116401
...
11
CLAMP ASSY EXHAUST HUS-501152201
...
4
HUS-506556302
...
7
FLANGE HUS-506914501
...
12
HEAT SHIELD HUS-580991301
...
9
MUFFLER HUS-577813601
...
17
WASHER - 26X6.5X1.6 HUS-734115441
...
16
BOLT HUS-506570104
...
1
HUS-578327101
...
10
SCREW HUS-725236461
...
5
LOCKNUT M8 HUS-732211801
...
13
BOLT HUS-506597401
...
15
ENGINE FRAME HUS-577849101
...
8
BOLT HUS-506556301
