Husqvarna R320 AWD - 967291501 (2015) Riders

Model: R320 AWD - 967291501 (2015)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

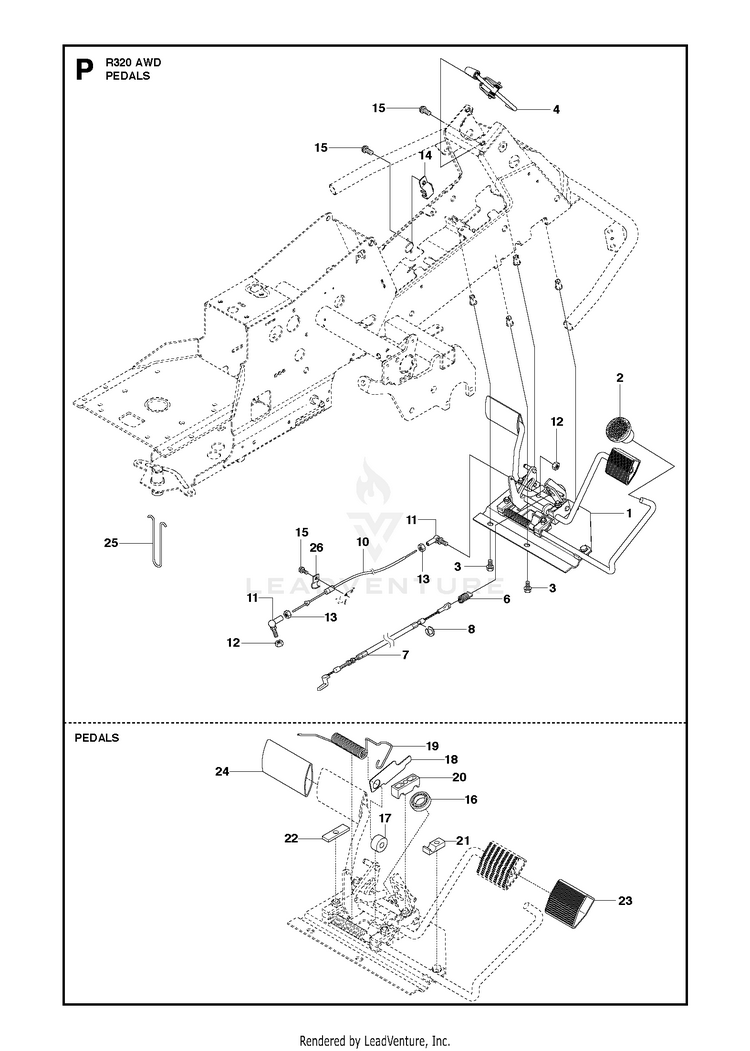

PEDALS

...
...
8
E-RING 5 HUS-735310920
...
14
BRACKET HUS-522430801
...
12
LOCKNUT M5 HUS-732211401
...
15
SCREW HUS-725236461
...
20
PEDAL SHAFT CLAMP HUS-506506501
...
26
CLAMP HUS-506566501
...
4
BRAKE LEVER ASSY HUS-544403101
...
17
ROLLER HUS-535459901
...
3
BOLT HUS-506570104
...
6
SPRING HUS-506946301
...
22
PLATE HUS-506804101
...
24
PEDAL RUBBER L = 102MM HUS-586966402
...
13
NUT HUS-731231401
...
10
CONTROL CABLE HUS-574411202
...
23
PEDAL RUBBER HUS-586966401
...
2
KNOB, THREADED HUS-586727401
...
1
PEDAL PLATE ASSY HYDROSTATIC K HUS-583951401
...
18
PLATE HUS-535459601
...
11
CONNECTOR, BALL JOINT HUS-578776801
...
7
BRAKE WIRE HUS-576712101
...
16
BALL BEARING 6002-2RS1 HUS-738210204
...
19
SPRING HUS-535459501
...
21
SUPPORT HUS-506954101
...
25
CABLE HOLDER HUS-506576402
